Bus Stop Kerb System

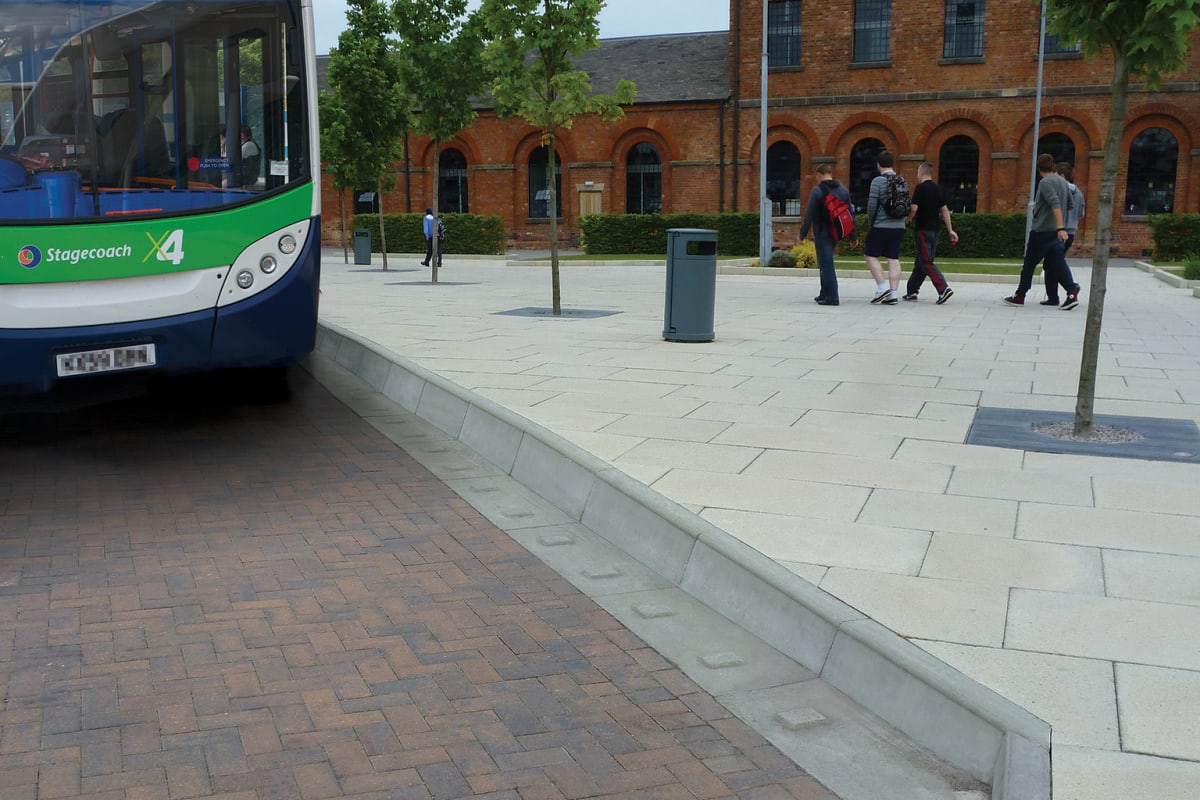

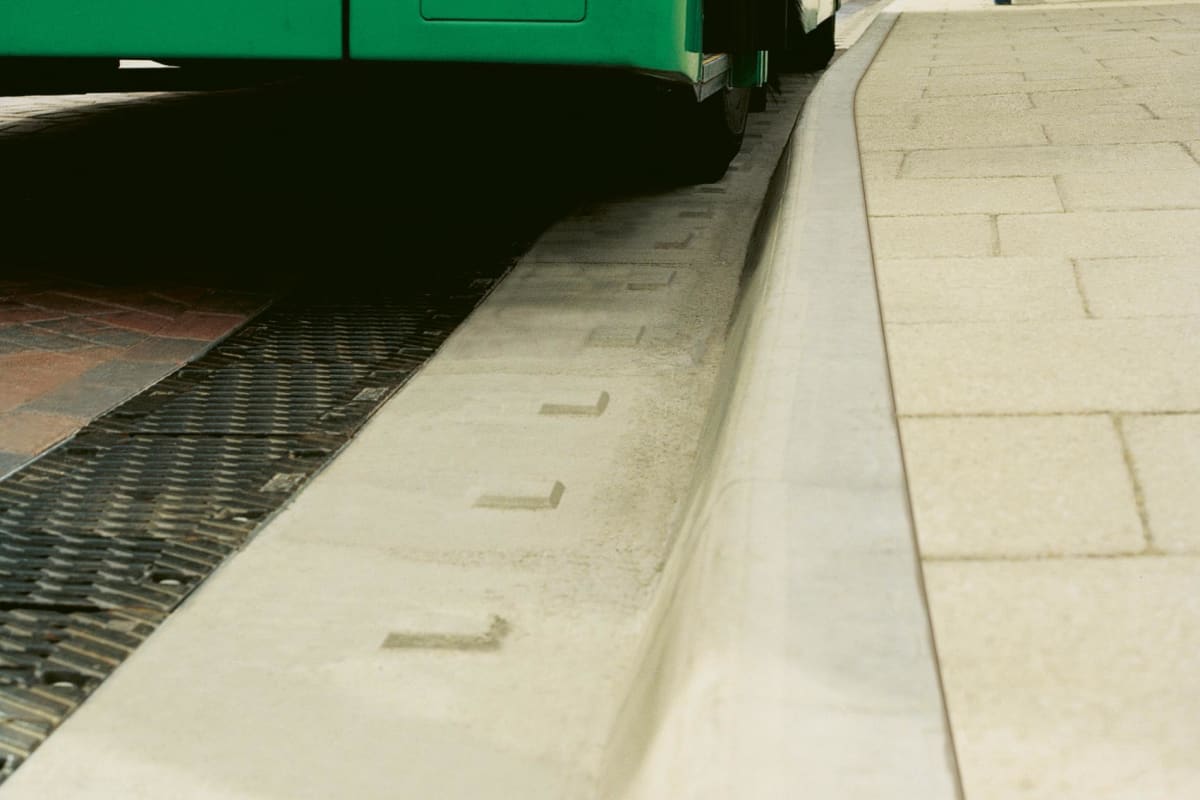

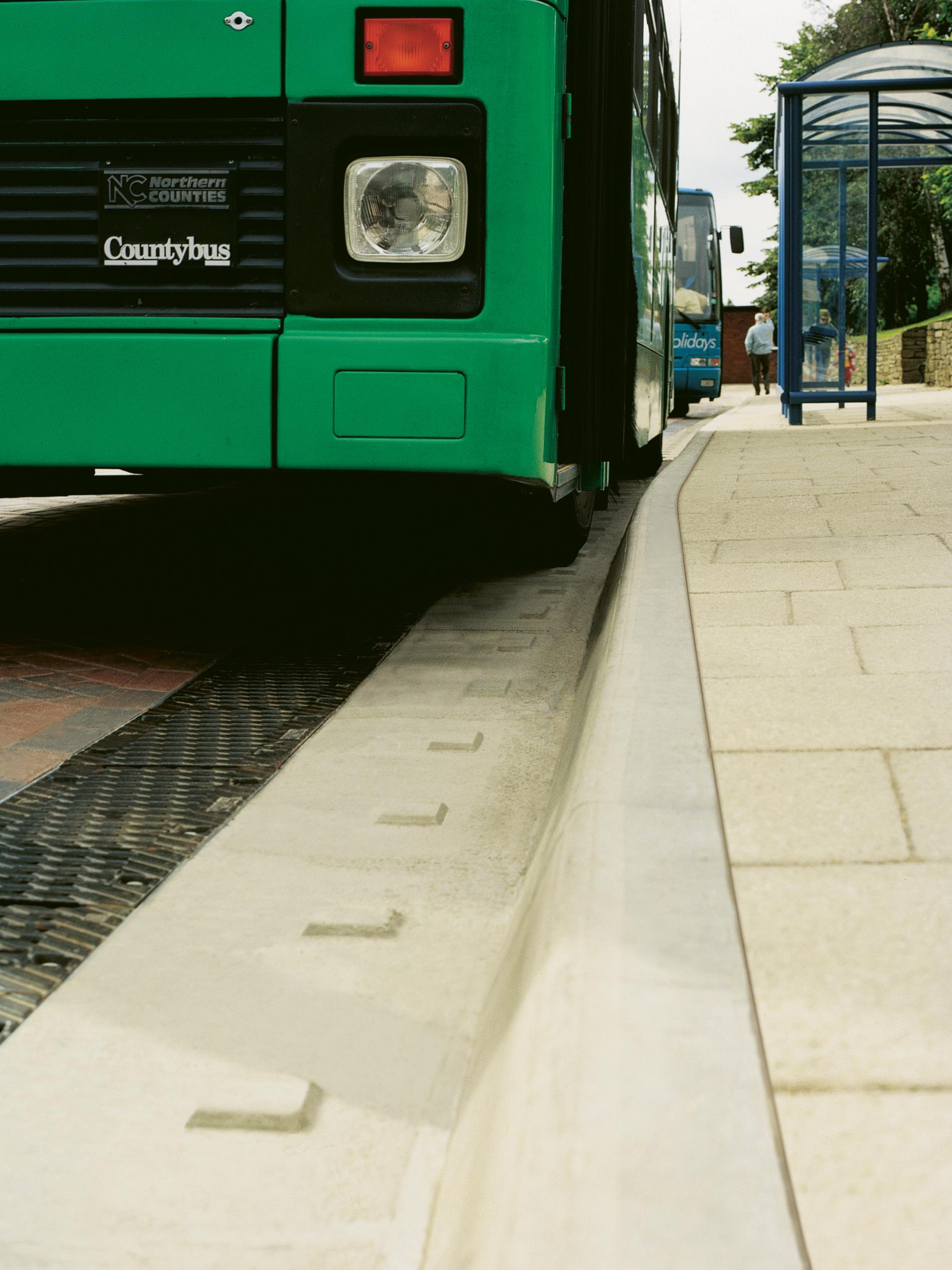

Marshalls’ Bus Stop Kerb is a smooth, angle-faced kerb with the option of channel usage. The channel unit includes a rumble strip, enabling the driver to position the vehicle as close to the kerb as possible. This two-piece system has been designed to provide pedestrians with safe and easy access to buses and similar transportation.
The smooth, angle-faced kerb can be installed at a variety of heights to allow for even the lowest of bus steps. Due to the kerb system construction, varied upstands of between 100-250mm can be achieved for different entry levels of public transport vehicles.
Marshalls’ bus stop kerbs have users in mind, while at the same time being designed to tolerate bus wheel impact, meaning you can be confident of their durability.y.
- Durable and versatile concrete bus stop kerb system
- Can be installed at heights of 100-200mm
- Optional channel unit with rumble strip
- Designed to withstand wheel impact
Price Range
- £
- £
- £
NBSPlus Codes
Q10 112
Q10 10
Q10 510
Q10 110
Carbon Footprint
From 10 kg CO2 per lin m
Technical Downloads (9)
- bus stop kerb datasheet Download bus stop kerb datasheet
- bus stop channel datasheet Download bus stop channel datasheet
Certifications, Accreditations & Credentials
Datasheets
- bus stop kerb datasheet Download bus stop kerb datasheet
- bus stop channel datasheet Download bus stop channel datasheet
- bus stop 200 drop kerb lh datasheet Download bus stop 200 drop kerb lh datasheet
- bus stop 200 drop kerb rh datasheet Download bus stop 200 drop kerb rh datasheet
- bus stop 180 drop kerb lh datasheet Download bus stop 180 drop kerb lh datasheet
- bus stop 180 drop kerb rh datasheet Download bus stop 180 drop kerb rh datasheet
- bus stop 160 drop kerb lh datasheet Download bus stop 160 drop kerb lh datasheet
- bus stop 160 drop kerb rh datasheet Download bus stop 160 drop kerb rh datasheet
NBS
- bus stop kerb and channel Download bus stop kerb and channel
Product Details
| Product Name | id | Face Length (mm) | Height (mm) | Width (mm) | Approx Unit Weight (kg) | Finish | Made to Stock / Made to Order | Carbon Footprint |
|---|---|---|---|---|---|---|---|---|
| Bus Stop Kerb | RK9400100 | 1000 | 380 | 240 | 190 | Smooth | Made To Stock | 15 kg CO2 lin m |
| Bus Stop Channel | RK9400200 | 1000 | 180 | 270 | 140 | Smooth | Made To Order | 13 kg CO2 lin m |
| Bus Stop 200 Drop Kerb LH | RK9420300 | 1000 | 380 | 245 | 110 | Smooth | Made To Order | 12 kg CO2 lin m |
| Bus Stop 200 Drop Kerb RH | RK9420310 | 1000 | 380 | 245 | 110 | Smooth | Made To Order | 12 kg CO2 lin m |
| Bus Stop 180 Drop Kerb LH | RK9420400 | 734 | 360 | 228 | 100 | Smooth | Made To Order | 11 kg CO2 lin m |
| Bus Stop 180 Drop Kerb RH | RK9420410 | 734 | 360 | 228 | 100 | Smooth | Made To Order | 11 kg CO2 lin m |
| Bus Stop 160 Drop Kerb LH | RK9420500 | 472 | 340 | 125 | 90 | Smooth | Made To Order | 10 kg CO2 lin m |
| Bus Stop 160 Drop Kerb RH | RK9420510 | 472 | 340 | 125 | 90 | Smooth | Made To Order | 10 kg CO2 lin m |
Made to stock: Item is in stock and available for delivery.
Made to order: Item will be manufactured when the order has been placed, lead times vary dependent on product.
