Coda Cycle Stand

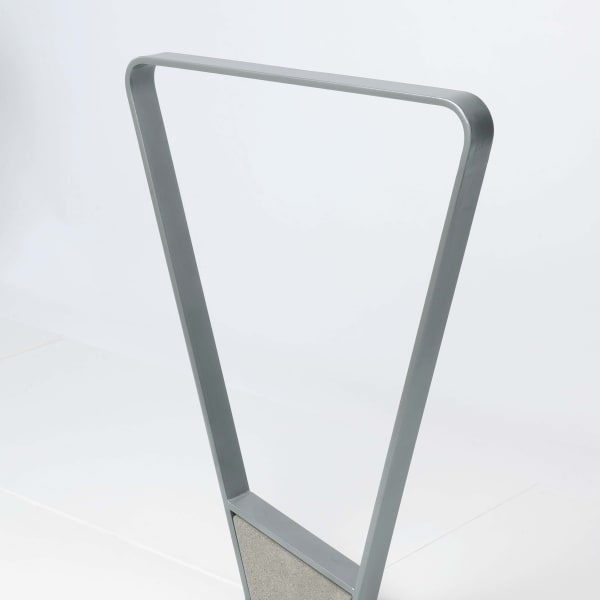

Marshalls' Coda Cycle Stand, designed in collaboration with Alex Lifschutz and team, was developed to provide a modern design classic to any urban project. Part of the larger Coda range, the cycle stand works with other components to aid visual consistence. Manufactured in BS EN1461 galvanised steel for minimal maintenance, the Coda Cycle Stand is able to withstand the elements and is protected against erosion. A wet cast etched concrete base provides added durability and longevity. The Coda Cycle Stand is available with the signature Coda Slash, a two-tone contrasting colour detail, which aids DDA compliance and masks low-level street dirt. A factory-applied ProtectGuard coating protects against graffiti, dirt and staining, limits chewing gum adhesion, moss and lichen growth and enables easier cleaning.The galvanised steel elements of the cycle stand are painted in Grey Aluminium to complement the rest of the Coda range, while the concrete elements are available in three colour options - Silver Grey, Mid Grey and Anthracite.Choose from root-fixed or sub surface mounted installation.
- Part of the Coda Collection range
- Manufactured from galvanised steel
- Low maintenance and durable
- Concrete elements available in 3 colour options
Price Range
- £
- £
- £
NBSPlus Codes
Q50 Site/street furniture/equipment
Fixing Method
Root FixSub Surface MountSurface Mount
Carbon Footprint
Available on RequestEthical Risk Index
This Radar diagram illustrates the level of ethical risk associated with a specific stone. Ethical risk is plotted against the 10 ten measures of the ERI, with each value drawn from reports produced by independent ethical auditors, engaged by Marshalls to provide non-biased and honest reporting into levels of risk in that supply chain.
Each of the 10 measure is designed to recognise different and discrete sources of ethical risk. This produces a bespoke, fit for purpose framework designed specifically for the requirements of the stone industry. The radar diagram itself also compares the Marshalls supply chain to the wider industry in that stone, giving users a working comparison of Marshalls supply chain to the industry average, in the opinion of the auditor.
- Modern Slavery Act Awareness
- Supply Chain Visibility
- Income and Employment Security
- Health & Safety
- Employment Freely Chosen
- Empowerment
- Environmental
- Governance
- Corruption and Bribery
- Coda Cycle Stand
- Cluster Score
Technical Downloads (5)
- Marshalls Coda Cycle stand Download Marshalls Coda Cycle stand Add to Project Marshalls Coda Cycle stand
- Coda Coda Cycle Stand Download Coda Coda Cycle Stand Add to Project Coda Coda Cycle Stand
NBSPlus
Add All to Project- Coda Coda Cycle Stand Download Coda Coda Cycle Stand Add to Project Coda Coda Cycle Stand
Sketch Up Files
Add All to Project- Marshalls Coda Cycle stand Download Marshalls Coda Cycle stand Add to Project Marshalls Coda Cycle stand
Technical Documents
Add All to Project- street furniture maintenance guide Download street furniture maintenance guide Add to Project street furniture maintenance guide
CAD Details
Add All to Project- coda cycle stand Download coda cycle stand Add to Project coda cycle stand
CAD Files
Add All to Project- coda cycle stand Download coda cycle stand Add to Project coda cycle stand
Product Details
| Product Name | Length (mm) | Width (mm) | Height Above Ground (mm) | Overall Height (mm) | Fixing Method | Body/Frame Colour | Body/Frame Material | Bike Capacity |
|---|---|---|---|---|---|---|---|---|
| Coda Cycle Stand Root Fixed | 630 | 50 | 800 | 1200 | Root Fixed | RAL 9007 ‘Grey Aluminium Silver Grey, Mid Grey, Anthracite | Mild Steel Concrete | 2 Bicycles |
| Coda Cycle Stand Surface Mount | 630 | 50 | 800 | 800 | Surface Mount | RAL 9007 ‘Grey Aluminium Silver Grey, Mid Grey, Anthracite | Mild Steel Concrete | 2 Bicycles |
| Coda Cycle Stand Sub Surface Mount | 630 | 50 | 800 | 1200 | Sub Surface Mount | RAL 9007 ‘Grey Aluminium Silver Grey, Mid Grey, Anthracite | Mild Steel Concrete | 2 Bicycles |
