Geo Cycle Stand

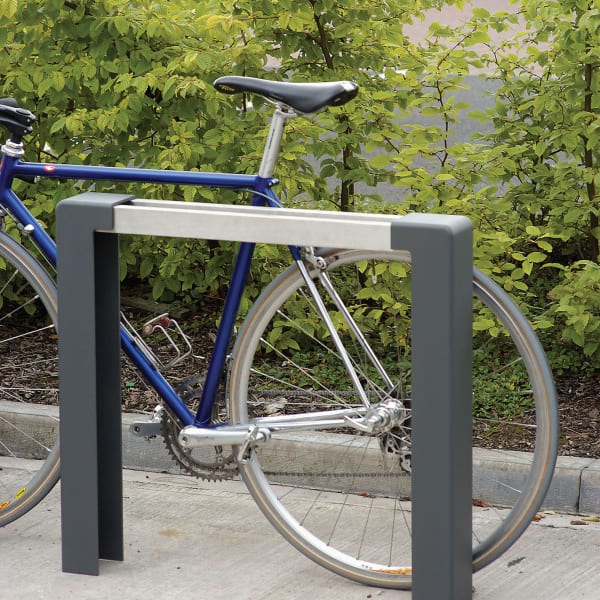

Geo hoop cycle stands are made entirely of 316 grade stainless steel with a bead blasted finish on the lower half to ensure minimum aesthetic degradation over years. The top element of the rack is brushed stainless steel for visual cohesion with the rest of the Geo range. The stand can be customised with tapping rails for the visual impaired or different painted finishes to suit the streetscape. The rack offers a robust level of security and locking positions for all types of cycle.

Price Range

  • £
  • £
  • £

NBSPlus Codes

Q50 Site/street furniture/equipment

Division

Contact

01422 312993

landscapeprotection@marshalls.co.uk

Certifications, Accreditations & Credentials

  • Accreditation Made in Britain Logo
  • Accreditation Marshalls certified ISO 9001 quality management systems FM 00004 Logo
  • Accreditation Marshalls certified ISO 14001 environmental management EMS 56194 Logo
  • Accreditation Marshalls certified ISO 45001 occupational health and safety management OHS 69609 Logo
  • Accreditation GlobalCompact Logo
  • Accreditation 2019 superbrands logo Logo
  • Accreditation Living wage Logo
  • Accreditation Fair Tax logo Logo
  • Accreditation Business in the community logo Logo
Product Name Length (mm) Width (mm) Height Above Ground (mm) Overall Height (mm) Fixing Method Weight (kg)
Geo Hoop Cycle Stand 1200 Root Fixed 1200 51 850 1250 Root Fixed 14
Geo Hoop Cycle Stand 1200 Sub Surface Mount 1200 51 850 Sub Surface Mount 14
Geo Hoop Cycle Stand 1500 Sub Surface Mount 1500 51 850 1250 Sub Surface Mount 15
Geo Hoop Cycle Stand 1500 Root Fixed 1500 51 850 Root Fixed 15
Geo Hoop Cycle Stand 600 Root Fixed 600 51 850 1250 Root Fixed 10
Geo Hoop Cycle Stand 600 Sub Surface Mount 600 51 850 Sub Surface Mount 10
Geo Hoop Cycle Stand 900 Root Fixed 900 51 850 1250 Root Fixed 12.5
Geo Hoop Cycle Stand 900 Sub Surface Mount 900 51 850 Sub Surface Mount 12.5
Geo Cycle Stand BIM Model

Geo Cycle Stand BIM Model

At Marshalls we work alongside appropriate guidelines in which we are able to provide high quality 3D objects of our products that contain rich data to satisfy that information required by our clients.

We strive to improve the relationship with stakeholders and the BIM process enables us to share the relevant information.

  • Our BIM models are available to download directly from our BIM library.
  • We have a range of models available in AutoDesk Revit format including CoBie, IFC and NBS data.
View BIM Library
