Drexus 100 Natural Stone Pave Drain
Drexus 100 Natural Stone Pave Drain is a low capacity Linear Drainage system. offers a unique aesthetic for linear drainage, suitable for any prestigious public realm development.
Through our heritage in natural stone we have developed a drainage solution to complement our most popular natural stone paving products.

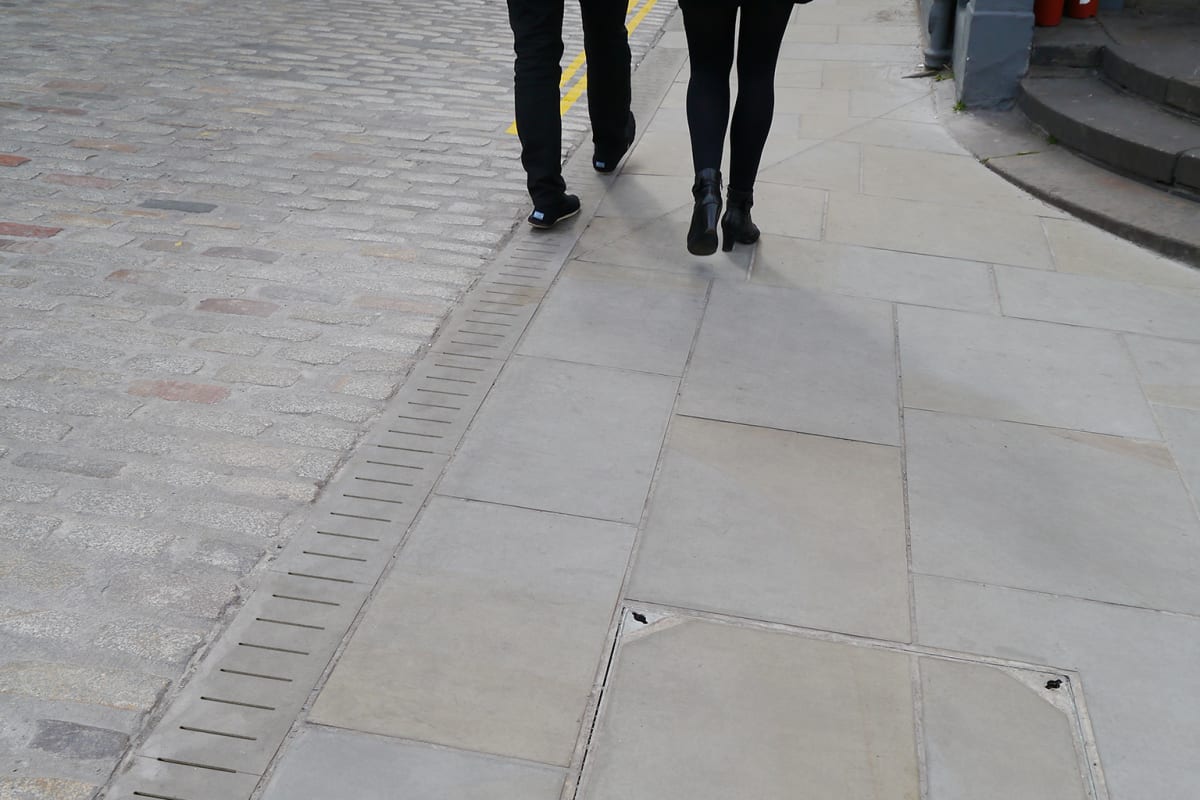

Drexus 100 Natural Stone Pave Drain is available in a variety of stones including Mid Grey Granite, Silver Grey Granite and Scoutmoor Yorkstone.
Marshalls Civils and Drainage Drexus 100 Natural Stone Pave Drain is designed to provide the Landscape Architect with choice and flexibility for an aesthetically pleasing linear drainage. For appropriate bases and channels please see Drexus 100.
Price Range
- £
- £
- £
Maximum Loading Classification i✕This is the maximum loading for the product.
However this is subject to using the appropriate installation method, bond pattern and the sub-base design.
For tailored support with a pavement design, please contact us:
grouptechnicalservices@marshalls.co.uk
✕This is the maximum loading for the product.
However this is subject to using the appropriate installation method, bond pattern and the sub-base design.
For tailored support with a pavement design, please contact us:
grouptechnicalservices@marshalls.co.uk
However this is subject to using the appropriate installation method, bond pattern and the sub-base design.
For tailored support with a pavement design, please contact us:
grouptechnicalservices@marshalls.co.uk
D400
NBSPlus Codes
Q10 180
Drainage Capacity
Low
Carbon Footprint
Available on RequestDivision
Contact
0345 302 0400
Technical Downloads (5)
- dop Download dop Add to Project dop
- A68 Drexus 100 Natural Stone Pave Drain Datasheet Download A68 Drexus 100 Natural Stone Pave Drain Datasheet Add to Project A68 Drexus 100 Natural Stone Pave Drain Datasheet
Certification Logos and Accreditations
Datasheets
Add All to Project- A68 Drexus 100 Natural Stone Pave Drain Datasheet Download A68 Drexus 100 Natural Stone Pave Drain Datasheet Add to Project A68 Drexus 100 Natural Stone Pave Drain Datasheet
NBSPlus
Add All to Project- Water Management Drexus Pave Drain Download Water Management Drexus Pave Drain Add to Project Water Management Drexus Pave Drain
CE Mark
Add All to ProjectMicrodrainage Models
Add All to Project- marshalls - microdrainage model Download marshalls - microdrainage model Add to Project marshalls - microdrainage model
CAD Details
Add All to Project- Drexus_Pave_Drain_Technical_Standards.dwg Download Drexus_Pave_Drain_Technical_Standards.dwg Add to Project Drexus_Pave_Drain_Technical_Standards.dwg
| Product Name | id | Length (mm) | Width (mm) | Depth (mm) | Commercial Units per Pack | Approx Pack Weight (kg) | Made to Stock / Made to Order | Height (mm) |
|---|---|---|---|---|---|---|---|---|
| 0/0 1000 No-rail Channel | DR5410150 | 1000 | 160 | 154 | Pallet packed for individual contracts | Maximum 1.7 tonnes | Made To Stock | 170 |
| 5/0 1000 No-rail Channel | DR5410250 | 1000 | 160 | 179 | Pallet packed for individual contracts | Maximum 1.7 tonnes | Made To Stock | 195 |
| 10/0 1000 No-rail Channel | DR5410350 | 1000 | 160 | 204 | Pallet packed for individual contracts | Maximum 1.7 tonnes | Made To Stock | 220 |
| 15/0 1000 No-rail Channel | DR5410450 | 1000 | 160 | 229 | Pallet packed for individual contracts | Maximum 1.7 tonnes | Made To Stock | 245 |
| 20/0 1000 No-rail Channel | DR5410550 | 1000 | 160 | 254 | Pallet packed for individual contracts | Maximum 1.7 tonnes | Made To Stock | 270 |
| 0/0 500 No-rail Channel | DR5415150 | 500 | 160 | 154 | Pallet packed for individual contracts | Maximum 1.7 tonnes | Made To Order | 170 |
| 5/0 500 No-rail Channel | DR5415250 | 500 | 160 | 179 | Pallet packed for individual contracts | Maximum 1.7 tonnes | Made To Order | 195 |
| 10/0 500 No-rail Channel | DR5415350 | 500 | 160 | 204 | Pallet packed for individual contracts | Maximum 1.7 tonnes | Made To Order | 220 |
| 15/0 500 No-rail Channel | DR5415450 | 500 | 160 | 229 | Pallet packed for individual contracts | Maximum 1.7 tonnes | Made To Order | 245 |
| 20/0 500 No-rail Channel | DR5415550 | 500 | 160 | 254 | Pallet packed for individual contracts | Maximum 1.7 tonnes | Made To Order | 270 |
| Product Name | id | Commercial Units per Pack | Approx Pack Weight (kg) | Made to Stock / Made to Order |
|---|---|---|---|---|
| 0/0 Channel End Cap | DR5432100 | Pallet packed for individual contracts | Maximum 1.7 tonnes | Made To Stock |
| 5/0 Channel End Cap | DR5432200 | Pallet packed for individual contracts | Maximum 1.7 tonnes | Made To Stock |
| 10/0 Channel End Cap | DR5432300 | Pallet packed for individual contracts | Maximum 1.7 tonnes | Made To Order |
| 15/0 Channel End Cap | DR5432400 | Pallet packed for individual contracts | Maximum 1.7 tonnes | Made To Order |
| 20/0 Channel End Cap | DR5432500 | Pallet packed for individual contracts | Maximum 1.7 tonnes | Made To Stock |
| 0/0 Cap Outlet | DR5435050 | Pallet packed for individual contracts | Maximum 1.7 tonnes | Made To Stock |
| 5/0 Cap Outlet | DR5435150 | Pallet packed for individual contracts | Maximum 1.7 tonnes | Made To Stock |
| 10/0 Cap Outlet | DR5435250 | Pallet packed for individual contracts | Maximum 1.7 tonnes | Made To Order |
| 15/0 Cap Outlet | DR5435350 | Pallet packed for individual contracts | Maximum 1.7 tonnes | Made To Order |
| 20/0 Cap Outlet | DR5435450 | Pallet packed for individual contracts | Maximum 1.7 tonnes | Made To Stock |
| Product Name | id | Length (mm) | Width (mm) | Commercial Units per Pack | Approx Pack Weight (kg) | Made to Stock / Made to Order | Height (mm) |
|---|---|---|---|---|---|---|---|
| Silver Grey Granite Top | DR5448400 | 500 | 160 | Pallet packed for individual contracts | Maximum 1.7 tonnes | Made To Order | 110 |
| Mid Grey Granite Top | DR5448500 | 500 | 160 | Pallet packed for individual contracts | Maximum 1.7 tonnes | Made To Order | 110 |
| Yorkstone Scoutmoor Natural Stone Top | DR5448600 | 500 | 160 | Pallet packed for individual contracts | Maximum 1.7 tonnes | Made To Order | 110 |
