Oversail Block
Ideal for use on station platforms, Marshalls' concrete Oversail Block Rails are an integral unit that works together with our range of concrete platform copings.

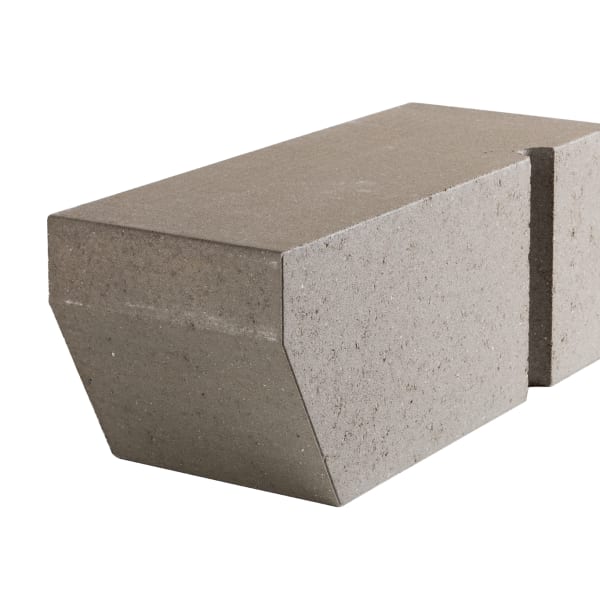

The design of the oversail block hugs the platform edge and allows the copings to hang over the edge of the railway or tube station platform. The block remains solid and stable when force is applied, due to a side notch which is aligned with the platform peg.
The natural-coloured blocks are 560 x 220 x 220mm and units weigh approximately 57kg, with 18 supplied per pack. A rear slot on the block is designed to help with installation and lifting into position, providing security and safety, and can be used in conjunction with platform edge tactile paving.
- Work with concrete platform copings
- Side notch prevents movement
- Rear notch aids installation and lifting
- Meets British Standards
Price Range
- £
- £
- £
Maximum Loading Classification i✕This is the maximum loading for the product.
However this is subject to using the appropriate installation method, bond pattern and the sub-base design.
For tailored support with a pavement design, please contact us:
grouptechnicalservices@marshalls.co.uk
However this is subject to using the appropriate installation method, bond pattern and the sub-base design.
For tailored support with a pavement design, please contact us:
grouptechnicalservices@marshalls.co.uk
Category 1 - Pedestrian and domestic driveways
Carbon Footprint
From 6.5 kg CO2 each
Technical Downloads (1)
- Oversail Block Datasheet Download Oversail Block Datasheet Add to Project Oversail Block Datasheet
Certification Logos and Accreditations
Datasheets
Add All to Project- Oversail Block Datasheet Download Oversail Block Datasheet Add to Project Oversail Block Datasheet
Product Details
| Product Name | id | Plan Size (mm) | Length (mm) | Width (mm) | Depth (mm) | Approx Unit Weight (kg) | Approx Pack Weight (kg) | Units Per Pack | Finish | Made to Stock / Made to Order | Carbon Footprint |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Oversail Block | CF3101350 | 220 x 560 | 560 | 220 | 220 | 57 | 1026 | 18 | Smooth Ground | Made To Order | 6.5 kg CO2 each |
Made to stock: Item is in stock and available for delivery.
Made to order: Item will be manufactured when the order has been placed, lead times vary dependent on product.
