Cast Stone Pier Caps

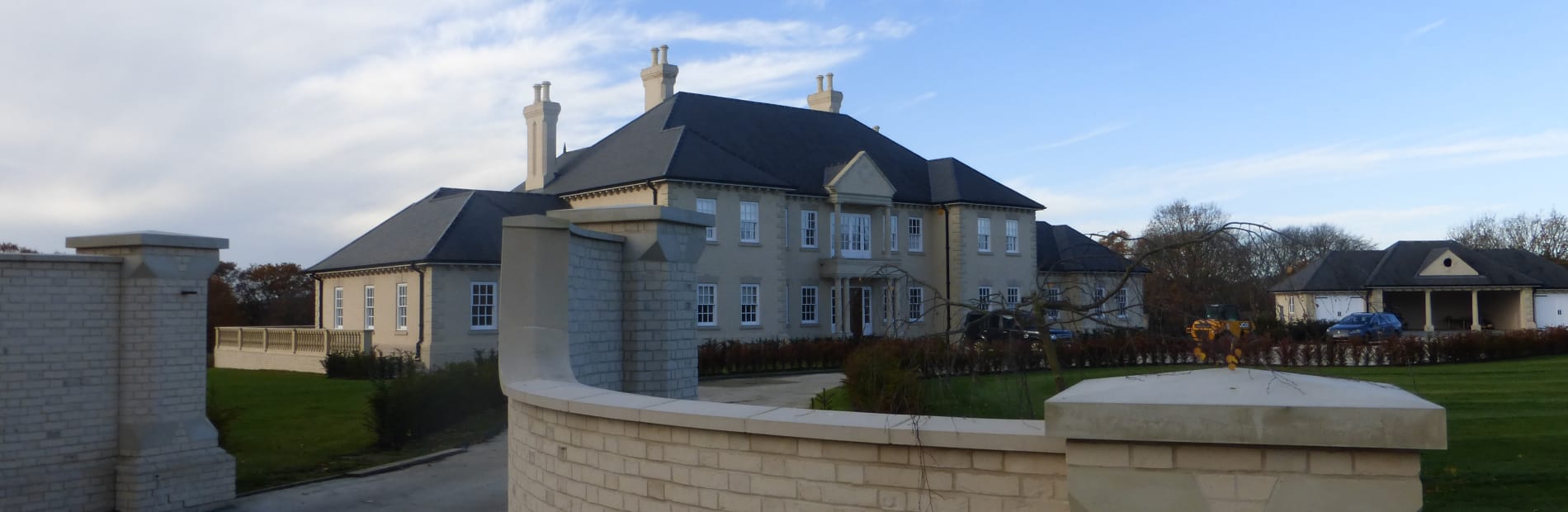

Pier caps are traditionally used as a finishing detail for walling piers. We offer Flat and Four-time weathered pier caps to suit most masonry built piers but other profiles and heights of pier caps are available on request through our bespoke service.
We are also able to cast our caps with a moulding detail or recess to take a sphere. Should you require specific information please contact one of our technical estimators who are all on hand to offer assistance.
- Pier caps require an overhang and will be cast with a drip.
- The cap size is determined by the masonry pier onto which the cap is to be set.
- Any of our pier caps can be supplied to incorporate a sphere.
- Other profiles and heights of pier caps are available on request.
|Product Name||Height (mm)||Height 2 (mm)||Weight (kg)|
|Pier Cap 305mm x 75mm||50||75||15|
|Pier Cap 305mm x 125mm||50||125||24|
|Pier Cap 420mm x 75mm||50||75||28|
|Pier Cap 420mm x 125mm||50||125||46|
|Pier Cap 530mm x 75mm||50||75||44|
|Pier Cap 530mm x 125mm||50||125||74|
|Pier Cap 675mm x 75mm||50||75||73|
|Pier Cap 675mm x 125mm||50||125||80|
|Pier Cap 690mm x 75mm||50||75||73|
|Pier Cap 690mm x 125mm||90||125||90|
|Pier Cap 765mm x 125mm||50||125||154|
