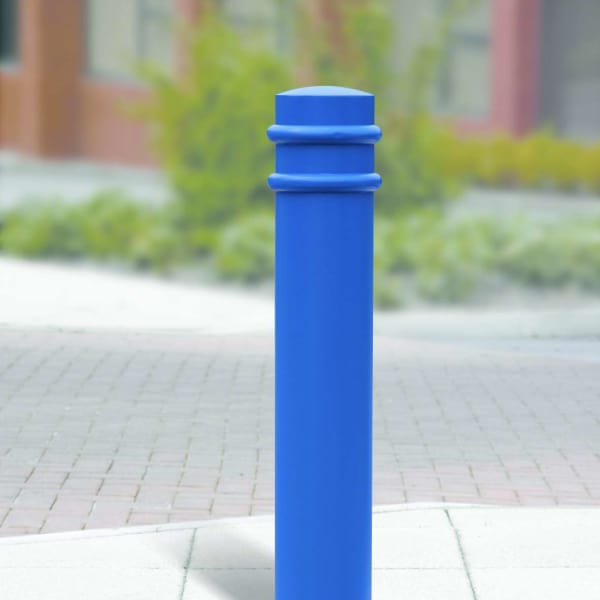

RB105 Bollard
The RB105 Bollard provides effective perimeter protection in any pedestrianised or trafficked area. It is available both as a standard model and as a specially reinforced anti-ram version, which features an internal steel joist. Featuring a semi-dome top and double rings, the RB105 is manufactured from galvanised steel and powder coated in RAL Black 9005 as standard. The bollard has 3 fixing options for temporary access or permanent positioning. As well as the standard root fixing, there is surface mount for where ground evacuation is not possible, or removable, which allows temporary vehicle access when necessary.
- Standard or anti-ram models
- Features optional chain connectors, hazard banding and flat cap
- 3 height options
- 4 diameter options
Price Range
- £
- £
- £
NBSPlus Codes
Q50 Site/street furniture/equipment
Carbon Footprint
Available on RequestTechnical Downloads (3)
- Bollards Steel Bollards R B105 Steel Bollard Download Bollards Steel Bollards R B105 Steel Bollard Add to Project Bollards Steel Bollards R B105 Steel Bollard
- street furniture maintenance guide Download street furniture maintenance guide Add to Project street furniture maintenance guide
rhino 105 steel bollard
Certification Logos and Accreditations
NBSPlus
Add All to Project- Bollards Steel Bollards R B105 Steel Bollard Download Bollards Steel Bollards R B105 Steel Bollard Add to Project Bollards Steel Bollards R B105 Steel Bollard
Technical Documents
Add All to Project- street furniture maintenance guide Download street furniture maintenance guide Add to Project street furniture maintenance guide
CAD Details
Add All to Project- rhino rb105 bollard Download rhino rb105 bollard Add to Project rhino rb105 bollard
Product Details
| Product Name | Material | Finish | Diameter (mm) | Length (mm) | Height Above Ground (mm) | Fixing Method | Weight (kg) | Reflective Tape Available | id |
|---|---|---|---|---|---|---|---|---|---|
| RB105 Bollard Anti Ram Ø114mm | Steel | Galvanised and Powder Coated | 114 | 1500 | 1000 | Anti Ram | 30 | Yes | RB105 Bollard Anti Ram Ø114mm |
| RB105 Bollard Anti Ram Ø139mm | Steel | Galvanised and Powder Coated | 139 | 1500 | 1000 | Anti Ram | 35 | Yes | RB105 Bollard Anti Ram Ø139mm |
| RB105 Bollard Anti Ram Ø168mm | Steel | Galvanised and Powder Coated | 168 | 1500 | 1000 | Anti Ram | 49 | Yes | RB105 Bollard Anti Ram Ø168mm |
| RB105 Bollard Anti Ram Ø194mm | Steel | Galvanised and Powder Coated | 194 | 1500 | 1000 | Anti Ram | 54 | Yes | RB105 Bollard Anti Ram Ø194mm |
| RB105 Bollard Removable Ø114mm | Steel | Galvanised and Powder Coated | 114 | 1500 | 1000 | Removable | 22 | Yes | RB105 Bollard Removable Ø114mm |
| RB105 Bollard Removable Ø139mm | Steel | Galvanised and Powder Coated | 139 | 1500 | 1000 | Removable | 29 | Yes | RB105 Bollard Removable Ø139mm |
| RB105 Bollard Removable Ø168mm | Steel | Galvanised and Powder Coated | 168 | 1500 | 1000 | Removable | 32 | Yes | RB105 Bollard Removable Ø168mm |
| RB105 Bollard Root Fixed Ø168mm | Steel | Galvanised and Powder Coated | 168 | 1500 | 1000 | Root Fixed | 35 | Yes | RB105 Bollard Root Fixed Diameter 168mm |
| RB105 Bollard Root Fixed Ø114mm | Steel | Galvanised and Powder Coated | 114 | 1500 | 1000 | Root Fixed | 23 | Yes | RB105 Bollard Root Fixed Ø114mm |
| RB105 Bollard Root Fixed Ø139mm | Steel | Galvanised and Powder Coated | 139 | 1500 | 1000 | Root Fixed | 29 | Yes | RB105 Bollard Root Fixed Ø139mm |
| RB105 Bollard Root Fixed Ø194mm | Steel | Galvanised and Powder Coated | 194 | 1500 | 1000 | Root Fixed | 40 | Yes | RB105 Bollard Root Fixed Ø194mm |
| RB105 Bollard Surface Mount Ø114mm | Steel | Galvanised and Powder Coated | 114 | 1000 | 1000 | Surface Mounted | 20 | Yes | RB105 Bollard Surface Mount Ø114mm |
| RB105 Bollard Surface Mount Ø139mm | Steel | Galvanised and Powder Coated | 139 | 1000 | 1000 | Surface Mounted | 22 | Yes | RB105 Bollard Surface Mount Ø139mm |
| RB105 Bollard Surface Mount Ø168mm | Steel | Galvanised and Powder Coated | 168 | 1000 | 1000 | Surface Mounted | 26 | Yes | RB105 Bollard Surface Mount Ø168mm |
| RB105 Bollard Surface Mount Ø194mm | Steel | Galvanised and Powder Coated | 194 | 1000 | 1000 | Surface Mounted | 32 | Yes | RB105 Bollard Surface Mount Ø194mm |
