Birco 100
Marshalls Civils & Drainage Birco 100 is a low-capacity linear drainage system suitable for a range of purposes across civic, commercial, rail and industrial projects.
Available in a variety of loading ratings up to F900, Birco 100 is made from high-quality pre-cast concrete, with heavy-grade rolled galvanised steel angles cast into the top of the channel walls to ensure strength in heavy loading applications. This ensures ultimate reliability and durability, whether it's to be deployed in areas of light or heavy traffic.
As well as functionality, Birco 100 offers a pleasing aesthetic, combining a robust concrete channel with a choice of cast iron, stainless steel or galvanised grating in various patterns. Grates are secured by stainless steel bolts that are anchored into threaded steel sockets, and cast into the channel wall, for extra durability.
Marshalls Civils & Drainage Birco 100 comes in a range of lengths and depths, with additional accessories allowing any project's drainage needs to be met. It can be used alongside most landscaping surfaces, including paving, and can be used in the design of a SuDS for impermeable surfaces.
- Available in a range of loadings up to F900
- Manufactured from high quality pre-cast concrete
- Suitable for light and heavy traffic
- Low capacity
- Choice of metal grating
Price Range
- £
- £
- £
Maximum Loading Classification i✕This is the maximum loading for the product.
However this is subject to using the appropriate installation method, bond pattern and the sub-base design.
For tailored support with a pavement design, please contact us:
grouptechnicalservices@marshalls.co.uk
However this is subject to using the appropriate installation method, bond pattern and the sub-base design.
For tailored support with a pavement design, please contact us:
grouptechnicalservices@marshalls.co.uk
A15|B125|C250|D400|E600|F900
NBSPlus Codes
Q10 180
Drainage Capacity
Low
Carbon Footprint
Available on RequestDivision

Contact
0345 302 0400
Technical Downloads (10)
- declarations Download declarations
- Birco 100 Datasheet Download Birco 100 Datasheet
Certification Logos and Accreditations
Datasheets
- Birco 100 Datasheet Download Birco 100 Datasheet
NBS
- Water Management Birco100 Download Water Management Birco100
UKCA Declarations of Performance
- declarations Download declarations
Technical Documents
- birco - installation guide Download birco - installation guide
- linear drainage - installation guidelines Download linear drainage - installation guidelines
- birco-design-guide-pdf Download birco-design-guide-pdf
- introduction-design-guide-pdf Download introduction-design-guide-pdf
- public realm brochure 2022 Download public realm brochure 2022
Microdrainage Models
- marshalls - microdrainage model Download marshalls - microdrainage model
CAD Details
- Birco_Technical_Standards.dwg Download Birco_Technical_Standards.dwg
Product Name | id | Length (mm) | Width (mm) | Depth (mm) | Commercial Units per Pack | Approx Pack Weight (kg) | Made to Stock / Made to Order | Height (mm) |
---|---|---|---|---|---|---|---|---|
0/0 1000 Channel | DR0801050 | 1000 | 200 | 180 | Pallet packed for individual contracts | 1.5 | Made To Stock | 180 |
5/0 1000 Channel | DR0801150 | 1000 | 200 | 230 | Pallet packed for individual contracts | 1.5 | Made To Stock | 230 |
10/0 1000 Channel | DR0801250 | 1000 | 200 | 280 | Pallet packed for individual contracts | 1.5 | Made To Order | 280 |
15/0 1000 Channel | DR0801350 | 1000 | 200 | 330 | Pallet packed for individual contracts | 1.5 | Made To Order | 330 |
20/0 1000 Channel | DR0801450 | 1000 | 200 | 380 | Pallet packed for individual contracts | 1.5 | Made To Order | 380 |
0/0 500 Channel | DR0901500 | 500 | 200 | 180 | Pallet packed for individual contracts | 1.5 | Made To Order | 180 |
5/0 500 Channel | DR0901600 | 500 | 200 | 230 | Pallet packed for individual contracts | 1.5 | Made To Order | 230 |
10/0 500 Channel | DR0901700 | 500 | 200 | 280 | Pallet packed for individual contracts | 1.5 | Made To Order | 280 |
15/0 500 Channel | DR0901800 | 500 | 200 | 330 | Pallet packed for individual contracts | 1.5 | Made To Order | 330 |
20/0 500 Channel | DR0901900 | 500 | 200 | 380 | Pallet packed for individual contracts | 1.5 | Made To Order | 380 |
80 Deep Shallow Channel | DR4204500 | 1000 | 200 | Pallet packed for individual contracts | 1.5 | Made To Order | 80 | |
100 Deep Shallow Channel | DR4204600 | 1000 | 200 | Pallet packed for individual contracts | 1.5 | Made To Order | 100 |
Product Name | id | Commercial Units per Pack | Approx Pack Weight (kg) | Made to Stock / Made to Order |
---|---|---|---|---|
0/0 Channel End Cap | DR1251500 | Pallet packed for individual contracts | 1.5 | Made To Stock |
5/0 Channel End Cap | DR1251550 | Pallet packed for individual contracts | 1.5 | Made To Stock |
10/0 Channel End Cap | DR1251600 | Pallet packed for individual contracts | 1.5 | Made To Order |
15/0 Channel End Cap | DR1251650 | Pallet packed for individual contracts | 1.5 | Made To Order |
20/0 Channel End Cap | DR1251700 | Pallet packed for individual contracts | 1.5 | Made To Order |
0/0 Cap Outlet | DR1251750 | Pallet packed for individual contracts | 1.5 | Made To Stock |
5/0 Cap Outlet | DR1251800 | Pallet packed for individual contracts | 1.5 | Made To Stock |
10/0 Cap Outlet | DR1251850 | Pallet packed for individual contracts | 1.5 | Made To Order |
15/0 Cap Outlet | DR1251900 | Pallet packed for individual contracts | 1.5 | Made To Order |
20/0 Cap Outlet | DR1251950 | Pallet packed for individual contracts | 1.5 | Made To Order |
Product Name | id | Length (mm) | Width (mm) | Commercial Units per Pack | Approx Pack Weight (kg) | Made to Stock / Made to Order |
---|---|---|---|---|---|---|
100 CI Grate Diagonal slot E+ | DR1150200 | 500 | 187 | Pallet packed for individual contracts | 1.5 | Made To Order |
E600 12 Slotted Cast Iron Grate | DR1151250 | 500 | 187 | Pallet packed for individual contracts | 1.5 | Made To Order |
F900 12 Slotted Cast Iron Grate | DR1151300 | 500 | 187 | Pallet packed for individual contracts | 1.5 | Made To Order |
E600 6 Heelsure Slotted Cast Iron Grate | DR1151350 | 500 | 187 | Pallet packed for individual contracts | 1.5 | Made To Stock |
E600 Solid Cast Iron Grate | DR1152500 | 500 | 187 | Pallet packed for individual contracts | 1.5 | Made To Order |
E600 30x20 Mesh Galvanised Steel Grate | DR1152850 | 500 | 187 | Pallet packed for individual contracts | 1.5 | Made To Order |
Product Name | id | Length (mm) | Width (mm) | Depth (mm) | Commercial Units per Pack | Approx Pack Weight (kg) | Made to Stock / Made to Order | Height (mm) |
---|---|---|---|---|---|---|---|---|
No.1 Inbuilt Fall Channel | DR1000100 | 1000 | 200 | 190 | Pallet packed for individual contracts | 1.5 | Made To Order | 180 |
No.2 Inbuilt Fall Channel | DR1000200 | 1000 | 200 | 200 | Pallet packed for individual contracts | 1.5 | Made To Order | 190 |
No.3 Inbuilt Fall Channel | DR1000300 | 1000 | 200 | 210 | Pallet packed for individual contracts | 1.5 | Made To Order | 200 |
No.4 Inbuilt Fall Channel | DR1000400 | 1000 | 200 | 220 | Pallet packed for individual contracts | 1.5 | Made To Order | 210 |
No.5 Inbuilt Fall Channel | DR1000500 | 1000 | 200 | 230 | Pallet packed for individual contracts | 1.5 | Made To Order | 220 |
No.6 Inbuilt Fall Channel | DR1000600 | 1000 | 200 | 240 | Pallet packed for individual contracts | 1.5 | Made To Order | 230 |
No.7 Inbuilt Fall Channel | DR1000700 | 1000 | 200 | 250 | Pallet packed for individual contracts | 1.5 | Made To Order | 240 |
No.8 Inbuilt Fall Channel | DR1000800 | 1000 | 200 | 260 | Pallet packed for individual contracts | 1.5 | Made To Order | 250 |
No.9 Inbuilt Fall Channel | DR1000900 | 1000 | 200 | 270 | Pallet packed for individual contracts | 1.5 | Made To Order | 260 |
No.10 Inbuilt Fall Channel | DR1001000 | 1000 | 200 | 280 | Pallet packed for individual contracts | 1.5 | Made To Order | 270 |
No.11 Inbuilt Fall Channel | DR1001100 | 1000 | 200 | 290 | Pallet packed for individual contracts | 1.5 | Made To Order | 280 |
No.12 Inbuilt Fall Channel | DR1001200 | 1000 | 200 | 300 | Pallet packed for individual contracts | 1.5 | Made To Order | 290 |
No.13 Inbuilt Fall Channel | DR1001300 | 1000 | 200 | 310 | Pallet packed for individual contracts | 1.5 | Made To Order | 300 |
No.14 Inbuilt Fall Channel | DR1001400 | 1000 | 200 | 320 | Pallet packed for individual contracts | 1.5 | Made To Order | 310 |
No.15 Inbuilt Fall Channel | DR1001500 | 1000 | 200 | 330 | Pallet packed for individual contracts | 1.5 | Made To Order | 320 |
No.16 Inbuilt Fall Channel | DR1001600 | 1000 | 200 | 340 | Pallet packed for individual contracts | 1.5 | Made To Order | 330 |
No.17 Inbuilt Fall Channel | DR1001700 | 1000 | 200 | 350 | Pallet packed for individual contracts | 1.5 | Made To Order | 340 |
No.18 Inbuilt Fall Channel | DR1001800 | 1000 | 200 | 370 | Pallet packed for individual contracts | 1.5 | Made To Order | 350 |
No.19 Inbuilt Fall Channel | DR1001900 | 1000 | 200 | 360 | Pallet packed for individual contracts | 1.5 | Made To Order | 360 |
No.20 Inbuilt Fall Channel | DR1002000 | 1000 | 200 | 380 | Pallet packed for individual contracts | 1.5 | Made To Order | 370 |
Product Name | id | Length (mm) | Commercial Units per Pack | Approx Pack Weight (kg) | Made to Stock / Made to Order |
---|---|---|---|---|---|
End Outfall | DR1301700 | 500 | Pallet packed for individual contracts | 1.5 | Made To Order |
Side Outfall | DR1301750 | 500 | Pallet packed for individual contracts | 1.5 | Made To Stock |
Product Name | id | Length (mm) | Commercial Units per Pack | Approx Pack Weight (kg) | Made to Stock / Made to Order | Height (mm) |
---|---|---|---|---|---|---|
0/0 T-Junction Channel | DR1101210 | 500 | Pallet packed for individual contracts | 1.5 | Made To Order | 180 |
5/0 T-Junction Channel | DR1101250 | 500 | Pallet packed for individual contracts | 1.5 | Made To Order | 230 |
10/0 T-Junction Channel | DR1101300 | 500 | Pallet packed for individual contracts | 1.5 | Made To Order | 280 |

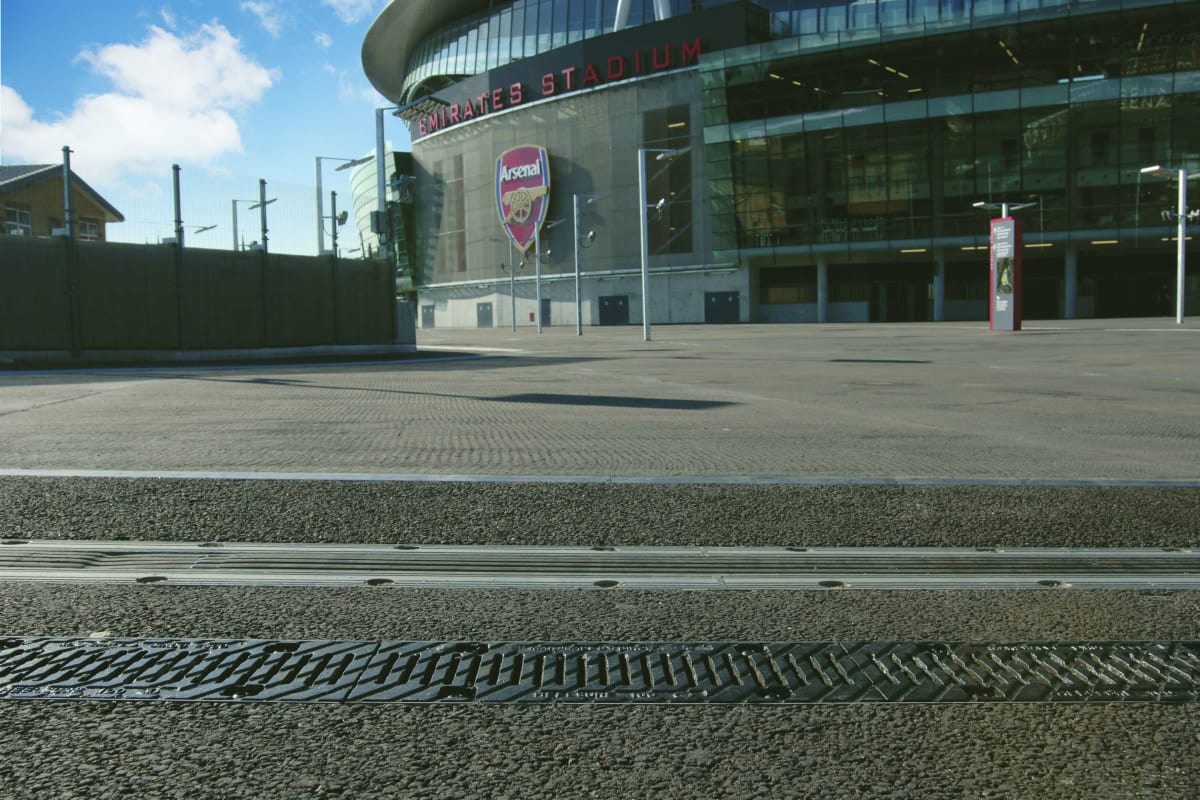

marshalls birco 100 heelsure channel london
