Birco 150

Offering an increased flow capacity over the Birco 100, the Birco 150 combines concrete channels with a diverse range of metal coverings to produce a linear drainage solution that is both effective and aesthetically pleasing.

The Birco 150’s water drainage channels are constructed of a robust precast concrete to ensure reliable performance. The channel walls are also reinforced with heavy grade rolled galvanised steel angles cast into the top, increasing durability and ability to handle heavy loads.

With the correct grate application, the Birco 150 can achieve a load classification of F900, the highest possible rating, making it the perfect solution for rail, commercial and industrial projects. The grates are secured by bolting stainless steel bolts into the threaded steel sockets cast into the channel wall.

Birco 150 comes in a range of grate styles to complement any scheme. Choose from a Cast Iron Slotted Grate, Cast Iron Heelsure Grate, Galvanised Steel Mesh, Galvanised Cast Iron Slotted Grate and Cast Iron Solid Cover.

  • Low to medium capacity
  • Robust precast concrete
  • Can withstand loads up to the highest classification
  • Suitable for commercial, industrial or rail applications
  • Available in 5 grate options

Ethical Risk Index

This Radar diagram illustrates the level of ethical risk associated with a specific stone. Ethical risk is plotted against the 10 ten measures of the ERI, with each value drawn from reports produced by independent ethical auditors, engaged by Marshalls to provide non-biased and honest reporting into levels of risk in that supply chain.

Each of the 10 measure is designed to recognise different and discrete sources of ethical risk. This produces a bespoke, fit for purpose framework designed specifically for the requirements of the stone industry. The radar diagram itself also compares the Marshalls supply chain to the wider industry in that stone, giving users a working comparison of Marshalls supply chain to the industry average, in the opinion of the auditor.

  • Modern Slavery Act Awareness
  • Supply Chain Visibility
  • Income and Employment Security
  • Health & Safety
  • Employment Freely Chosen
  • Empowerment
  • Environmental
  • Governance
  • Corruption and Bribery
Ethical Risk Graph Image
  • Birco 150
  • Cluster Score
View More

Price Range

  • £
  • £
  • £

Maximum Loading Classification

F900

NBSPlus Codes

Q10 180

Drainage Capacity

Low

Carbon Footprint

Available on Request

Technical Downloads (9)

View all

Certification Logos and Accreditations

  • Accreditation 2019 superbrands logo Logo
  • Accreditation spotlight ethical fairtrade logo Logo
  • Accreditation BSI Assurance Mark ISO 45001 Black Logo
  • Accreditation BSI Assurance Mark ISO 14001 KEYB Logo
  • Accreditation BSI Assurance Mark ISO 9001 KEYB Logo
  • Accreditation 2 Logo
  • Accreditation Layer 1 Logo
  • Accreditation Made in Britain Logo
  • Accreditation CDP CDLI Leadership Logo
birco 150 cast iron slotted grate 12mm - c250 e600 and f900

birco 150 cast iron slotted grate 12mm - c250 e600 and f900

birco 150 cast iron solid cover

birco 150 cast iron solid cover

birco 150 cast iron heelsure grate 6mm

birco 150 cast iron heelsure grate 6mm

birco 150 galvanised cast iron slotted grate 12mm

birco 150 galvanised cast iron slotted grate 12mm

birco 150 galvanised steel mesh 20mm x 30mm

birco 150 galvanised steel mesh 20mm x 30mm

Datasheets

Add All to Project

NBSPlus

Add All to Project

CE Mark

Add All to Project

Technical Documents

Add All to Project

Microdrainage Models

Add All to Project

CAD Details

Add All to Project
birco-150-constant-depth-channels
birco-150-end-cap-cap-outlets
birco-150-gratings
birco-150-inbuilt-fall-channels
birco-150-outfalls
birco-150-t-junction-channels
Product Name id Length (mm) Width (mm) Depth (mm) Commercial Units per Pack Approx Pack Weight (kg) Made to Stock / Made to Order
0/0 1000 Channel DR1602000 1000 250 230 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Stock
5/0 1000 Channel DR1602050 1000 250 280 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Stock
10/0 1000 Channel DR1602100 1000 250 330 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
15/0 1000 Channel DR1602150 1000 250 380 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
20/0 1000 Channel DR1602200 1000 250 430 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
0/0 500 Channel DR1702060 500 250 230 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
5/0 500 Channel DR1702260 500 250 280 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
10/0 500 Channel DR1702360 500 250 330 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
15/0 500 Channel DR1702460 500 250 380 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
20/0 500 Channel DR1702560 500 250 430 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
Product Name id Commercial Units per Pack Approx Pack Weight (kg) Made to Stock / Made to Order
0/0 Channel End Cap DR1972000 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Stock
5/0 Channel End Cap DR1972100 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Stock
10/0 Channel End Cap DR1972200 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
15/0 Channel End Cap DR1972300 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
0/0 Cap Outlet DR2002500 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Stock
5/0 Cap Outlet DR2002600 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Stock
10/0 Cap Outlet DR2002700 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
15/0 Cap Outlet DR2002800 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
Product Name id Length (mm) Width (mm) Commercial Units per Pack Approx Pack Weight (kg) Made to Stock / Made to Order
E600 12 Slotted Cast Iron Grate DR1952100 500 237 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
F900 12 Slotted Cast Iron Grate DR1952200 500 237 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
E600 Solid Cast Iron Grate DR1952300 500 237 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
E600 6 Heelsure Slotted Cast Iron Grate DR1952400 500 237 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Stock
E600 6 Heelsure Slotted Powder Coated Cast Iron Grate DR1957500 500 237 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
E600 12 Slotted Galvanised Cast Iron Grate DR1970300 500 237 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
E600 20x30 Mesh Galvanised Steel Grate DR1972800 1000 237 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
E600 20x30 Mesh Galvanised Steel Grate DR1972900 500 237 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
Product Name id Length (mm) Width (mm) Depth (mm) Commercial Units per Pack Approx Pack Weight (kg) Made to Stock / Made to Order
No.1 Inbuilt Fall Channel DR1800100 1000 250 240 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
No.2 Inbuilt Fall Channel DR1800200 1000 250 250 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
No.3 Inbuilt Fall Channel DR1800300 1000 250 260 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
No.4 Inbuilt Fall Channel DR1800400 1000 250 270 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
No.5 Inbuilt Fall Channel DR1800500 1000 250 280 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
No.6 Inbuilt Fall Channel DR1800600 1000 250 290 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
No.7 Inbuilt Fall Channel DR1800700 1000 250 300 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
No.8 Inbuilt Fall Channel DR1800800 1000 250 310 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
No.9 Inbuilt Fall Channel DR1800900 1000 250 320 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
No.10 Inbuilt Fall Channel DR1801000 1000 250 330 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
No.11 Inbuilt Fall Channel DR1801100 1000 250 340 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
No.12 Inbuilt Fall Channel DR1801200 1000 250 350 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
No.13 Inbuilt Fall Channel DR1801300 1000 250 360 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
No.14 Inbuilt Fall Channel DR1801400 1000 250 370 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
No.15 Inbuilt Fall Channel DR1801500 1000 250 380 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
No.16 Inbuilt Fall Channel DR1801600 1000 250 390 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
No.17 Inbuilt Fall Channel DR1801700 1000 250 400 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
No.18 Inbuilt Fall Channel DR1801800 1000 250 410 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
No.19 Inbuilt Fall Channel DR1801900 1000 250 420 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
No.20 Inbuilt Fall Channel DR1802000 1000 250 430 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
Product Name id Length (mm) Commercial Units per Pack Approx Pack Weight (kg) Made to Stock / Made to Order
End Outfall DR2102700 500 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
Product Name id Length (mm) Commercial Units per Pack Approx Pack Weight (kg) Made to Stock / Made to Order
0/0 T-Junction Channel DR1900200 500 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
5/0 T-Junction Channel DR1900300 500 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
10/0 T-Junction Channel DR1900400 500 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order

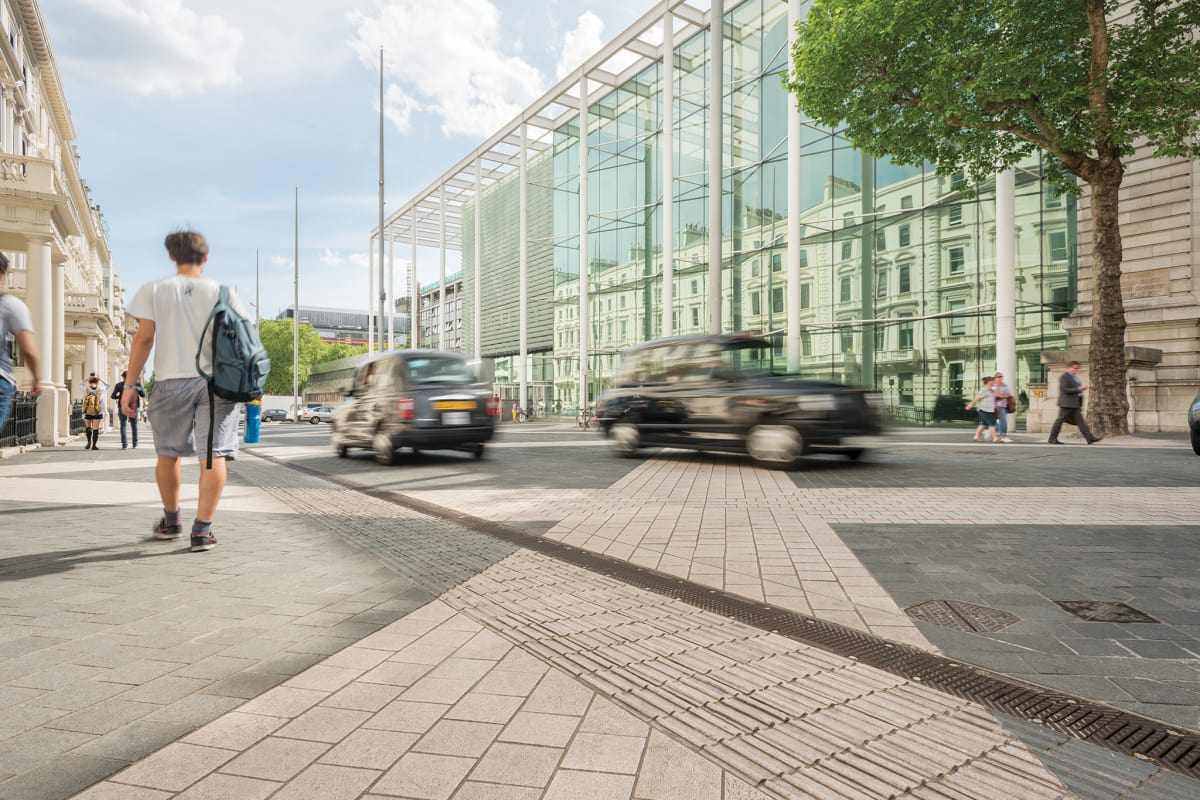

marshalls birco 150 cast iron slot grate

marshalls birco 150 cast iron slot grate

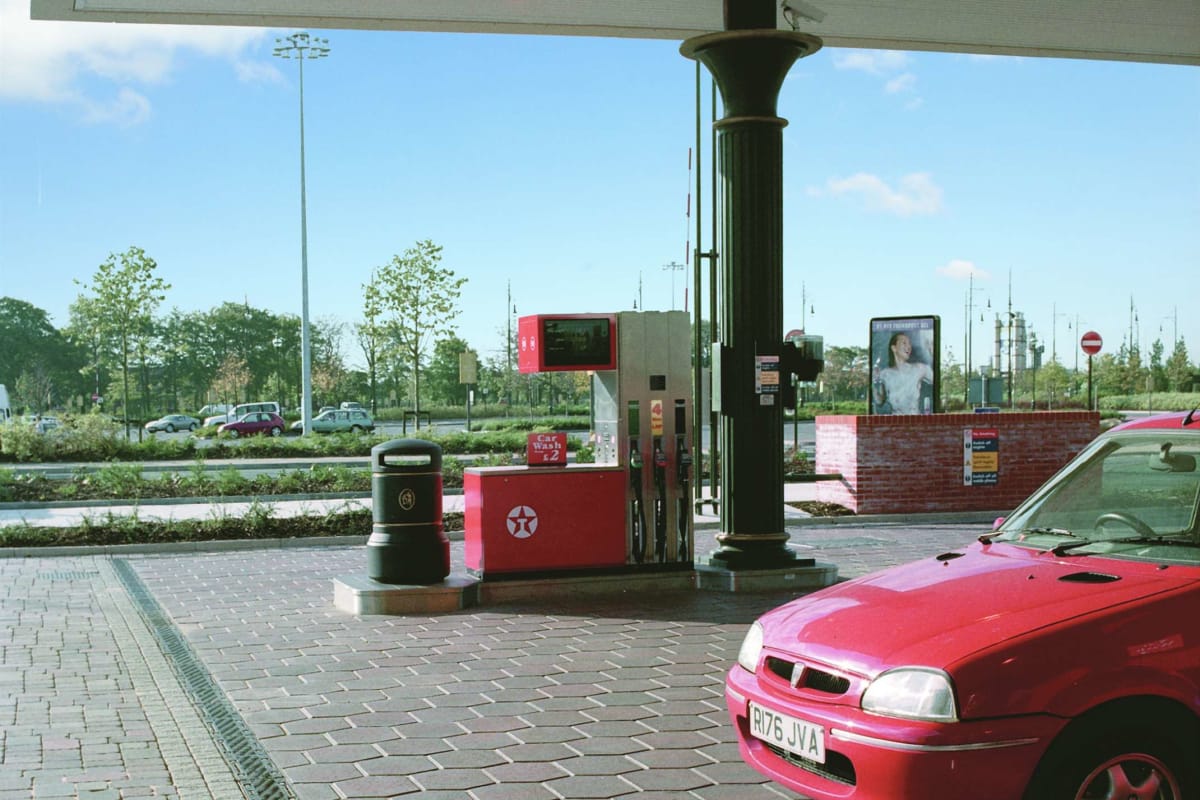

marshalls birco 150 heelsure channel manchester

marshalls birco 150 heelsure channel manchester

birco 150 - heelsure

birco 150 - heelsure

birco 150

birco 150

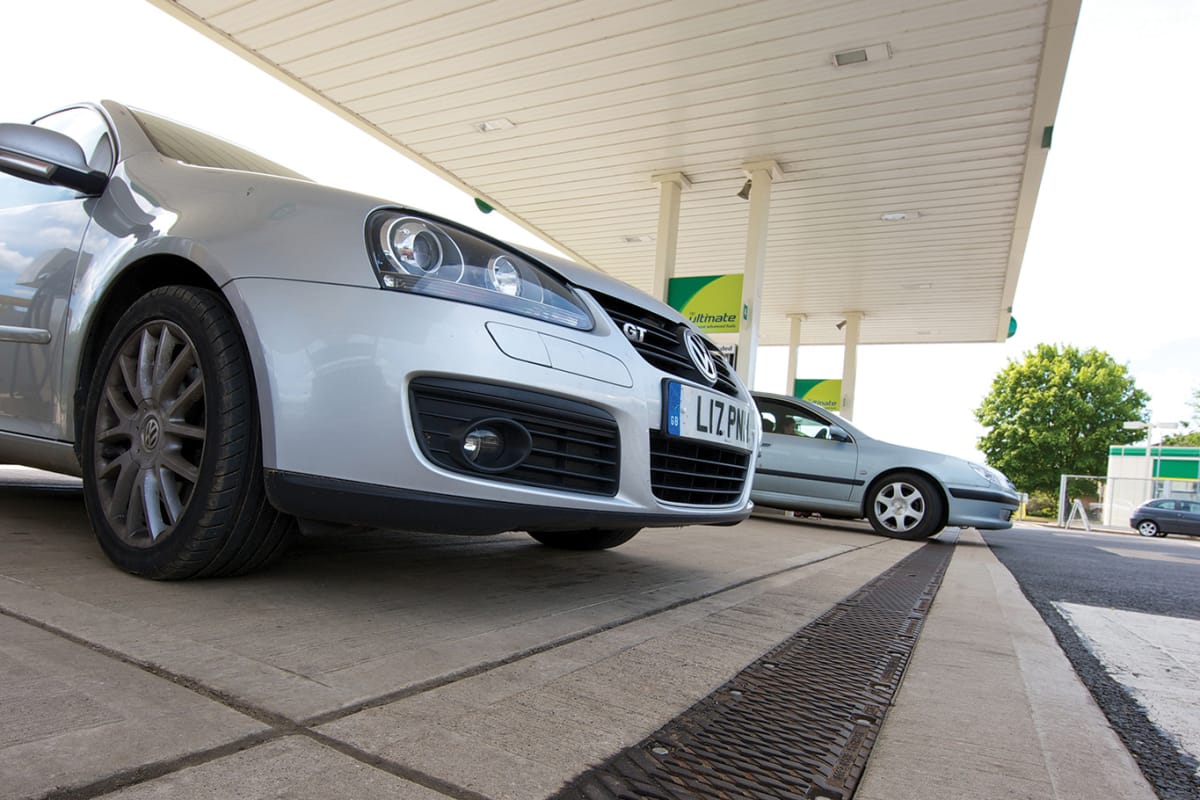

marshalls birco 150 cast iron slot grate
