Birco 200

Manufactured from high-quality pre-cast concrete, Marshalls’ Birco 200 is a medium-capacity linear drainage system. It provides a flow rate of 88-131 litres per second (at a 1 in 40 gradient) and is also available with inbuilt falls, which improve flow rates to increase drainage discharge capacity.

Heavy-grade rolled galvanised steel angles cast into the top of the channel walls add to the durability of the product, providing superior strength in heavy loading applications.

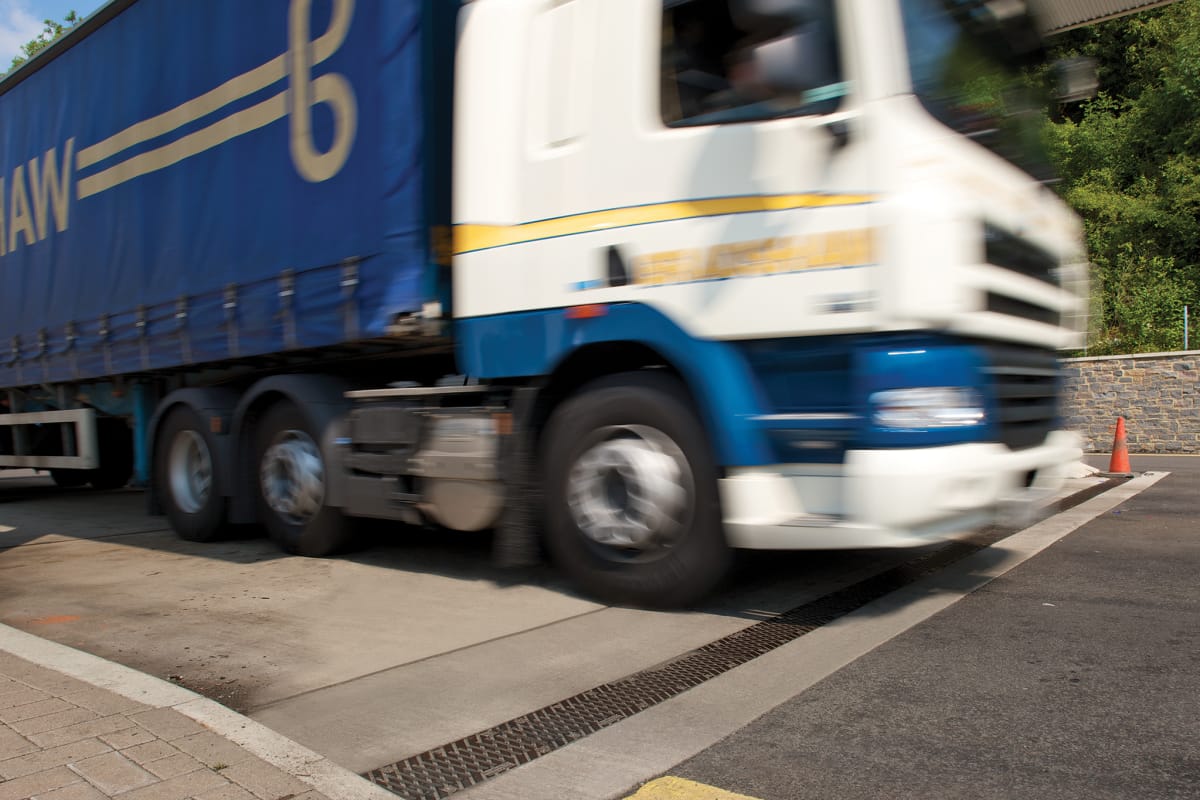

With a loading capacity of up to F900 depending on the grating system installed, Birco 200 is suitable for use in a range of projects where heavy vehicle traffic is anticipated.

There’s also a choice of grating options, dependent on your loading requirements and the look your project requires. These are secured by stainless steel bolts fitted into threaded steel sockets cast into the channel wall, providing additional durability.

  • Manufactured in high-quality pre-cast concrete
  • Galvanised steel angles for added strength
  • Available with inbuilt falls to improve drainage capacity
  • Suitable for heavy traffic with loadings up to F900
  • Choice of grating options

Price Range

  • £
  • £
  • £

Maximum Loading Classification

F900

NBSPlus Codes

Q10 115
Q10 180

Drainage Capacity

Medium

Carbon Footprint

Available on Request

Certification Logos and Accreditations

  • Accreditation BSB Blue Stamp 2018 Logo
  • Accreditation spotlight ethical fairtrade logo Logo
  • Accreditation BSI Assurance Mark OHS 18001 KEYB Logo
  • Accreditation BSI Assurance Mark ISO 14001 KEYB Logo
  • Accreditation BSI Assurance Mark ISO 9001 KEYB Logo
  • Accreditation 2 Logo
  • Accreditation Layer 1 Logo
  • Accreditation Made in Britain Logo
  • Accreditation CDP CDLI Leadership Logo
Product Name ID Length (mm) Width (mm) Depth (mm) Units Per Pack Approx. Pack Weight (kg) Made to Stock / Made to Order
0/0 1000 Channel DR2403000 1000 330 310 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Stock
5/0 1000 Channel DR2403100 1000 330 335 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
10/0 1000 Channel DR2403200 1000 330 360 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
15/0 1000 Channel DR2403300 1000 330 385 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
0/0 500 Channel DR2503100 500 330 310 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
Product Name ID Units Per Pack Approx. Pack Weight (kg) Made to Stock / Made to Order
0/0 Channel End Cap DR2803500 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Stock
0/0 Cap Outlet DR2803700 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Stock
Product Name ID Length (mm) Width (mm) Units Per Pack Approx. Pack Weight (kg) Made to Stock / Made to Order
200 CI Grate 500/18 F + DR2754100 500 287 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Stock
Product Name ID Length (mm) Width (mm) Depth (mm) Units Per Pack Approx. Pack Weight (kg) Made to Stock / Made to Order
Landscape IBF Channel No.19 DR3301900 1000 330 370 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
Product Name ID Length (mm) Units Per Pack Approx. Pack Weight (kg) Made to Stock / Made to Order
Side Outfall DR2903800 500 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Stock
Product Name ID Length (mm) Units Per Pack Approx. Pack Weight (kg) Made to Stock / Made to Order
0/0 T-Junction Channel DR2503200 500 Pallet packed for individual contracts Maximum 1.5 tonnes Made To Order
