Birco 300
Marshall's Birco 300 is specially designed for use in projects with abnormally heavy loads, including ports or aircraft depot paving.
Manufactured from superior pre-cast concrete, Birco 300 boasts heavy-grade rolled galvanised steel angles at the top of its channel walls to provide superior strength in heavy loading applications.
Cast iron grating secured by stainless steel bolts that fit into threaded steel sockets cast into the channel wall, allow Birco 300 to bear loads up to F900.
A high-capacity linear drainage system, offering increased flow capacity, Birco 300 delivers the strength and durability required for high traffic areas.
- Manufactured in high-quality pre-cast concrete
- Galvanised steel angles cast into the top add strength
- Suitable for heavy traffic with loadings up to F900
- Cast Iron grating
Ethical Risk Index
This Radar diagram illustrates the level of ethical risk associated with a specific stone. Ethical risk is plotted against the 10 ten measures of the ERI, with each value drawn from reports produced by independent ethical auditors, engaged by Marshalls to provide non-biased and honest reporting into levels of risk in that supply chain.
Each of the 10 measure is designed to recognise different and discrete sources of ethical risk. This produces a bespoke, fit for purpose framework designed specifically for the requirements of the stone industry. The radar diagram itself also compares the Marshalls supply chain to the wider industry in that stone, giving users a working comparison of Marshalls supply chain to the industry average, in the opinion of the auditor.
- Modern Slavery Act Awareness
- Supply Chain Visibility
- Income and Employment Security
- Health & Safety
- Employment Freely Chosen
- Empowerment
- Environmental
- Governance
- Corruption and Bribery
- Birco 300
- Cluster Score
Price Range
- £
- £
- £
Maximum Loading Classification
F900
NBSPlus Codes
Q10 180
Drainage Capacity
High
Carbon Footprint
Available on RequestTechnical Downloads (9)
- dop Download dop Add to Project dop
- Birco 300 Datasheet Download Birco 300 Datasheet Add to Project Birco 300 Datasheet
Certification Logos and Accreditations
Datasheets
Add All to Project- Birco 300 Datasheet Download Birco 300 Datasheet Add to Project Birco 300 Datasheet
NBSPlus
Add All to Project- Water Management Birco300 A S Download Water Management Birco300 A S Add to Project Water Management Birco300 A S
CE Mark
Add All to ProjectTechnical Documents
Add All to Project- linear drainage - installation guidelines Download linear drainage - installation guidelines Add to Project linear drainage - installation guidelines
- birco - installation guide Download birco - installation guide Add to Project birco - installation guide
- birco-design-guide-pdf Download birco-design-guide-pdf Add to Project birco-design-guide-pdf
- introduction-design-guide-pdf Download introduction-design-guide-pdf Add to Project introduction-design-guide-pdf
Microdrainage Models
Add All to Project- marshalls - microdrainage model Download marshalls - microdrainage model Add to Project marshalls - microdrainage model
CAD Details
Add All to Project- Birco_Technical_Standards.dwg Download Birco_Technical_Standards.dwg Add to Project Birco_Technical_Standards.dwg
| Product Name | id | Length (mm) | Width (mm) | Depth (mm) | Commercial Units per Pack | Approx Pack Weight (kg) | Made to Stock / Made to Order |
|---|---|---|---|---|---|---|---|
| 410 1000 Channel | DR3805000 | 1000 | 430 | 410 | Pallet packed for individual contracts | Maximum 1.5 tonnes | Made To Order |
| 550 1000 Channel | DR3805200 | 1000 | 430 | 550 | Pallet packed for individual contracts | Maximum 1.5 tonnes | Made To Order |
| Product Name | id | Commercial Units per Pack | Approx Pack Weight (kg) | Made to Stock / Made to Order |
|---|---|---|---|---|
| 300 Channel End Cap | DR3955300 | Pallet packed for individual contracts | Maximum 1.5 tonnes | Made To Order |
| 300 Cap Outlet | DR3955400 | Pallet packed for individual contracts | Maximum 1.5 tonnes | Made To Order |
| Product Name | id | Length (mm) | Width (mm) | Commercial Units per Pack | Approx Pack Weight (kg) | Made to Stock / Made to Order |
|---|---|---|---|---|---|---|
| E600 20 Slotted Cast Iron Grate | DR3906200 | 500 | 417 | Pallet packed for individual contracts | Maximum 1.5 tonnes | Made To Order |
| F900 20 Slotted Cast Iron Grate | DR3906300 | 500 | 417 | Pallet packed for individual contracts | Maximum 1.5 tonnes | Made To Order |
| Product Name | id | Length (mm) | Commercial Units per Pack | Approx Pack Weight (kg) | Made to Stock / Made to Order |
|---|---|---|---|---|---|
| 410 Outfall | DR3955500 | 500 | Pallet packed for individual contracts | Maximum 1.5 tonnes | Made To Order |

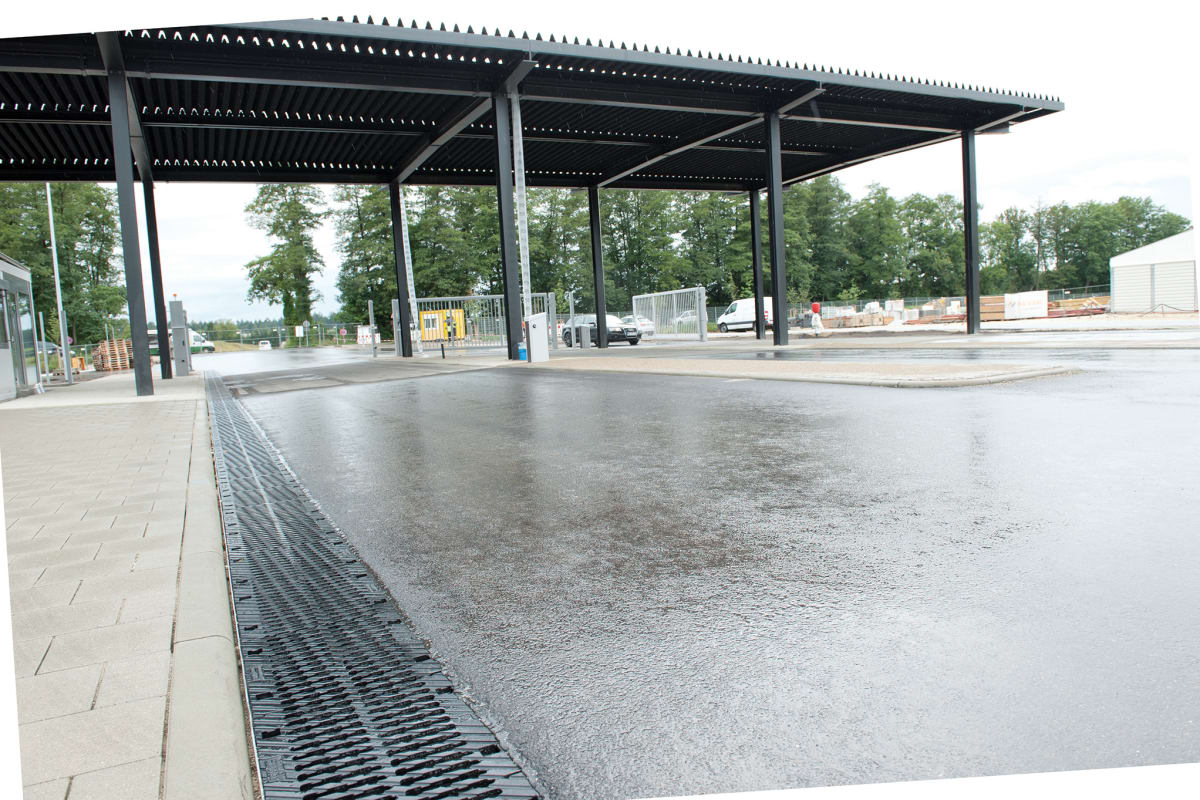

marshalls birco 300 cast iron slot grate
