Max-E-Channel
The Marshalls Max-E Channel range is a high capacity linear drainage system that complements the Beany range to ensure continuity between kerb and top units.
It is compatible with all Beany junctions, outfalls and other ancillary units. Max-E Channel’s top unit is laid level with the pavement, allowing it to become a high capacity, fully-integrated surface water solution.
With the appropriate top options, Max-E Channel can achieve a load bearing classification of F900, the highest possible rating, making it a perfect option for rail, commercial and industrial deployment.
Max-E Channel is available in a range of top units that will complement any aesthetic, regardless of the project. Concrete slotted top units are offered in Conservation Silver Grey, Standard Grey and Reinforced Standard Grey. The blocks can be textured to provide an appealing finish. Alternatively, cast iron options can be deployed.
- High capacity linear drainage system
- Compatible with all Beany products
- Can withstand loads up to the highest classification (F900)
- Suitable for commercial, industrial or rail applications

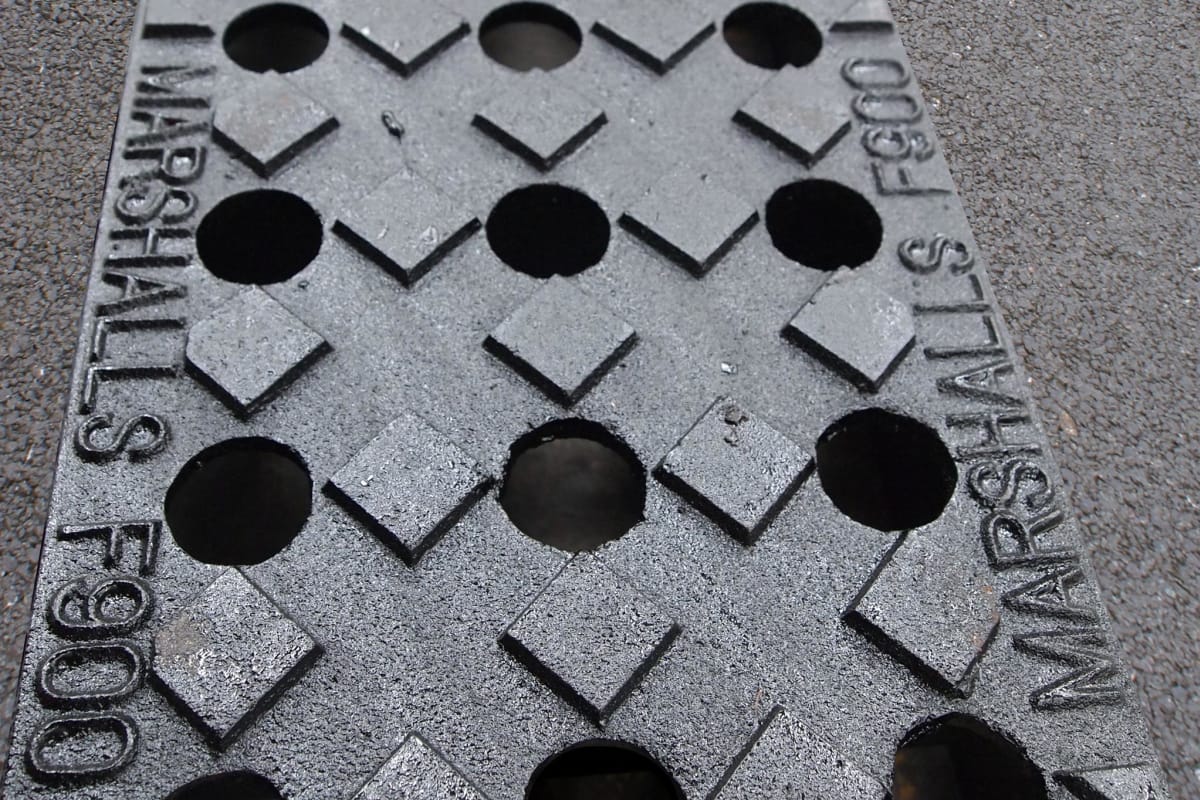

- Available in concrete slotted top and cast iron top finishes
Price Range
- £
- £
- £
Maximum Loading Classification
E600
NBSPlus Codes
Q10 170
Drainage Capacity
High
Carbon Footprint
Available on RequestTechnical Downloads (9)
- dop Download dop
- Max E Channel Datasheet Download Max E Channel Datasheet
Certification Logos and Accreditations
Datasheets
- Max E Channel Datasheet Download Max E Channel Datasheet
NBSPlus
- Water Management Max E Channel Download Water Management Max E Channel
CE Mark
- dop Download dop
Technical Documents
- linear drainage - installation guidelines Download linear drainage - installation guidelines
- maxe channel - installation guide Download maxe channel - installation guide
- max-e-channel-design-guide-pdf Download max-e-channel-design-guide-pdf
- introduction-design-guide-pdf Download introduction-design-guide-pdf
Microdrainage Models
- marshalls - microdrainage model Download marshalls - microdrainage model
CAD Details
- Max-E_Channel_Technical_Standards.dwg Download Max-E_Channel_Technical_Standards.dwg
Product Name | ID | Length (mm) | Width (mm) | Depth (mm) | Units Per Pack | Approx. Pack Weight (kg) | Made to Stock / Made to Order |
---|---|---|---|---|---|---|---|
295 Channel | DR7200101 | 500 | 430 | 295 | Pallet packed for individual contracts | Maximum 1.5 tonnes | Made To Stock |
205 Channel | DR7200211 | 500 | 430 | 205 | Pallet packed for individual contracts | Maximum 1.5 tonnes | Made To Stock |
365 Channel | DR7200300 | 500 | 430 | 365 | Pallet packed for individual contracts | Maximum 1.5 tonnes | Made To Stock |
630 Channel | DR7200450 | 500 | 440/490 | 630 | Pallet packed for individual contracts | Maximum 1.5 tonnes | Made To Stock |
295 T-Junction Channel | DR8500200 | 500 | Pallet packed for individual contracts | Maximum 1.5 tonnes | Made To Order |
Product Name | ID | Units Per Pack | Approx. Pack Weight (kg) | Made to Stock / Made to Order |
---|---|---|---|---|
295 Channel End Cap | DR7200150 | Pallet packed for individual contracts | Maximum 1.5 tonnes | Made To Stock |
205 Channel End Cap | DR7200250 | Pallet packed for individual contracts | Maximum 1.5 tonnes | Made To Stock |
365 Channel End Cap | DR7200350 | Pallet packed for individual contracts | Maximum 1.5 tonnes | Made To Stock |
Product Name | ID | Length (mm) | Units Per Pack | Approx. Pack Weight (kg) | Made to Stock / Made to Order |
---|---|---|---|---|---|
Gully Outfall 150 | DR4604010 | 500 | Pallet packed for individual contracts | Maximum 1.5 tonnes | Made To Stock |
Gully Outfall 225 | DR4604060 | 500 | Pallet packed for individual contracts | Maximum 1.5 tonnes | Made To Stock |
295 Outfall Channel | DR8500100 | 500 | Pallet packed for individual contracts | Maximum 1.5 tonnes | Made To Stock |
295 Outfall T-Junction Channel | DR8500300 | 500 | Pallet packed for individual contracts | Maximum 1.5 tonnes | Made To Order |
205 Outfall Channel | DR8500410 | 500 | Pallet packed for individual contracts | Maximum 1.5 tonnes | Made To Stock |
205 T-Junction Channel | DR8500510 | 500 | Pallet packed for individual contracts | Maximum 1.5 tonnes | Made To Order |
365 Outfall Channel | DR8500700 | 500 | Pallet packed for individual contracts | Maximum 1.5 tonnes | Made To Stock |
Standard Cover Plate | DR9100050 | 500 | Pallet packed for individual contracts | Maximum 1.5 tonnes | Made To Stock |
Radius Cover Plate 50/11m | DR9100100 | 500 | Pallet packed for individual contracts | Maximum 1.5 tonnes | Made To Order |
Product Name | ID | Length (mm) | Units Per Pack | Approx. Pack Weight (kg) | Made to Stock / Made to Order |
---|---|---|---|---|---|
205 - 295 Transition Channel | DR8700100 | 500 | Pallet packed for individual contracts | Maximum 1.5 tonnes | Made To Order |
295 - 365 Transition Channel | DR8700210 | 500 | Pallet packed for individual contracts | Maximum 1.5 tonnes | Made To Order |
Product Name | ID | Units Per Pack | Approx. Pack Weight (kg) | Made to Stock / Made to Order |
---|---|---|---|---|
Access Cover & Frame | DR9800150 | Pallet packed for individual contracts | Maximum 1.5 tonnes | Made To Stock |
Product Name | ID | Length (mm) | Units Per Pack | Approx. Pack Weight (kg) | Made to Stock / Made to Order |
---|---|---|---|---|---|
Cast Iron Grate | DR9750200 | 500 | Pallet packed for individual contracts | Maximum 1.5 tonnes | Made To Order |
Conservation Reinforced Top | DR9758300 | 250 | Pallet packed for individual contracts | Maximum 1.5 tonnes | Made To Order |

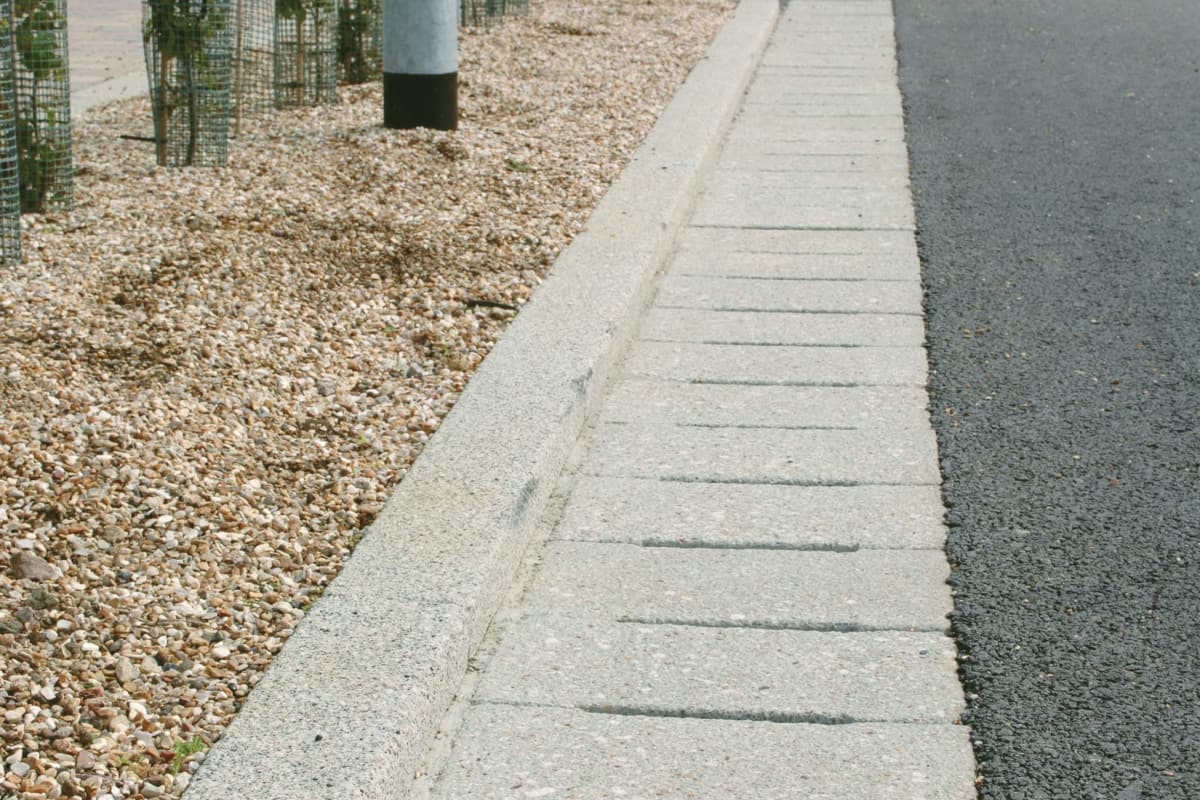

marshalls max-e channel conservation bedford

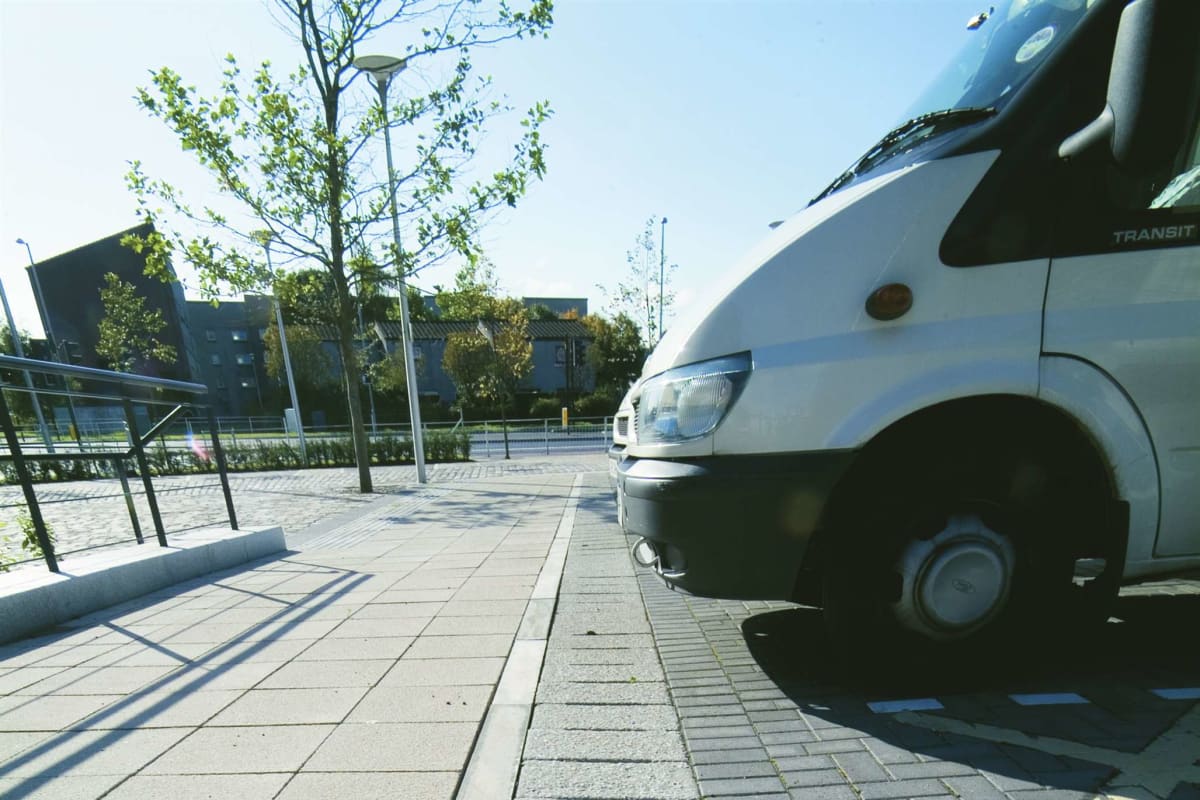

marshalls max-e channel conservation silver grey glasgow

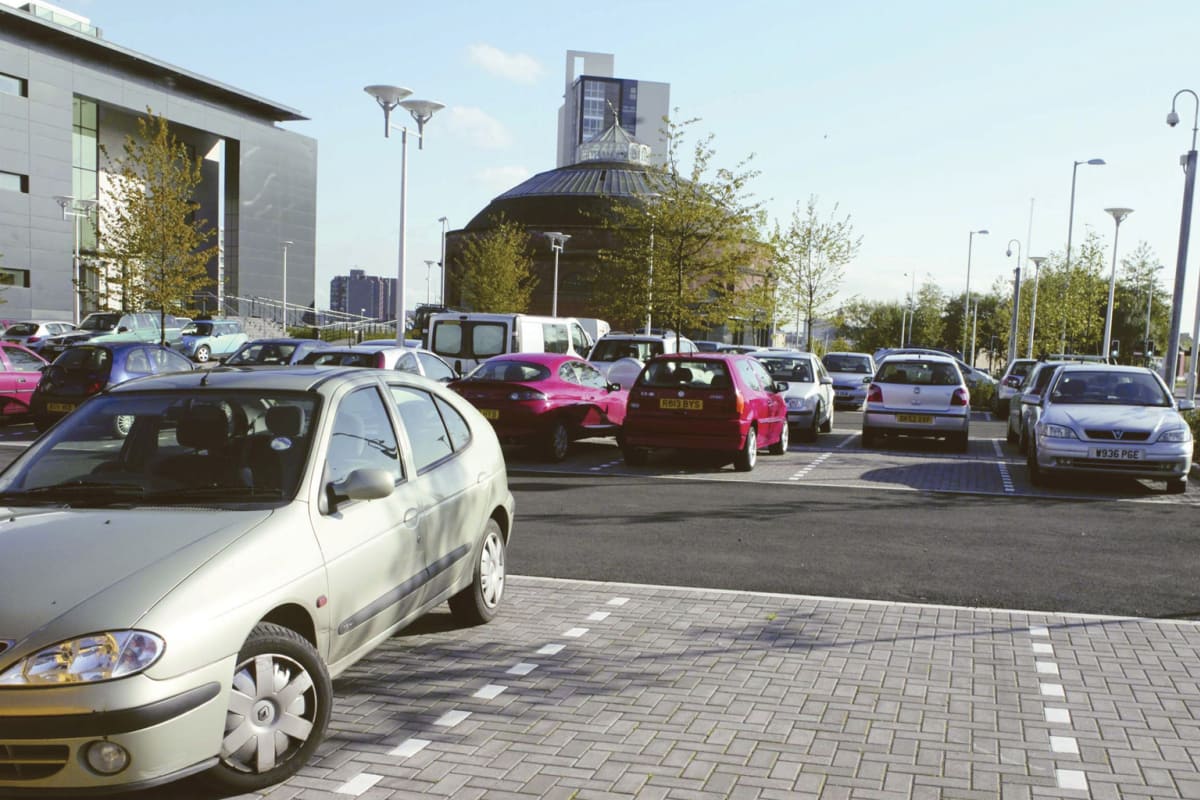

marshalls max-e channel natural textured and marshalls keyblock charcoal
