Fixed Head Adjustable Paving Pedestal
Marshalls Fixed Head pedestals are used to create level flooring systems on balconies and roofdecks. Integral spacers create a 4mm joint between paving units and the height can be easily adjusted using the threaded core.
Marshalls pedestals are recommended for use on roofdecks where there will be no vehicular access, but have been tested and proven to withstand loads in excess of one tonne.
- Suitable for use on roofdecks and balconies.
- Creates a "floating floor" system which can hide services, waterproofing and insulation beneath the paving units.
- Easy to install - can be adjusted from a standing position using the MPAK Pedestal Adjustment Key.
Technical Downloads (1)
- fixed head adjustable paving pedestal datasheet Download fixed head adjustable paving pedestal datasheet Add to Project fixed head adjustable paving pedestal datasheet
Certification Logos and Accreditations
Datasheets
Add All to Project- fixed head adjustable paving pedestal datasheet Download fixed head adjustable paving pedestal datasheet Add to Project fixed head adjustable paving pedestal datasheet
Specifications
| Product Name | ID | Head Diameter (mm) | Base Diameter (mm) | Minimum Height (mm) | Maximum Height (mm) | Min. Order Quantity | Made to Stock / Made to Order |
|---|---|---|---|---|---|---|---|
| MF1 Fixed Head Adjustable Pedestal | FL9962010 | 120 | 200 | 22 | 35 | 25 | Made To Stock |
| MF2 Fixed Head Adjustable Pedestal | FL9962020 | 120 | 200 | 35 | 55 | 25 | Made To Stock |
| MF3 Fixed Head Adjustable Pedestal | FL9962030 | 120 | 200 | 55 | 95 | 25 | Made To Stock |
| MF4 Fixed Head Adjustable Pedestal | FL9962040 | 120 | 200 | 95 | 165 | 25 | Made To Stock |
| MF5 Fixed Head Adjustable Pedestal | FL9962050 | 120 | 200 | 165 | 235 | 25 | Made To Stock |
| MF6 Fixed Head Adjustable Pedestal | FL9962060 | 120 | 200 | 200 | 270 | 25 | Made To Stock |

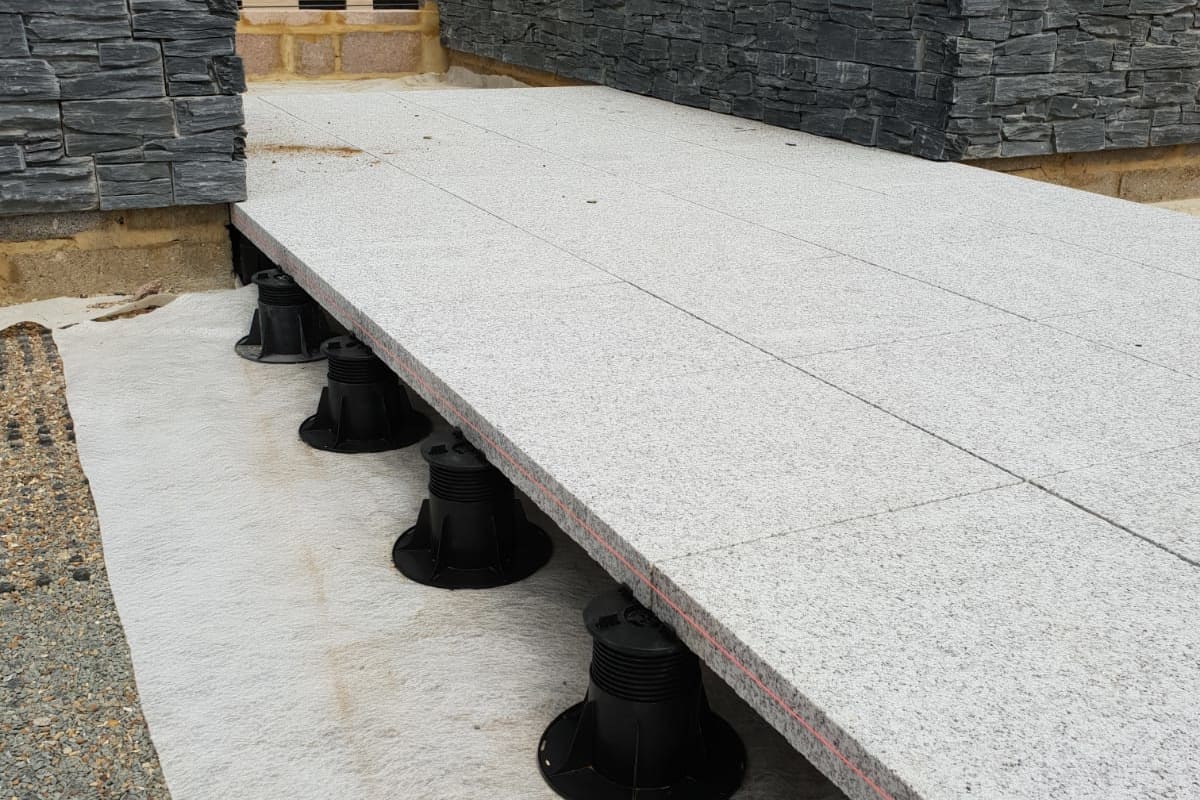

fixed head pedestal installed close up

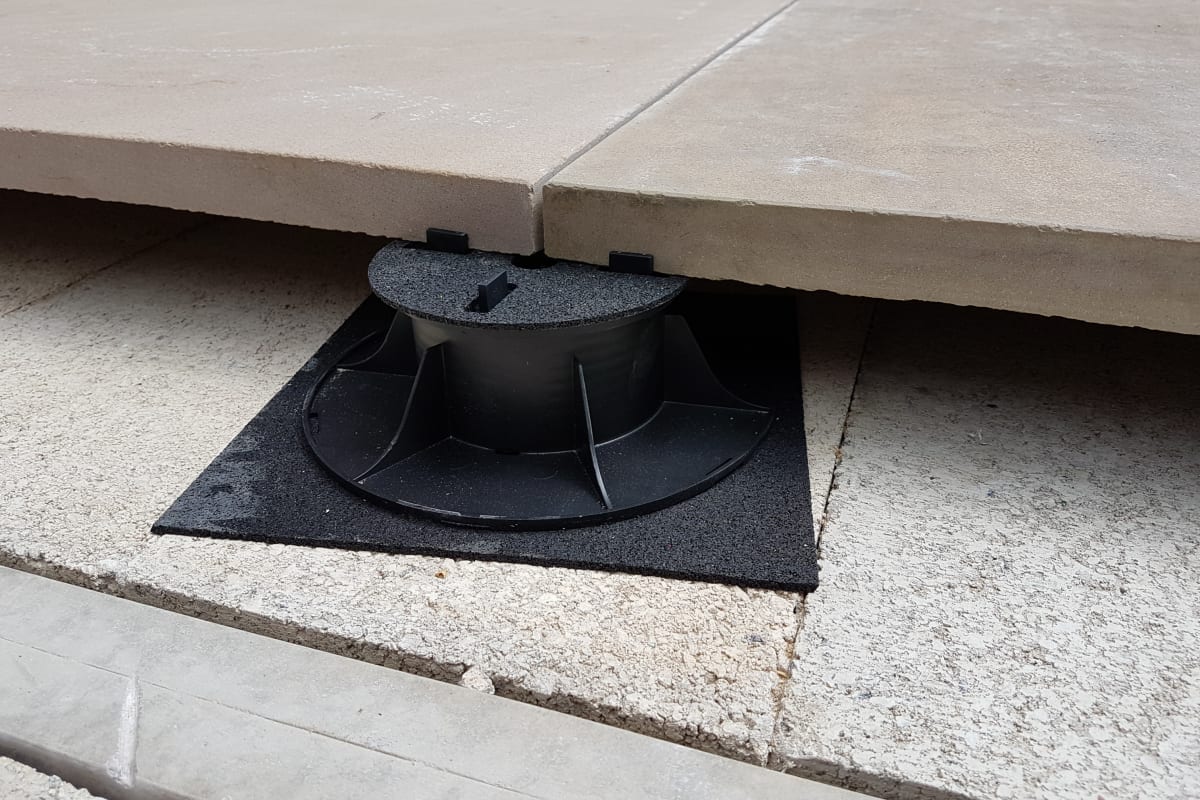

fixed head pedestal installed close up
