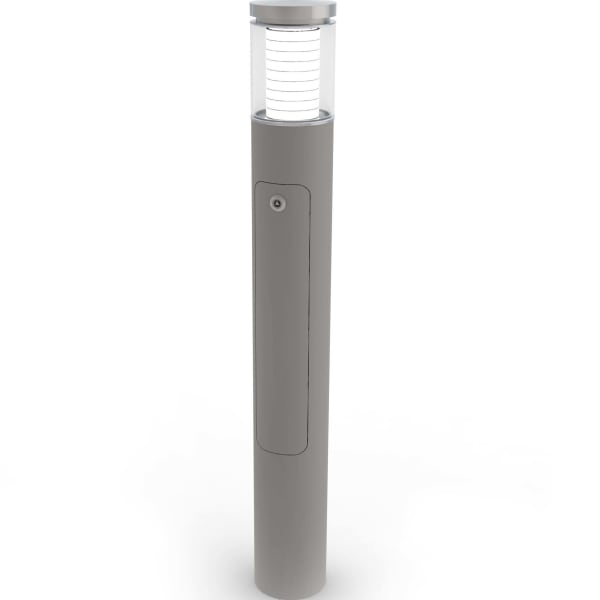

Geo Illuminated Bollard
The Geo Illuminated Bollard lights walkways or planted areas whilst also providing guidance for pedestrians and motorists. Designed by Lifschutz Davidson Sandilands, its high design aesthetic and exceptional material quality will enhance any urban environment.The "shadow gap" design theme that runs throughout the Geo range is also present in the bollard to enhance the sense of place and identity, as well as enabling fully coordinated schemes and minimising visual clutter.A 316 stainless steel bead blasted cap and brushed body provides a robust yet attractive aesthetic. A variety of options are available including refractor technology for compact fluorescent lamps and a double cone mirror optic for metal halide.
- Effective illumination for walkways
- Available in buried flange, buried root, surface fixed or lift-out variants
- Recessed and surface folding options available
- Alternative size options
Price Range
- £
- £
- £
NBSPlus Codes
Q50 Site/street furniture/equipment
Carbon Footprint
Available on RequestEthical Risk Index
This Radar diagram illustrates the level of ethical risk associated with a specific stone. Ethical risk is plotted against the 10 ten measures of the ERI, with each value drawn from reports produced by independent ethical auditors, engaged by Marshalls to provide non-biased and honest reporting into levels of risk in that supply chain.
Each of the 10 measure is designed to recognise different and discrete sources of ethical risk. This produces a bespoke, fit for purpose framework designed specifically for the requirements of the stone industry. The radar diagram itself also compares the Marshalls supply chain to the wider industry in that stone, giving users a working comparison of Marshalls supply chain to the industry average, in the opinion of the auditor.
- Modern Slavery Act Awareness
- Supply Chain Visibility
- Income and Employment Security
- Health & Safety
- Employment Freely Chosen
- Empowerment
- Environmental
- Governance
- Corruption and Bribery
- Geo Illuminated Bollard
- Cluster Score
Technical Downloads (5)
- Geo Illuminated Bollard Download Geo Illuminated Bollard Add to Project Geo Illuminated Bollard
- Bollards Luminaire Bollards Geo Illuminated Bollard Download Bollards Luminaire Bollards Geo Illuminated Bollard Add to Project Bollards Luminaire Bollards Geo Illuminated Bollard
NBSPlus
Add All to Project- Bollards Luminaire Bollards Geo Illuminated Bollard Download Bollards Luminaire Bollards Geo Illuminated Bollard Add to Project Bollards Luminaire Bollards Geo Illuminated Bollard
Sketch Up Files
Add All to Project- Geo Illuminated Bollard Download Geo Illuminated Bollard Add to Project Geo Illuminated Bollard
Technical Documents
Add All to Project- street furniture maintenance guide Download street furniture maintenance guide Add to Project street furniture maintenance guide
CAD Details
Add All to Project- geo illuminated bollard Download geo illuminated bollard Add to Project geo illuminated bollard
CAD Files
Add All to Project- geo illuminated bollard Download geo illuminated bollard Add to Project geo illuminated bollard
Product Details
| Product Name | Material | Finish | Diameter (mm) | Length (mm) | Height Above Ground (mm) | Fixing Method | Weight (kg) | Reflective Tape Available | id |
|---|---|---|---|---|---|---|---|---|---|
| Geo Illuminated Bollard Ø 140 18W | Steel | Bead Blasted | 140 | 1455 | 1255 | Sub Surface Mount | 15 | No | Geo Illuminated Bollard Ø 140 18W |
| Geo Illuminated Bollard Ø 140 26W | Steel | Bead Blasted | 140 | 1455 | 1255 | Sub Surface Mount | 15 | No | Geo Illuminated Bollard Ø 140 26W |
| Geo Illuminated Bollard Ø 140 26W Dual Cone | Steel | Bead Blasted | 140 | 1455 | 1255 | Sub Surface Mount | 15 | No | Geo Illuminated Bollard Ø 140 26W Dual Cone |
| Geo Illuminated Bollard Ø 204 42W | Steel | Bead Blasted | 204 | 1453 | 1255 | Sub Surface Mount | 24 | No | Geo Illuminated Bollard Ø 204 42W |
| Geo Illuminated Bollard Ø 204 42W Dual Cone | Steel | Bead Blasted | 204 | 1453 | 1255 | Sub Surface Mount | 24 | No | Geo Illuminated Bollard Ø 204 42W Dual Cone |
| Geo Illuminated Bollard Ø 204 70W Dual Cone | Steel | Bead Blasted | 204 | 1453 | 1255 | Sub Surface Mount | 24 | No | Geo Illuminated Bollard Ø 204 70W Dual Cone |

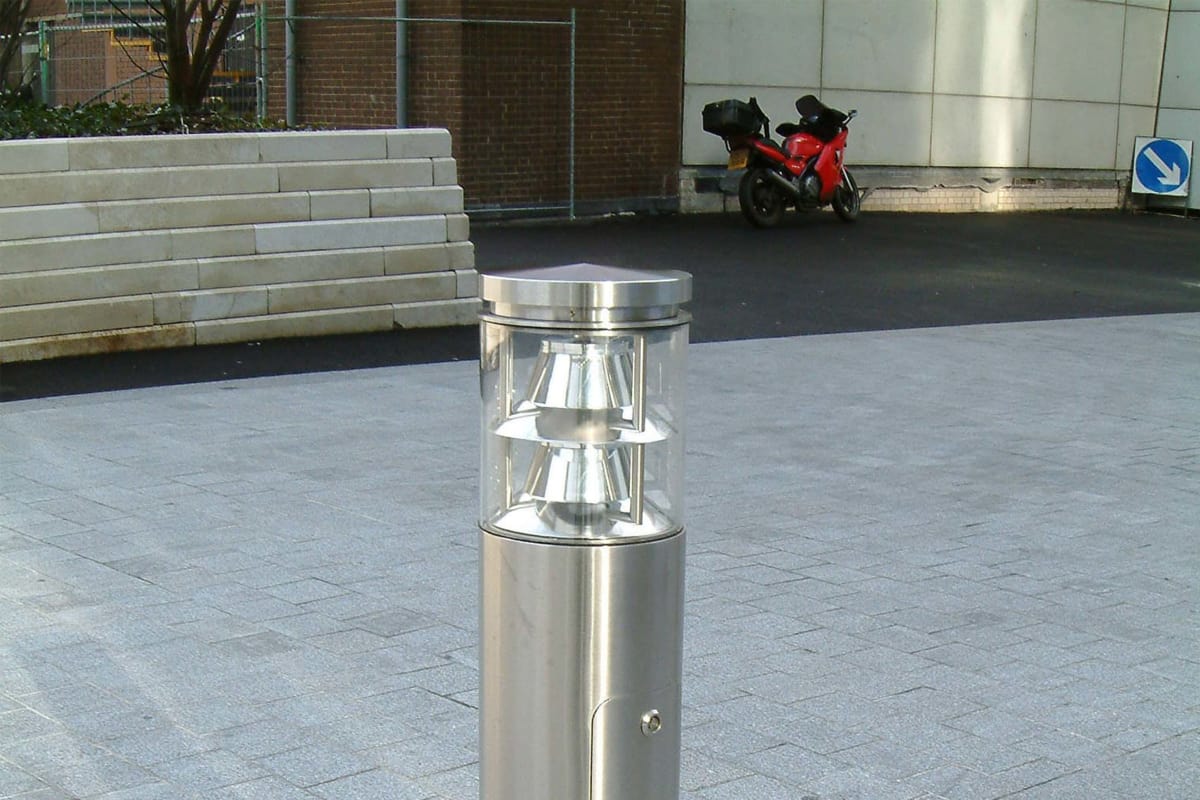

geo illuminated and customised floodlighting bollard
Geo Illuminated Bollard BIM Model
At Marshalls we work alongside appropriate guidelines in which we are able to provide high quality 3D objects of our products that contain rich data to satisfy that information required by our clients.
We strive to improve the relationship with stakeholders and the BIM process enables us to share the relevant information.
- Our BIM models are available to download directly from our BIM library.
- We have a range of models available in AutoDesk Revit format including CoBie, IFC and NBS data.
