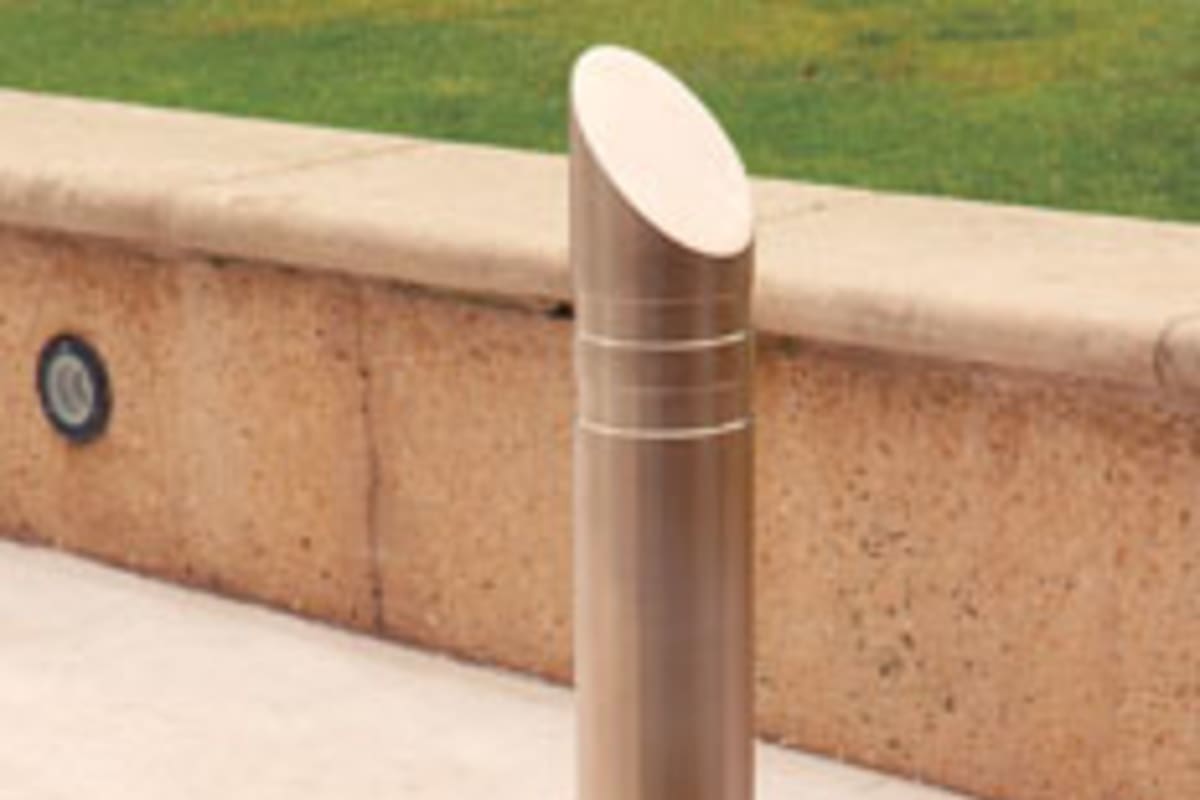

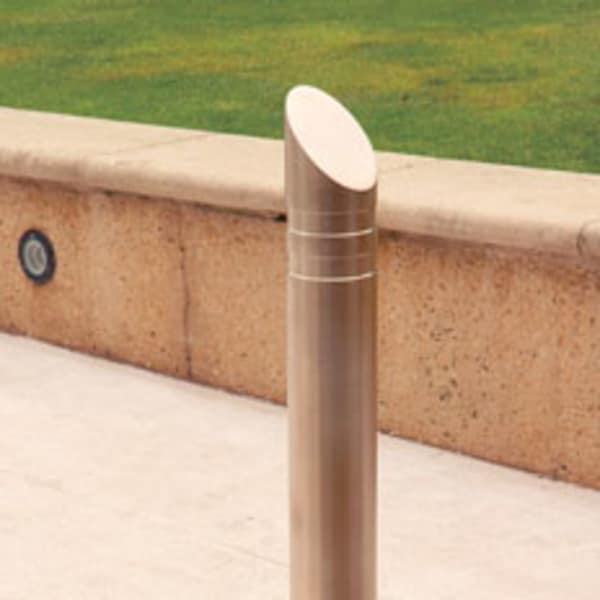

M3 Mitre Top Bollard
Made from 100% recycled stainless steel, the Rhino M3 Mitre Bollard is extremely strong and requires low levels of maintenance. Equipped with a 6mm thick wall for increased strength, it's ideal for pedestrian walkways and car parks.Marshalls' Rhino M3 Mitre Top Bollard is manufactured from quality grade 316 stainless steel and its unique design offers a contemporary aspect to any streetscape. This type of bollard is available in 3 diameter options - 89mm, 114mm and 168mm. Available with a range of optional extras Rhino Stainless Steel Static bollards can be tailored to suit the requirements of your project.
- Made from stainless steel
- 3 optional diameters
- Low maintenance
- Corrosion resistant
Price Range
- £
- £
- £
NBSPlus Codes
Q50 Site/street furniture/equipment
Carbon Footprint
Available on RequestDivision
Contact
01422 312993
Technical Downloads (6)
- Marshalls Rhino M3 Mitre Top Stainless Steel Bollard Download Marshalls Rhino M3 Mitre Top Stainless Steel Bollard Add to Project Marshalls Rhino M3 Mitre Top Stainless Steel Bollard
- street furniture maintenance guide Download street furniture maintenance guide Add to Project street furniture maintenance guide
rhino m3 mitre top stainless steel bollard
Certification Logos and Accreditations
Sketch Up Files
Add All to Project- Marshalls Rhino M3 Mitre Top Stainless Steel Bollard Download Marshalls Rhino M3 Mitre Top Stainless Steel Bollard Add to Project Marshalls Rhino M3 Mitre Top Stainless Steel Bollard
Technical Documents
Add All to Project- street furniture maintenance guide Download street furniture maintenance guide Add to Project street furniture maintenance guide
CAD Details
Add All to Project- m3 mitre top bollard Download m3 mitre top bollard Add to Project m3 mitre top bollard
CAD Files
Add All to Project- m3 mitre top bollard dwg Download m3 mitre top bollard dwg Add to Project m3 mitre top bollard dwg
- m3 mitre top bollard dwg Download m3 mitre top bollard dwg Add to Project m3 mitre top bollard dwg
- m3 mitre top bollard dwg Download m3 mitre top bollard dwg Add to Project m3 mitre top bollard dwg
Product Details
| Product Name | Material | Finish | Diameter (mm) | Height (mm) | Height Above Ground (mm) | Overall Height (mm) | Reflective Tape Available | Reflective Tape Colours | Weight (kg) | Fixing Method |
|---|---|---|---|---|---|---|---|---|---|---|
| M3 Mitre Top Bollard Ø89 Root Fix | Stainless Steel | Brushed Satin | 89 | 900 | 900 | 1200 | Yes | Red | 15 | Root Fixed |
| M3 Mitre Top Bollard Ø89 Surface Mount | Stainless Steel | Brushed Satin | 89 | 900 | 900 | 1200 | Yes | Red | 15 | Surface Mounted |
| M3 Mitre Top Bollard Ø89 Rem | Stainless Steel | Brushed Satin | 89 | 900 | 900 | 1200 | Yes | Red | 16 | Removable |
| M3 Mitre Top Bollard Ø114 Root Fix | Stainless Steel | Brushed Satin | 114 | 900 | 900 | 1200 | Yes | Red | 19 | Root Fixed |
| M3 Mitre Top Bollard Ø114 Surface Mount | Stainless Steel | Brushed Satin | 114 | 900 | 900 | 1200 | Yes | Red | 19 | Surface Mounted |
| M3 Mitre Top Bollard Ø114 Rem | Stainless Steel | Brushed Satin | 114 | 900 | 900 | 1200 | Yes | Red | 20 | Removable |
| M3 Mitre Top Bollard Ø168 Root Fix | Stainless Steel | Brushed Satin | 168 | 900 | 900 | 1200 | Yes | Red | 27 | Root Fixed |
| M3 Mitre Top Bollard Ø168 Surface Mount | Stainless Steel | Brushed Satin | 168 | 900 | 900 | 1200 | Yes | Red | 27 | Surface Mounted |
