Mono Beany
With an innovative design that combines strength and durability with aesthetics, Marshalls Civils and Drainage' Mono Beany provides a practical and long-lasting solution to kerb drainage.
Its construction combines high-strength M-Tech concrete, cast around a 100% recycled polyethylene core, which provides all the benefits of hydraulic flow at low capacities. Manufactured as a single piece, Mono Beany offers a streamlined aesthetic suitable for a wide range of applications.
Marshalls Civils and Drainage' Mono Beany is available in two depths and in both Half Battered and 45˚ Splayed profiles. With a loading classification of D400, it is suitable for all road-going vehicles, providing usage across a variety of applications.
Suitable for use with a range of accessories, Mono Beany provides a comprehensive and highly effective drainage system which carries the BSI Kitemark.
- Manufactured from high-strength M-Tech concrete with a recycled PE core
- Available in 2 depths in both Half Battered and 45˚ Splayed profiles
- D400 loading classification
- Available with a range of accessories
- Innovative design
Price Range
- £
- £
- £
Maximum Loading Classification i✕This is the maximum loading for the product.
However this is subject to using the appropriate installation method, bond pattern and the sub-base design.
For tailored support with a pavement design, please contact us:
grouptechnicalservices@marshalls.co.uk
✕This is the maximum loading for the product.
However this is subject to using the appropriate installation method, bond pattern and the sub-base design.
For tailored support with a pavement design, please contact us:
grouptechnicalservices@marshalls.co.uk
However this is subject to using the appropriate installation method, bond pattern and the sub-base design.
For tailored support with a pavement design, please contact us:
grouptechnicalservices@marshalls.co.uk
D400
NBSPlus Codes
Q10 190
Drainage Capacity
Low to Medium
Carbon Footprint
Available on RequestDivision
Contact
0345 302 0400
Technical Downloads (8)
- dop Download dop Add to Project dop
- Mono Beany Datasheet Download Mono Beany Datasheet Add to Project Mono Beany Datasheet
Certification Logos and Accreditations
Datasheets
Add All to Project- Mono Beany Datasheet Download Mono Beany Datasheet Add to Project Mono Beany Datasheet
NBSPlus
Add All to Project- Water Management Mono Beany Download Water Management Mono Beany Add to Project Water Management Mono Beany
CE Mark
Add All to ProjectTechnical Documents
Add All to Project- mono beany - installation guide Download mono beany - installation guide Add to Project mono beany - installation guide
- mono-beany-design-guide-pdf Download mono-beany-design-guide-pdf Add to Project mono-beany-design-guide-pdf
- introduction-design-guide-pdf Download introduction-design-guide-pdf Add to Project introduction-design-guide-pdf
Microdrainage Models
Add All to Project- marshalls - microdrainage model Download marshalls - microdrainage model Add to Project marshalls - microdrainage model
CAD Details
Add All to Project- Mono_Beany_Technical_Standards.dwg Download Mono_Beany_Technical_Standards.dwg Add to Project Mono_Beany_Technical_Standards.dwg
| Product Name | id | Length (mm) | Width (mm) | Commercial Units per Pack | Approx Pack Weight (kg) | Made to Stock / Made to Order | Height (mm) |
|---|---|---|---|---|---|---|---|
| 321 Half Battered 1000 Channel | DR6630300 | 1000 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Stock | 321 |
| 321 Half Battered 500 Channel | DR6630350 | 500 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Stock | 321 |
| 502 Half Battered 1000 Channel | DR6630400 | 1000 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Stock | 502 |
| 502 Half Battered 500 Channel | DR6630450 | 500 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Order | 502 |
| 321 45 Degree Splay 1000 Channel | DR6631200 | 1000 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Stock | 321 |
| 321 45 Degree Splay 500 Channel | DR6631250 | 500 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Stock | 321 |
| 502 45 Degree Splay 1000 Channel | DR6631300 | 1000 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Stock | 502 |
| 502 45 Degree Splay 500 Channel | DR6631350 | 500 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Order | 502 |
| Product Name | id | Length (mm) | Width (mm) | Commercial Units per Pack | Approx Pack Weight (kg) | Made to Stock / Made to Order | Height (mm) |
|---|---|---|---|---|---|---|---|
| 321 Half Battered Right Hand Dropper | DR6630900 | 1000 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Stock | |
| 502 Half Battered Right Hand Dropper | DR6630950 | 1000 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Order | |
| 321 Half Battered Left Hand Dropper | DR6631000 | 1000 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Stock | |
| 502 Half Battered Left Hand Dropper | DR6631050 | 1000 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Order | |
| 321 Half Battered Centre Stone | DR6631100 | 1000 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Stock | 202 |
| 502 Half Battered Centre Stone | DR6631150 | 1000 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Order | 383 |
| 321 45 Degree Splay Right Hand Dropper | DR6632900 | 1000 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Stock | |
| 502 45 Degree Splay Right Hand Dropper | DR6632950 | 1000 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Order | |
| 321 45 Degree Splay Left Hand Dropper | DR6633000 | 1000 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Stock | |
| 502 45 Degree Splay Left Hand Dropper | DR6633050 | 1000 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Order | |
| 321 45 Degree Splay Centre Stone | DR6633100 | 1000 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Stock | 202 |
| 502 45 Degree Centre Stone | DR6633150 | 1000 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Order | 383 |
| Product Name | id | Commercial Units per Pack | Approx Pack Weight (kg) | Made to Stock / Made to Order |
|---|---|---|---|---|
| 321 Cap Outlet | DR6642250 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Order |
| 502 Cap Outlet | DR6642300 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Order |
| 321 Channel End Cap | DR6642350 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Stock |
| 502 Channel End Cap | DR6642400 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Stock |
| Product Name | id | Length (mm) | Commercial Units per Pack | Approx Pack Weight (kg) | Made to Stock / Made to Order | Height (mm) |
|---|---|---|---|---|---|---|
| Half Battered Universal Access Cover | DR6640100 | 500 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Stock | 225 |
| 45 Degree Splay Universal Access Cover | DR6640200 | 500 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Stock | 225 |
| Side Outfall | DR6641800 | 500 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Stock | |
| 321 Rodding Box | DR6641850 | 500 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Stock | |
| 321 Silt Box | DR6641870 | 500 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Stock | |
| 502 Rodding Box | DR6641900 | 500 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Stock | |
| 502 Silt Box | DR6641920 | 500 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Stock |
| Product Name | id | Length (mm) | Width (mm) | Commercial Units per Pack | Approx Pack Weight (kg) | Made to Stock / Made to Order | Height (mm) |
|---|---|---|---|---|---|---|---|
| 321 Half Battered Radius Channel Internal 5/9m | DR6630500 | 500 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Order | 321 |
| 321 Half Battered Radius Channel Internal 20/10m | DR6630550 | 500 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Order | 321 |
| 502 Half Battered Radius Channel Internal 5/9m | DR6630600 | 500 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Order | 502 |
| 502 Half Battered Radius Channel Internal 20/10m | DR6630650 | 500 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Order | 502 |
| 321 Half Battered Radius Channel External 5/9m | DR6630700 | 500 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Order | 321 |
| 321 Half Battered Radius Channel External 20/10m | DR6630750 | 500 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Order | 321 |
| 502 Half Battered Radius Channel External 5/9m | DR6630800 | 500 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Order | 502 |
| 502 Half Battered Radius Channel External 20/10m | DR6630850 | 500 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Order | 502 |
| 321 45 Degree Splay Radius Channel Internal 5/9m | DR6631400 | 500 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Order | 321 |
| 321 45 Degree Splay Radius Channel Internal 20/10m | DR6631450 | 500 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Order | 321 |
| 502 45 Degree Splay Radius Channel Internal 5/9m | DR6631500 | 500 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Order | 502 |
| 502 45 Degree Splay Radius Channel Internal 20/10m | DR6631550 | 500 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Order | 502 |
| 321 45 Degree Splay Radius Channel External 5/9m | DR6631600 | 500 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Order | 321 |
| 321 45 Degree Splay Radius Channel External 20/10m | DR6631650 | 500 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Order | 321 |
| 502 45 Degree Splay Radius Channel External 5/9m | DR6631700 | 500 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Order | 502 |
| 502 45 Degree Splay Radius Channel External 20/10m | DR6631750 | 500 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Order | 502 |
| Product Name | id | Length (mm) | Width (mm) | Commercial Units per Pack | Approx Pack Weight (kg) | Made to Stock / Made to Order | Height (mm) |
|---|---|---|---|---|---|---|---|
| 502 - 321 Half Battered Right Hand Transition Channel | DR6633200 | 1000 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Order | 502 |
| 502 - 321 Half Battered Left Hand Transition Channel | DR6633210 | 1000 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Order | 502 |
| 502 - 321 45 Degree Splay Right Hand Transition Channel | DR6633250 | 1000 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Order | 502 |
| 502 - 321 45 Degree Splay Left Hand Transition Channel | DR6633260 | 1000 | 150 | Pallet packed for individual contracts | Maximum 1.0 tonnes | Made To Order | 502 |

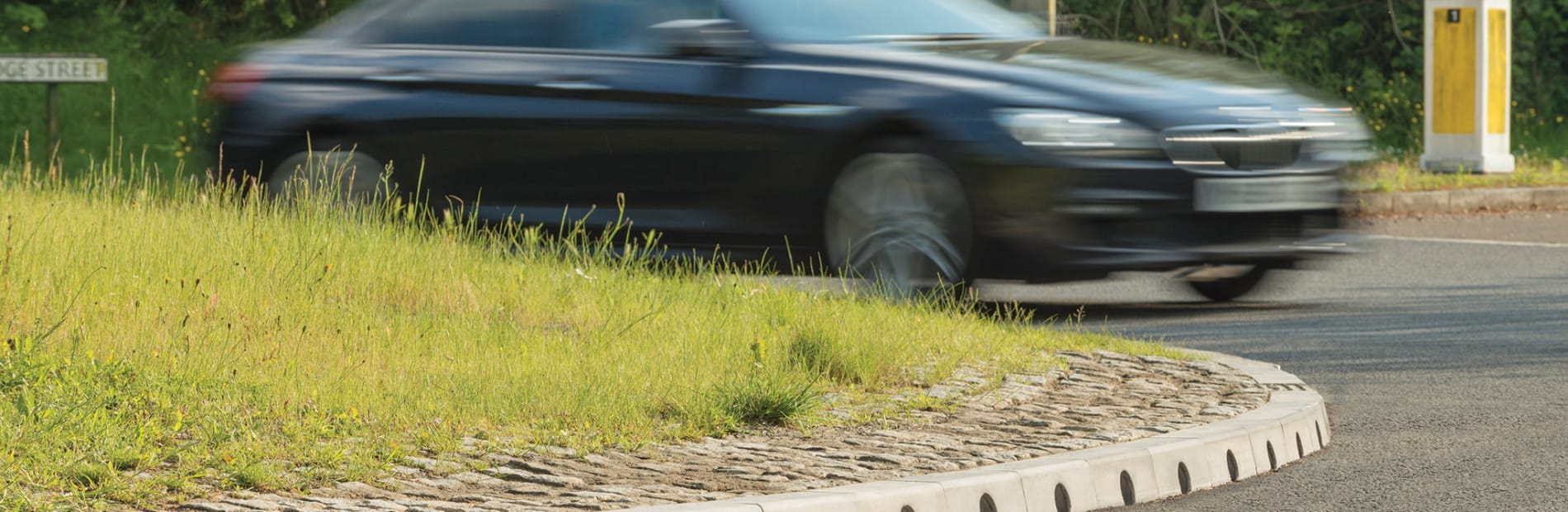

marshalls mono beany standard grey

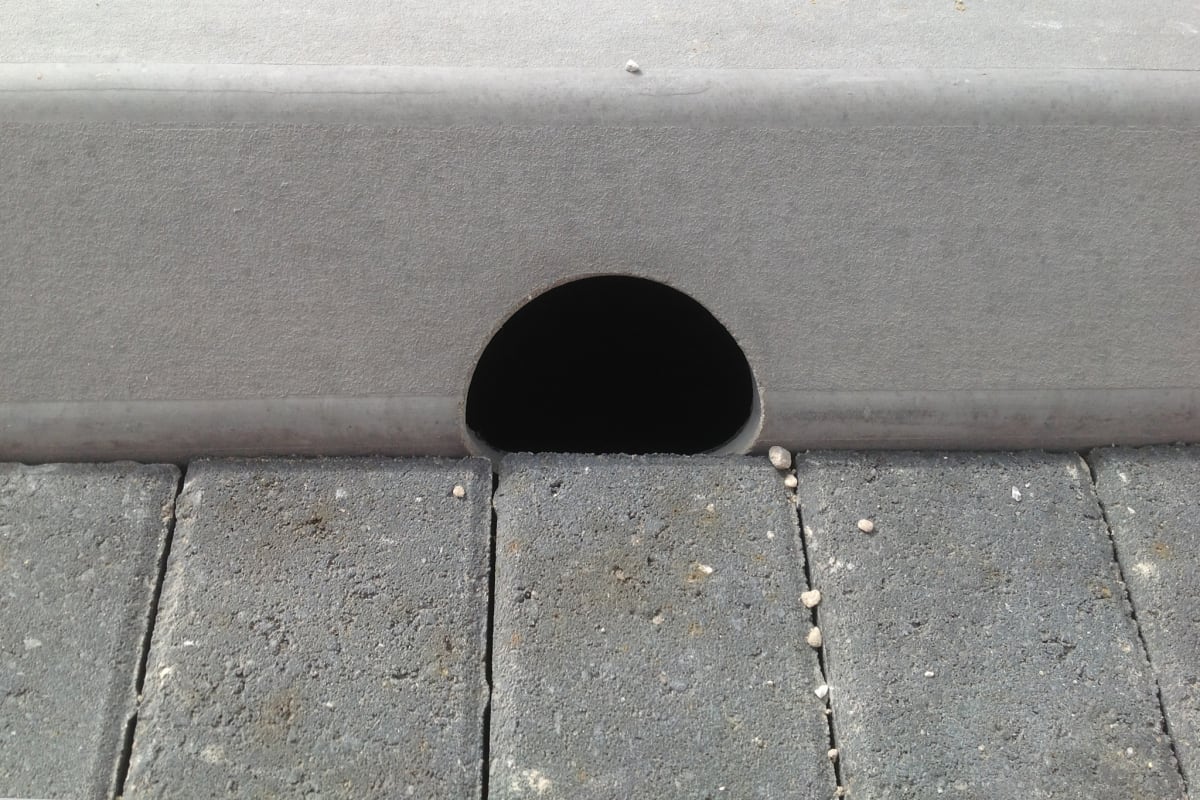

marshalls - mono beany half battered 1000mm 321

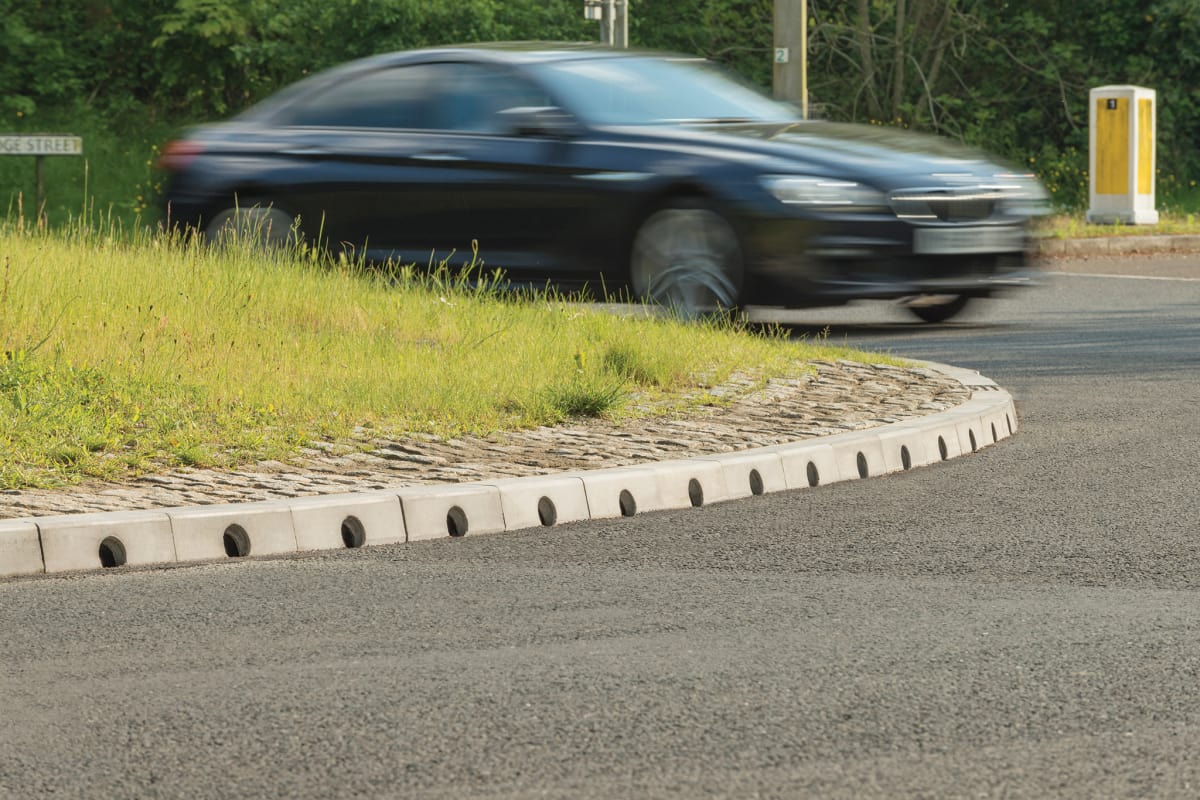

marshalls mono beany standard grey
Mono Beany BIM Model
At Marshalls we work alongside appropriate guidelines in which we are able to provide high quality 3D objects of our products that contain rich data to satisfy that information required by our clients.
We strive to improve the relationship with stakeholders and the BIM process enables us to share the relevant information.
- Our BIM models are available to download directly from our BIM library.
- We have a range of models available in AutoDesk Revit format including CoBie, IFC and NBS data.
