RB101 Bollard

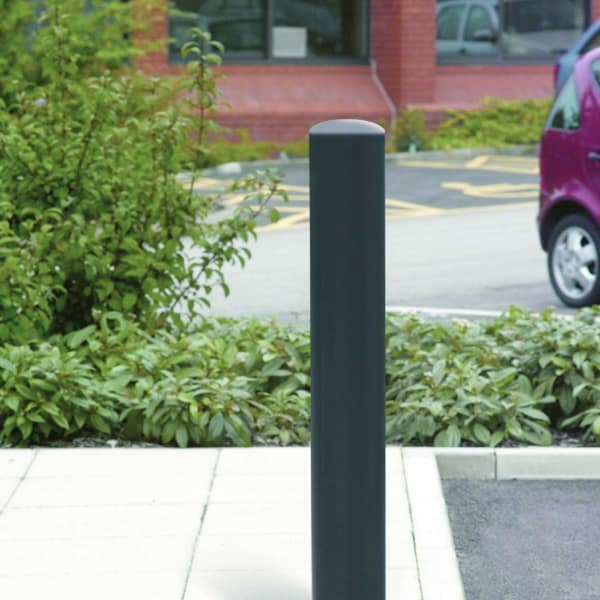

A Rhino Steel Bollard, the RB101 Bollard provides robust security to any environment. An exceptionally strong, hot dip galvanised bollard, the standard model has increased internal strength, with an option to add a steel joist to enhance its durability. This makes the RB101 ideal for deterring ram raids and preventing vehicles from passing the protected perimeter. As well as the standard root fixing, two other fixing types are offered; base plate or lift out and lockable.One of the most popular bollards in the Marshalls range, the RB101 Bollard is available in a wide range of customisation options. The standard finish is polyester power coated in RAL black 9005, but almost any RAL colour or British Standard colour can be requested. All Rhino Bollards are available with Class 2 reflective hazard banding, in red, amber or white, to increase visibility and safety. The bollard features an optional chain connector, and has 3 height above ground options available - 1200mm, 1000mm and 900mm.
- Standard or anti-ram models
- Features optional chain connectors, hazard banding and flat cap
- Root, base plate or lift out and lock fixings
- 3 height options
- 4 diameter options
Price Range
- £
- £
- £
NBSPlus Codes
Q50 Site/street furniture/equipment
Carbon Footprint
Available on RequestEthical Risk Index
This Radar diagram illustrates the level of ethical risk associated with a specific stone. Ethical risk is plotted against the 10 ten measures of the ERI, with each value drawn from reports produced by independent ethical auditors, engaged by Marshalls to provide non-biased and honest reporting into levels of risk in that supply chain.
Each of the 10 measure is designed to recognise different and discrete sources of ethical risk. This produces a bespoke, fit for purpose framework designed specifically for the requirements of the stone industry. The radar diagram itself also compares the Marshalls supply chain to the wider industry in that stone, giving users a working comparison of Marshalls supply chain to the industry average, in the opinion of the auditor.
- Modern Slavery Act Awareness
- Supply Chain Visibility
- Income and Employment Security
- Health & Safety
- Employment Freely Chosen
- Empowerment
- Environmental
- Governance
- Corruption and Bribery
- RB101 Bollard
- Cluster Score
Technical Downloads (3)
- Bollards Steel Bollards R B101 Steel Bollard Download Bollards Steel Bollards R B101 Steel Bollard Add to Project Bollards Steel Bollards R B101 Steel Bollard
- street furniture maintenance guide Download street furniture maintenance guide Add to Project street furniture maintenance guide
Certification Logos and Accreditations
NBSPlus
Add All to Project- Bollards Steel Bollards R B101 Steel Bollard Download Bollards Steel Bollards R B101 Steel Bollard Add to Project Bollards Steel Bollards R B101 Steel Bollard
Technical Documents
Add All to Project- street furniture maintenance guide Download street furniture maintenance guide Add to Project street furniture maintenance guide
CAD Details
Add All to Project- rhino rb101 bollard Download rhino rb101 bollard Add to Project rhino rb101 bollard
Product Details
| Product Name | Material | Finish | Diameter (mm) | Length (mm) | Height Above Ground (mm) | Fixing Method | Weight (kg) | Reflective Tape Available | id |
|---|---|---|---|---|---|---|---|---|---|
| RB101 Bollard Anti Ram Ø114mm | Steel | Galvanised and Powder Coated | 114 | 1500 | 1000 | Anti Ram | 28 | Yes | RB101 Bollard Anti Ram Ø114mm |
| RB101 Bollard Anti Ram Ø139mm | Steel | Galvanised and Powder Coated | 139 | 1500 | 1000 | Anti Ram | 33 | Yes | RB101 Bollard Anti Ram Ø139mm |
| RB101 Bollard Anti Ram Ø168mm | Steel | Galvanised and Powder Coated | 168 | 1500 | 1000 | Anti Ram | 47 | Yes | RB101 Bollard Anti Ram Ø168mm |
| RB101 Bollard Anti Ram Ø194mm | Steel | Galvanised and Powder Coated | 194 | 1500 | 1000 | Anti Ram | 52 | Yes | RB101 Bollard Anti Ram Ø194mm |
| RB101 Bollard Removable Ø114mm | Steel | Galvanised and Powder Coated | 114 | 1500 | 1000 | Removable | 20 | Yes | RB101 Bollard Removable Ø114mm |
| RB101 Bollard Removable Ø139mm | Steel | Galvanised and Powder Coated | 139 | 1500 | 1000 | Removable | 27 | Yes | RB101 Bollard Removable Ø139mm |
| RB101 Bollard Removable Ø168mm | Steel | Galvanised and Powder Coated | 168 | 1500 | 1000 | Removable | 30 | Yes | RB101 Bollard Removable Ø168mm |
| RB101 Bollard Root Fixed Ø114mm | Steel | Galvanised and Powder Coated | 114 | 1500 | 1000 | Root Fixed | 21 | Yes | RB101 Bollard Root Fixed Ø114mm |
| RB101 Bollard Root Fixed Ø139mm | Steel | Galvanised and Powder Coated | 139 | 1500 | 1000 | Root Fixed | 25 | Yes | RB101 Bollard Root Fixed Ø139mm |
| RB101 Bollard Root Fixed Ø168mm | Steel | Galvanised and Powder Coated | 168 | 1500 | 1000 | Root Fixed | 31 | Yes | RB101 Bollard Root Fixed Ø168mm |
| RB101 Bollard Root Fixed Ø194mm | Steel | Galvanised and Powder Coated | 194 | 1500 | 1000 | Root Fixed | 36 | Yes | RB101 Bollard Root Fixed Ø194mm |
| RB101 Bollard Surface Mount Ø114mm | Steel | Galvanised and Powder Coated | 114 | 1000 | 1000 | Surface Mounted | 18 | Yes | RB101 Bollard Surface Mount Ø114mm |
| RB101 Bollard Surface Mount Ø139mm | Steel | Galvanised and Powder Coated | 139 | 1000 | 1000 | Surface Mounted | 20 | Yes | RB101 Bollard Surface Mount Ø139mm |
| RB101 Bollard Surface Mount Ø168mm | Steel | Galvanised and Powder Coated | 168 | 1000 | 1000 | Surface Mounted | 24 | Yes | RB101 Bollard Surface Mount Ø168mm |
| RB101 Bollard Surface Mount Ø194mm | Steel | Galvanised and Powder Coated | 194 | 1000 | 1000 | Surface Mounted | 24 | Yes | RB101 Bollard Surface Mount Ø194mm |
