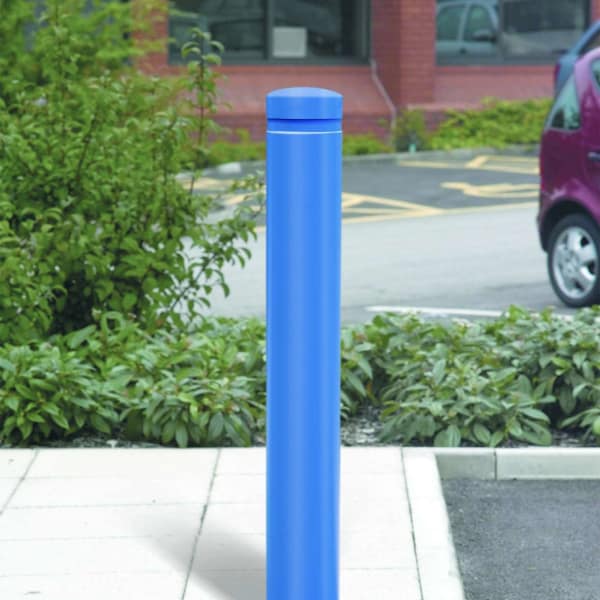

RB109 Bollard
Delivering excellent perimeter security within different environments, as well protected parking and the effective demarcation of pedestrian walkways, the RB109 Bollard is suitable for any urban mixed-use application.Rhino steel bollards are manufactured using galvanised steel, specified to BS EN ISO 1461 (1999) for durability and added strength. The optional anti-ram model specification is equipped with a steel joist for increased internal strength and to prevent vehicles penetrating beyond the bollard.Rhino bollards offer flexibility in choices; the RB109 bollard has a height above ground of 1000mm, but shorter versions are also available. Specified to RAL Black 9005 as standard (other colours are available), choose optional Class 2 reflective hazard banding in amber, white or red, depending on project requirements. Other product options include fixing methods and chain connectors.
- Manufactured from steel
- Standard or anti-ram models
- Features optional chain connectors and hazard banding
- Root, base plate or lift out and lock fixings
- 3 height options
Price Range
- £
- £
- £
NBSPlus Codes
Q50 Site/street furniture/equipment
Carbon Footprint
Available on RequestTechnical Downloads (3)
- Bollards Steel Bollards R B109 Steel Bollard Download Bollards Steel Bollards R B109 Steel Bollard Add to Project Bollards Steel Bollards R B109 Steel Bollard
- street furniture maintenance guide Download street furniture maintenance guide Add to Project street furniture maintenance guide

Certification Logos and Accreditations
NBSPlus
Add All to Project- Bollards Steel Bollards R B109 Steel Bollard Download Bollards Steel Bollards R B109 Steel Bollard Add to Project Bollards Steel Bollards R B109 Steel Bollard
Technical Documents
Add All to Project- street furniture maintenance guide Download street furniture maintenance guide Add to Project street furniture maintenance guide
CAD Details
Add All to Project- rhino rb109 bollard Download rhino rb109 bollard Add to Project rhino rb109 bollard
Product Details
Product Name | Material | Finish | Diameter (mm) | Height (mm) | Reflective Tape Available | Reflective Tape Colours | Weight (kg) | Fixing Method |
---|---|---|---|---|---|---|---|---|
RB109 Bollard Anti Ram Ø114mm | Steel | Galvanised and Powder Coated | 114 | 1000 | Yes | Red, White or Yellow | 28 | Anti Ram |
RB109 Bollard Anti Ram Ø139mm | Steel | Galvanised and Powder Coated | 139 | 1000 | Yes | Red, White or Yellow | 33 | Anti Ram |
RB109 Bollard Anti Ram Ø168mm | Steel | Galvanised and Powder Coated | 168 | 1000 | Yes | Red, White or Yellow | 47 | Anti Ram |
RB109 Bollard Anti Ram Ø194mm | Steel | Galvanised and Powder Coated | 194 | 1000 | Yes | Red, White or Yellow | 52 | Anti Ram |
RB109 Bollard Removable Ø114mm | Steel | Galvanised and Powder Coated | 114 | 1000 | Yes | Red, White or Yellow | 20 | Removable |
RB109 Bollard Removable Ø139mm | Steel | Galvanised and Powder Coated | 139 | 1000 | Yes | Red, White or Yellow | 27 | Removable |
RB109 Bollard Removable Ø168mm | Steel | Galvanised and Powder Coated | 168 | 1000 | Yes | Red, White or Yellow | 30 | Removable |
RB109 Bollard Root Fixed Ø114mm | Steel | Galvanised and Powder Coated | 114 | 1000 | Yes | Red, White or Yellow | 21 | Root Fixed |
RB109 Bollard Root Fixed Ø139mm | Steel | Galvanised and Powder Coated | 139 | 1000 | Yes | Red, White or Yellow | 25 | Root Fixed |
RB109 Bollard Root Fixed Ø168mm | Steel | Galvanised and Powder Coated | 168 | 1000 | Yes | Red, White or Yellow | 31 | Root Fixed |
RB109 Bollard Root Fixed Ø194mm | Steel | Galvanised and Powder Coated | 194 | 1000 | Yes | Red, White or Yellow | 36 | Root Fixed |
RB109 Bollard Surface Mount Ø114mm | Steel | Galvanised and Powder Coated | 114 | 1000 | Yes | Red, White or Yellow | 18 | Surface Mounted |
RB109 Bollard Surface Mount Ø139mm | Steel | Galvanised and Powder Coated | 139 | 1000 | Yes | Red, White or Yellow | 20 | Surface Mounted |
RB109 Bollard Surface Mount Ø168mm | Steel | Galvanised and Powder Coated | 168 | 1000 | Yes | Red, White or Yellow | 24 | Surface Mounted |
RB109 Bollard Surface Mount Ø194mm | Steel | Galvanised and Powder Coated | 194 | 1000 | Yes | Red, White or Yellow | 30 | Surface Mounted |
