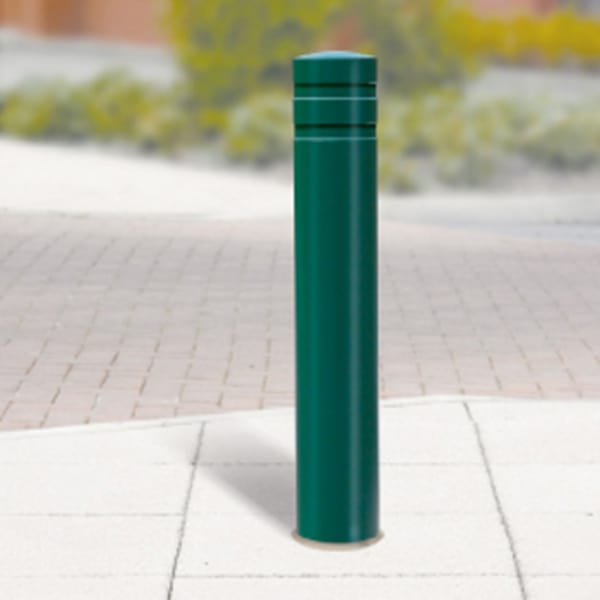

RB111 Bollard
Rhino's static steel RB 111 Bollard is designed provide security and effective demarcation between pedestrians and vehicular traffic in any urban environment. Styled with a semi-domed top and a double indent, the RB 111 bollard is manufactured in steel, hot dip galvanised to ISO 1461: 1999 for durability. It is polyester powder coated to add further durability and reduce degradation. It can be specified to anti-ram requirements with internal steel joist reinforcement added to prevent penetration beyond the battier. Other variants are suitable for protected parking and the demarcation of pedestrian walkways.The RB 111 has an optional chain connectors, and is supplied with a choice of root fixing, surface mount fixing or removable which means it's versatile enough for various settings. The standard height above ground is 1000mm, and the product is available in a choice of RAL colours.
- Standard or anti-ram models
- Manufactured from galvanised steel
- Features optional chain connectors and hazard banding
- Root, base plate or lift out and lock fixings
- Three height options
Price Range
- £
- £
- £
NBSPlus Codes
Q50 Site/street furniture/equipment
Carbon Footprint
Available on RequestEthical Risk Index
This Radar diagram illustrates the level of ethical risk associated with a specific stone. Ethical risk is plotted against the 10 ten measures of the ERI, with each value drawn from reports produced by independent ethical auditors, engaged by Marshalls to provide non-biased and honest reporting into levels of risk in that supply chain.
Each of the 10 measure is designed to recognise different and discrete sources of ethical risk. This produces a bespoke, fit for purpose framework designed specifically for the requirements of the stone industry. The radar diagram itself also compares the Marshalls supply chain to the wider industry in that stone, giving users a working comparison of Marshalls supply chain to the industry average, in the opinion of the auditor.
- Modern Slavery Act Awareness
- Supply Chain Visibility
- Income and Employment Security
- Health & Safety
- Employment Freely Chosen
- Empowerment
- Environmental
- Governance
- Corruption and Bribery
- RB111 Bollard
- Cluster Score
Technical Downloads (3)
- Bollards Steel Bollards R B111 Steel Bollard Download Bollards Steel Bollards R B111 Steel Bollard Add to Project Bollards Steel Bollards R B111 Steel Bollard
- street furniture maintenance guide Download street furniture maintenance guide Add to Project street furniture maintenance guide
Certification Logos and Accreditations
NBSPlus
Add All to Project- Bollards Steel Bollards R B111 Steel Bollard Download Bollards Steel Bollards R B111 Steel Bollard Add to Project Bollards Steel Bollards R B111 Steel Bollard
Technical Documents
Add All to Project- street furniture maintenance guide Download street furniture maintenance guide Add to Project street furniture maintenance guide
CAD Details
Add All to Project- rhino rb111 bollard Download rhino rb111 bollard Add to Project rhino rb111 bollard
Product Details
| Product Name | Material | Finish | Diameter (mm) | Length (mm) | Height Above Ground (mm) | Fixing Method | Weight (kg) | Reflective Tape Available | id |
|---|---|---|---|---|---|---|---|---|---|
| RB111 Bollard Anti Ram Ø114mm | Steel | Galvanised and Powder Coated | 114 | 1500 | 1000 | Anti Ram | 28 | Yes | RB111 Bollard Anti Ram Ø114mm |
| RB111 Bollard Anti Ram Ø139mm | Steel | Galvanised and Powder Coated | 139 | 1500 | 1000 | Anti Ram | 33 | Yes | RB111 Bollard Anti Ram Ø139mm |
| RB111 Bollard Anti Ram Ø168mm | Steel | Galvanised and Powder Coated | 168 | 1500 | 1000 | Anti Ram | 47 | Yes | RB111 Bollard Anti Ram Ø168mm |
| RB111 Bollard Anti Ram Ø194mm | Steel | Galvanised and Powder Coated | 194 | 1500 | 1000 | Anti Ram | 52 | Yes | RB111 Bollard Anti Ram Ø194mm |
| RB111 Bollard Removable Ø114mm | Steel | Galvanised and Powder Coated | 114 | 1500 | 1000 | Removable | 20 | Yes | RB111 Bollard Removable Ø114mm |
| RB111 Bollard Removable Ø139mm | Steel | Galvanised and Powder Coated | 139 | 1500 | 1000 | Removable | 27 | Yes | RB111 Bollard Removable Ø139mm |
| RB111 Bollard Removable Ø168mm | Steel | Galvanised and Powder Coated | 168 | 1500 | 1000 | Removable | 30 | Yes | RB111 Bollard Removable Ø168mm |
| RB111 Bollard Root Fixed Ø114mm | Steel | Galvanised and Powder Coated | 114 | 1500 | 1000 | Root Fixed | 20 | Yes | RB111 Bollard Root Fixed Ø114mm |
| RB111 Bollard Root Fixed Ø139mm | Steel | Galvanised and Powder Coated | 139 | 1500 | 1000 | Root Fixed | 25 | Yes | RB111 Bollard Root Fixed Ø139mm |
| RB111 Bollard Root Fixed Ø168mm | Steel | Galvanised and Powder Coated | 168 | 1500 | 1000 | Root Fixed | 31 | Yes | RB111 Bollard Root Fixed Ø168mm |
| RB111 Bollard Root Fixed Ø194mm | Steel | Galvanised and Powder Coated | 194 | 1500 | 1000 | Root Fixed | 36 | Yes | RB111 Bollard Root Fixed Ø194mm |
| RB111 Bollard Surface Mount Ø114mm | Steel | Galvanised and Powder Coated | 114 | 1000 | 1000 | Surface Mounted | 18 | Yes | RB111 Bollard Surface Mount Ø114mm |
| RB111 Bollard Surface Mount Ø139mm | Steel | Galvanised and Powder Coated | 139 | 1000 | 1000 | Surface Mounted | 20 | Yes | RB111 Bollard Surface Mount Ø139mm |
| RB111 Bollard Surface Mount Ø168mm | Steel | Galvanised and Powder Coated | 168 | 1000 | 1000 | Surface Mounted | 24 | Yes | RB111 Bollard Surface Mount Ø168mm |
| RB111 Bollard Surface Mount Ø194mm | Steel | Galvanised and Powder Coated | 194 | 1000 | 1000 | Surface Mounted | 30 | Yes | RB111 Bollard Surface Mount Ø194mm |
