RhinoGuard® 75/30 Protective Bollard
The RhinoGuard PAS68 75/30 bollard provides maximum protection with minimal excavation. It is particularly suited to sites that require counter-terrorism protection but where excavation is limited due to underground utilities or cramped building foundations. With a core diameter of 194mm and a foundation depth of 152mm, the bollard meets the requirements of BSI PAS68 and is designed to withstand the impact of a fully laden 7.5 tonne two axle rigid N2 lorry travelling at 30mph.The perfect solution for sites with even the smallest available depths, the innovative RhinoGuard Shallow Mount system requires around 75% less excavation than some standard PAS68 bollard systems. All RhinoGuard bollards can can sleeved in different materials and styles including stainless steel, steel and Ferrocast.
This product is capable of withstanding a 7.5 tonne vehicle travelling at 30mph. The security classification is V/7500(N2)/48/90:0.0/0.0
- Minimal excavation required
- Able to withstand hostile vehicle impact
- Choice of three sleeve options, steel, stainless steel and Ferrocast
- Meets BSI PAS68
Technical Downloads (4)
- Bollards Protective Bollards Rhino Guard7530 Shallow Mount Protective P A S Rated Bollard Download Bollards Protective Bollards Rhino Guard7530 Shallow Mount Protective P A S Rated Bollard Add to Project Bollards Protective Bollards Rhino Guard7530 Shallow Mount Protective P A S Rated Bollard
- street furniture maintenance guide Download street furniture maintenance guide Add to Project street furniture maintenance guide
Certification Logos and Accreditations
NBSPlus
Add All to Project- Bollards Protective Bollards Rhino Guard7530 Shallow Mount Protective P A S Rated Bollard Download Bollards Protective Bollards Rhino Guard7530 Shallow Mount Protective P A S Rated Bollard Add to Project Bollards Protective Bollards Rhino Guard7530 Shallow Mount Protective P A S Rated Bollard
Technical Documents
Add All to Project- street furniture maintenance guide Download street furniture maintenance guide Add to Project street furniture maintenance guide
CAD Details
Add All to Project- rhinoguard 75 30 protective shallowmount bollard steel Download rhinoguard 75 30 protective shallowmount bollard steel Add to Project rhinoguard 75 30 protective shallowmount bollard steel
- rhinoguard 75 30 protective shallowmount bollard steel Download rhinoguard 75 30 protective shallowmount bollard steel Add to Project rhinoguard 75 30 protective shallowmount bollard steel
Product Details
| Product Name | Sleeve Material | Sleeve Finish | Core Diameter (mm) | Sleeve Diameter (mm) | Height Above Ground (mm) | Fixing Method | Core Weight (kg) | Sleeve Weight (kg) | Reflective Tape Available | Length (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RhinoGuard® 75/30 Protective Bollard Steel | Steel | Galvanised & Powder Coated | 194 | 204 | 1000 | Cast in Foundation | 360 | 27 | Yes | 1350 | 1000 | 387 |
| RhinoGuard® 75/30 Protective Bollard Stainless Steel | Grade 316 Stainless Steel | Brushed | 194 | 204 | 1000 | Cast in Foundation | 360 | 12 | Yes | 1250 | 1000 | 372 |

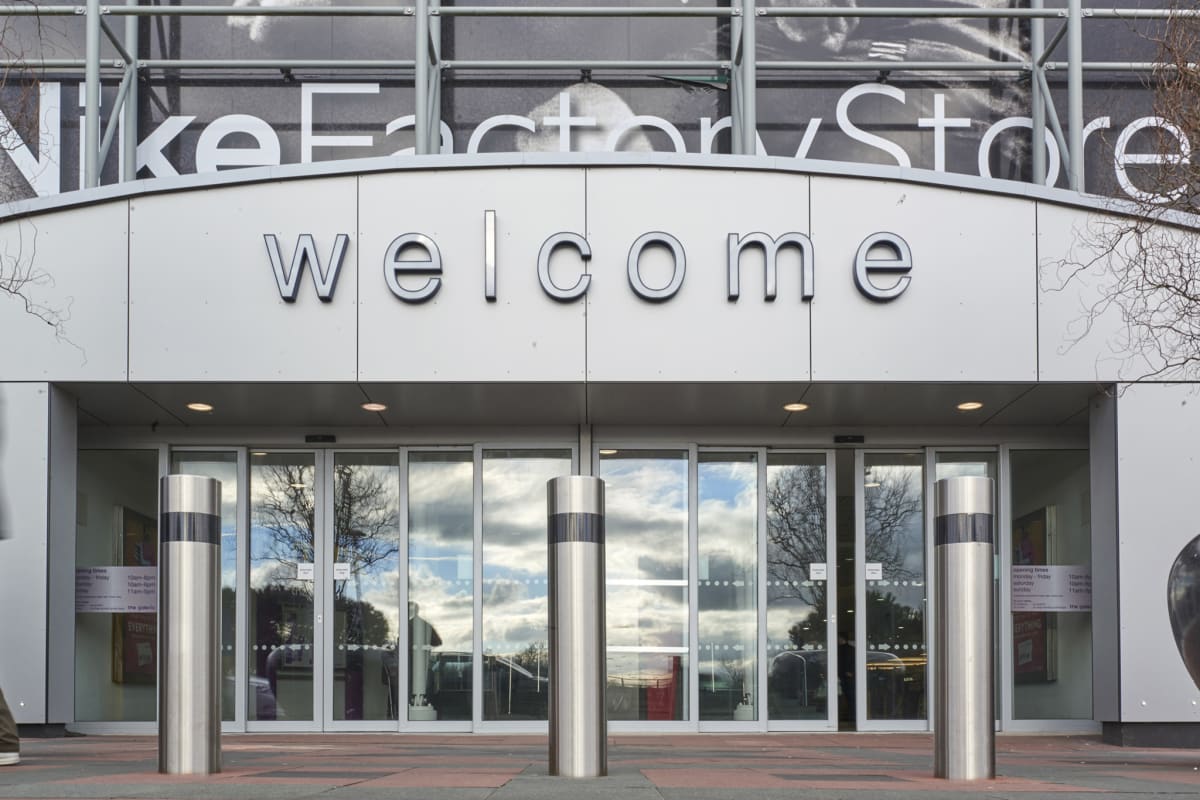

rhinoguard 75/30 stainless steel protective bollards

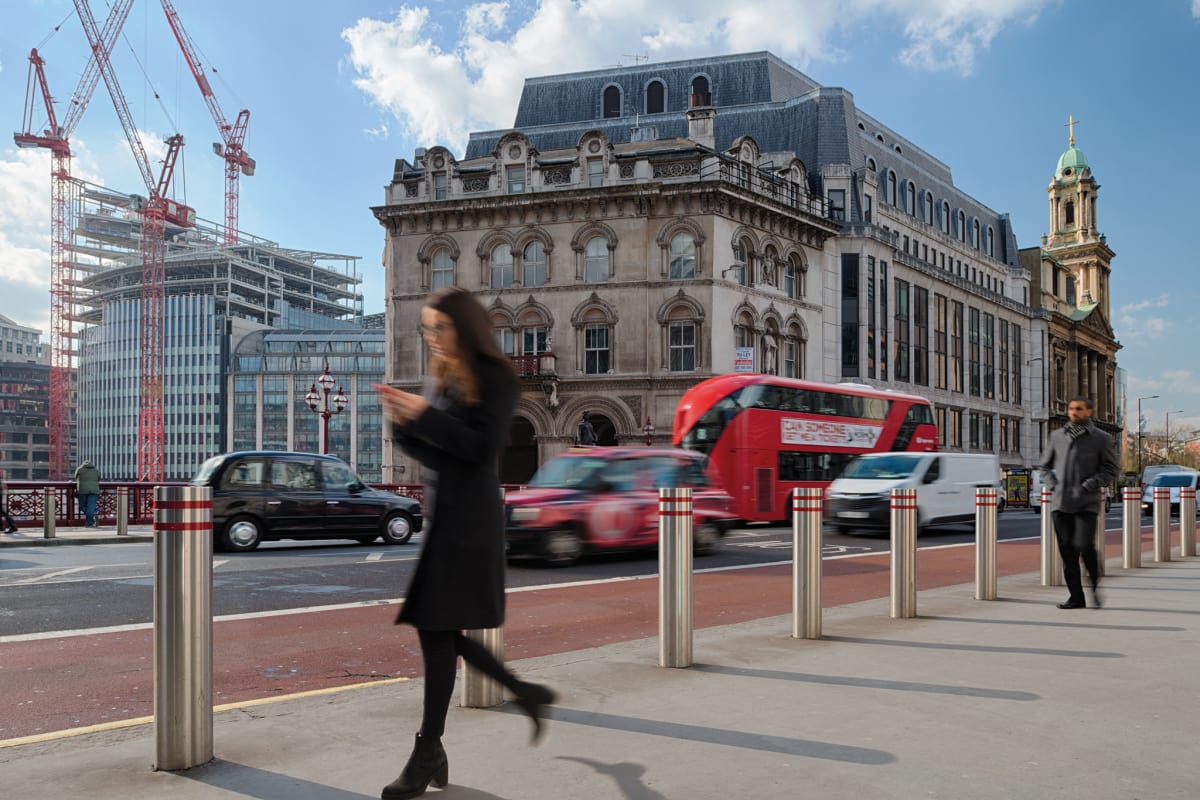

rhinoguard 75/30 stainless steel protective bollards

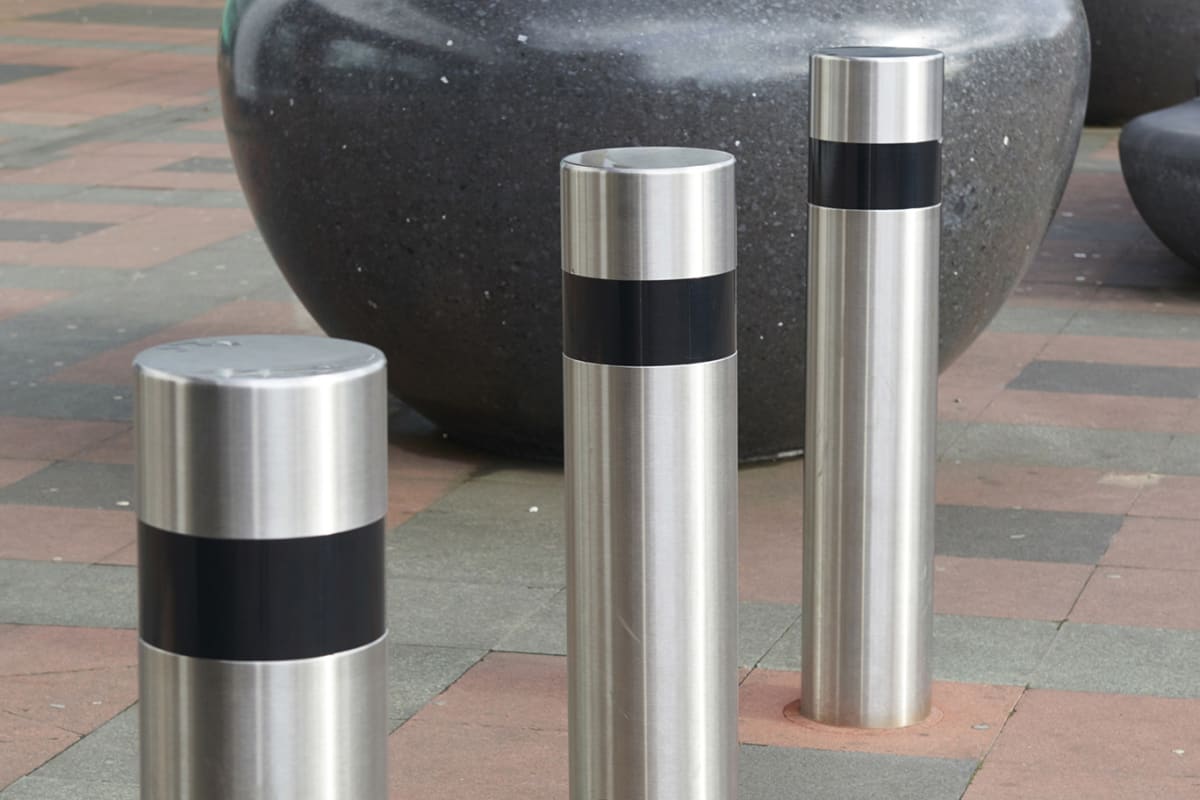

rhinoguard 75/30 stainless steel protective bollards

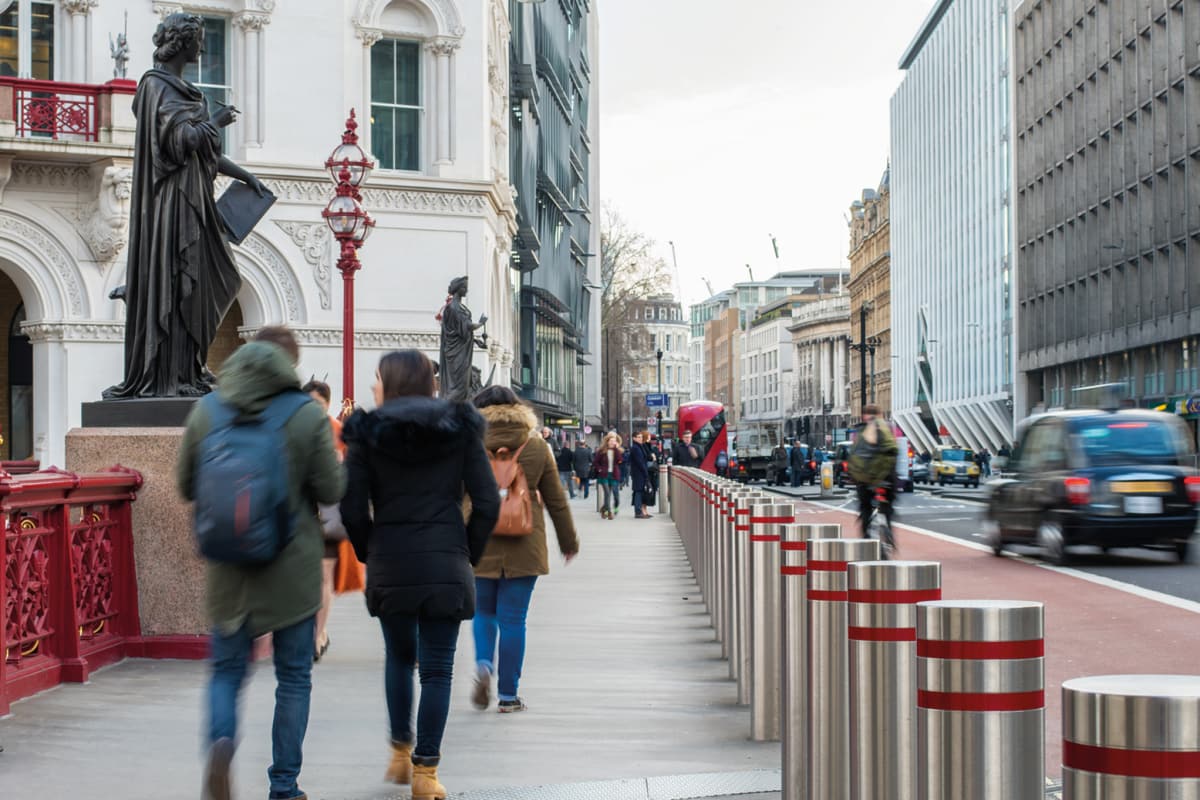

rhinoguard 75/30 stainless steel protective bollards
