RhinoGuard® Geo Protective Bollard

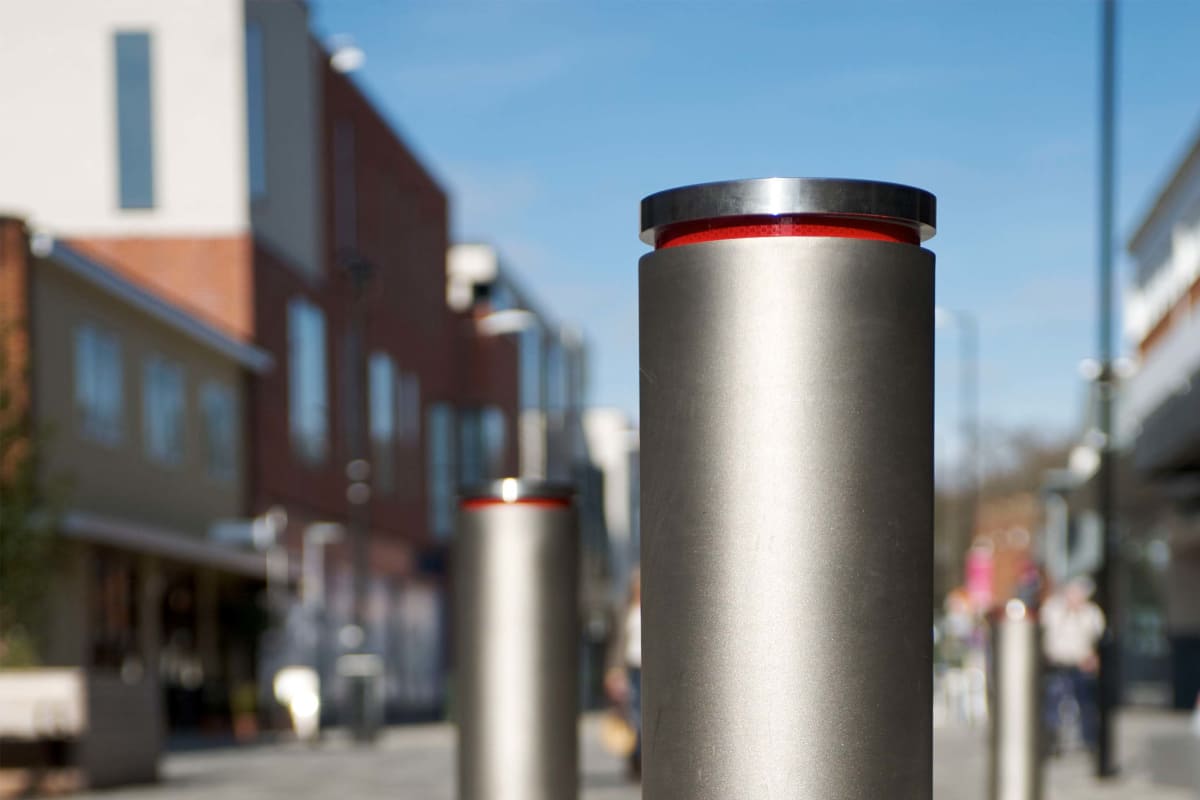

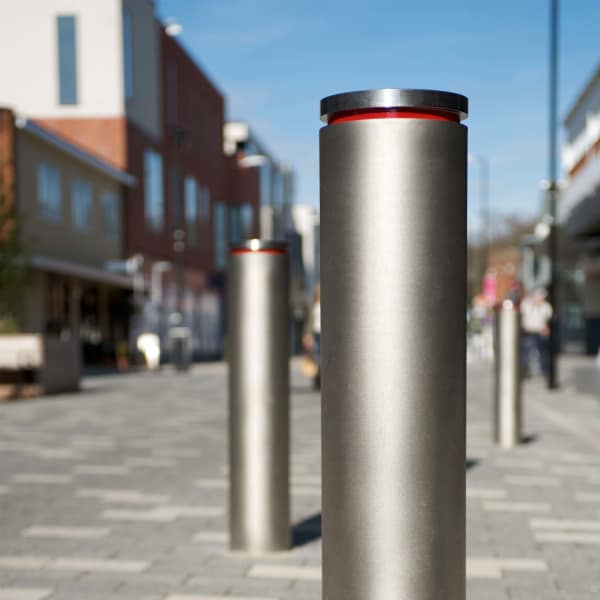

Designed to withstand impact from vehicles, the GEO Protective Bollard features integrated RhinoGuard® technology while reflecting the best aspects of the standard GEO range.The GEO 'shadow gap' design theme continues throughout the product range to enhance the sense of place and identity. This enables a consistent project signature to be established and helps minimise visual clutter, while protecting people, places and infrastructure.The bollard has a RhinoGuard PAS 68 core for a high level of perimeter protection. It is available in a choice of 140 and 204mm diameter options, with a bead-blasted 316 stainless steel body and machine-finished 316 stainless steel top cap.
- Complies with BSI PAS 68:2010 standard
- Offers effective protection for infrastructure and spaces
- Stainless steel body and top cap
- Choice of size options
Technical Downloads (4)
- Bollards Protective Bollards Rhino Guard Geo Protective P A S Rated Bollard Download Bollards Protective Bollards Rhino Guard Geo Protective P A S Rated Bollard
- rhinoguard geo 75 40 protective bollard Download rhinoguard geo 75 40 protective bollard
Certification Logos and Accreditations
NBSPlus
- Bollards Protective Bollards Rhino Guard Geo Protective P A S Rated Bollard Download Bollards Protective Bollards Rhino Guard Geo Protective P A S Rated Bollard
CAD Details
- rhinoguard geo 75 40 protective bollard Download rhinoguard geo 75 40 protective bollard
- rhinoguard geo 25 40 protective bollard Download rhinoguard geo 25 40 protective bollard
- rhinoguard geo 15 30 protective bollard Download rhinoguard geo 15 30 protective bollard
Product Details
| Product Name | Sleeve Material | Sleeve Finish | Core Diameter (mm) | Sleeve Diameter (mm) | Height Above Ground (mm) | Fixing Method | Core Weight (kg) | Sleeve Weight (kg) | Reflective Tape Available | Length (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RhinoGuard® Geo Protective Bollard 15/30 | Grade 316 Stainless Steel | Bead Blasted with machined top cap | 114 | 140 | 1000 | Root Fixed | 90 | 10 | Yes | 1400 | 1000 | 100 |
| RhinoGuard® Geo Protective Bollard 25/40 | Grade 316 Stainless Steel | Bead Blasted with machined top cap | 168 | 204 | 1000 | Root Fixed | 180 | 14 | Yes | 1500 | 1000 | 194 |
| RhinoGuard® Geo Protective Bollard 75/40 | Grade 316 Stainless Steel | Bead Blasted with machined top cap | 168 | 204 | 1100 | Root Fixed | 210 | 15 | Yes | 1700 | 1100 | 225 |
RhinoGuard® Geo Protective Bollard BIM Model
At Marshalls we work alongside appropriate guidelines in which we are able to provide high quality 3D objects of our products that contain rich data to satisfy that information required by our clients.
We strive to improve the relationship with stakeholders and the BIM process enables us to share the relevant information.
- Our BIM models are available to download directly from our BIM library.
- We have a range of models available in AutoDesk Revit format including CoBie, IFC and NBS data.
