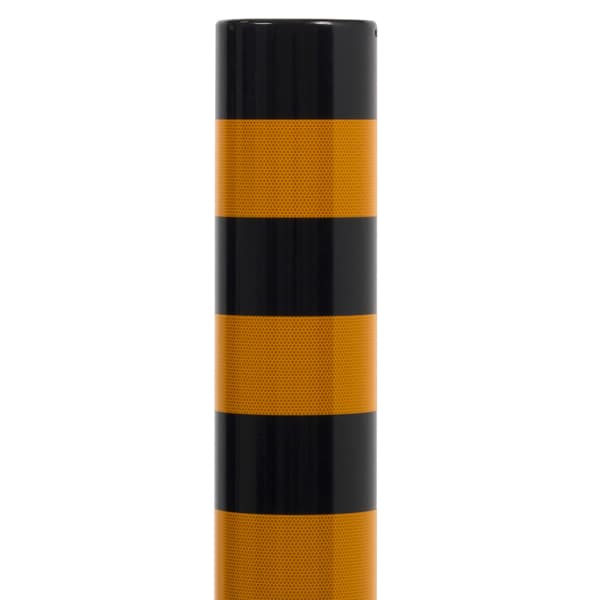

Service Yard Bollard
The Service Yard Bollard is designed to provide perimeter protection and greater security to all areas of industrial and commercial sites, including loading bays, storage tanks, substations.The bollard protects against the risk of damage from forklifts and HGVs in, protects the workforce of commercial sites and demarcates zoning for fork lift trucks and HGVs. A circular bollard, it is manufactured from steel and galvanised with a powder-coated black finish for durability, strength and resistance to corrosion to lower maintenance requirements. Class 2 reflective yellow tapes come as standard, extensively increasing visibility. It has 2 fixing options – root fixing or surface mount. Available in 2 standard diameters – 168mm and 194mm.
- Manufactured from galvanised steel
- Black powder-coated finish
- Class 2 reflective tapes
- Root fixing or base plate fixing
- Available in 4 standard heights plus others on request
Price Range
- £
- £
- £
Carbon Footprint
Available on RequestTechnical Downloads (3)
- Bollards Steel Bollards Rhino Service Yard Bollard Download Bollards Steel Bollards Rhino Service Yard Bollard Add to Project Bollards Steel Bollards Rhino Service Yard Bollard
- street furniture maintenance guide Download street furniture maintenance guide Add to Project street furniture maintenance guide
service yard bollard
Certification Logos and Accreditations
NBSPlus
Add All to Project- Bollards Steel Bollards Rhino Service Yard Bollard Download Bollards Steel Bollards Rhino Service Yard Bollard Add to Project Bollards Steel Bollards Rhino Service Yard Bollard
Technical Documents
Add All to Project- street furniture maintenance guide Download street furniture maintenance guide Add to Project street furniture maintenance guide
CAD Details
Add All to Project- service yard bollard Download service yard bollard Add to Project service yard bollard
Specifications
| Product Name | Material | Finish | Diameter (mm) | Length (mm) | Height Above Ground (mm) | Fixing Method | Weight (kg) | Reflective Tape Available | ID |
|---|---|---|---|---|---|---|---|---|---|
| Service Yard Bollard Root Fixed Ø168mm H1500mm | Steel | Galvanised and Powder Coated | 168 | 1500 | 1000 | Root Fixed | 30 | Yes | Service Yard Bollard Root Fixed Ø168mm H1500mm |
| Service Yard Bollard Root Fixed Ø168mm H1800mm | Steel | Galvanised and Powder Coated | 168 | 1500 | 1000 | Root Fixed | 30 | Yes | Service Yard Bollard Root Fixed Ø168mm H1800mm |
| Service Yard Bollard Root Fixed Ø194mm H2100mm | Steel | Galvanised and Powder Coated | 168 | 1500 | 1000 | Root Fixed | 30 | Yes | Service Yard Bollard Root Fixed Ø194mm H2100mm |
| Service Yard Bollard Surface Mount Ø168mm H1200mm | Steel | Galvanised and Powder Coated | 168 | 900 | 900 | Surface Mounted | 24 | Yes | Service Yard Bollard Surface Mount Ø168mm H1200mm |
| Service Yard Bollard Surface Mount Ø194mm H1200mm | Steel | Galvanised and Powder Coated | 194 | 1200 | 1000 | Surface Mounted | 28 | Yes | Service Yard Bollard Surface Mount Ø194mm H1200mm |
| Service Yard Bollard Surface Mount Ø194mm H1500mm | Steel | Galvanised and Powder Coated | 194 | 1500 | 1000 | Surface Mounted | 30 | Yes | Service Yard Bollard Surface Mount Ø194mm H1500mm |
