Tactile Lozenge Paving
Created specifically to designate on-street platform edges, Marshalls Lozenge Tactile Flag Paving warns users of where Light Rapid Transport systems (LRT) and Supertram schemes' platform edges begin.

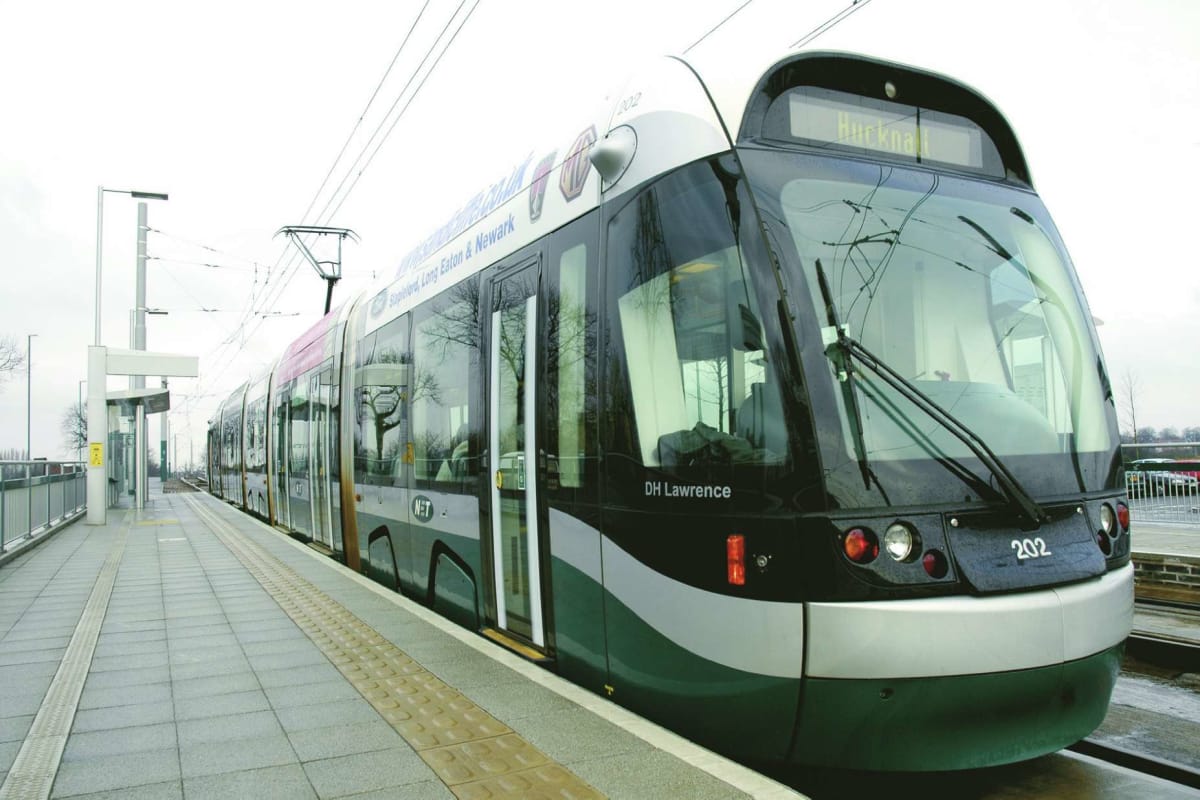

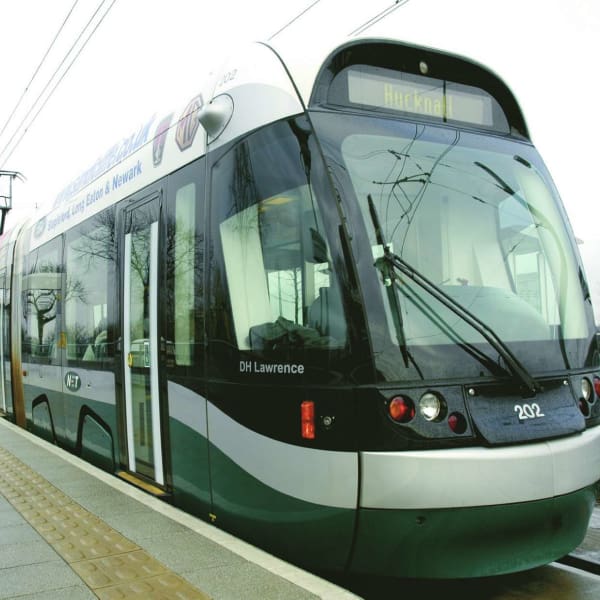

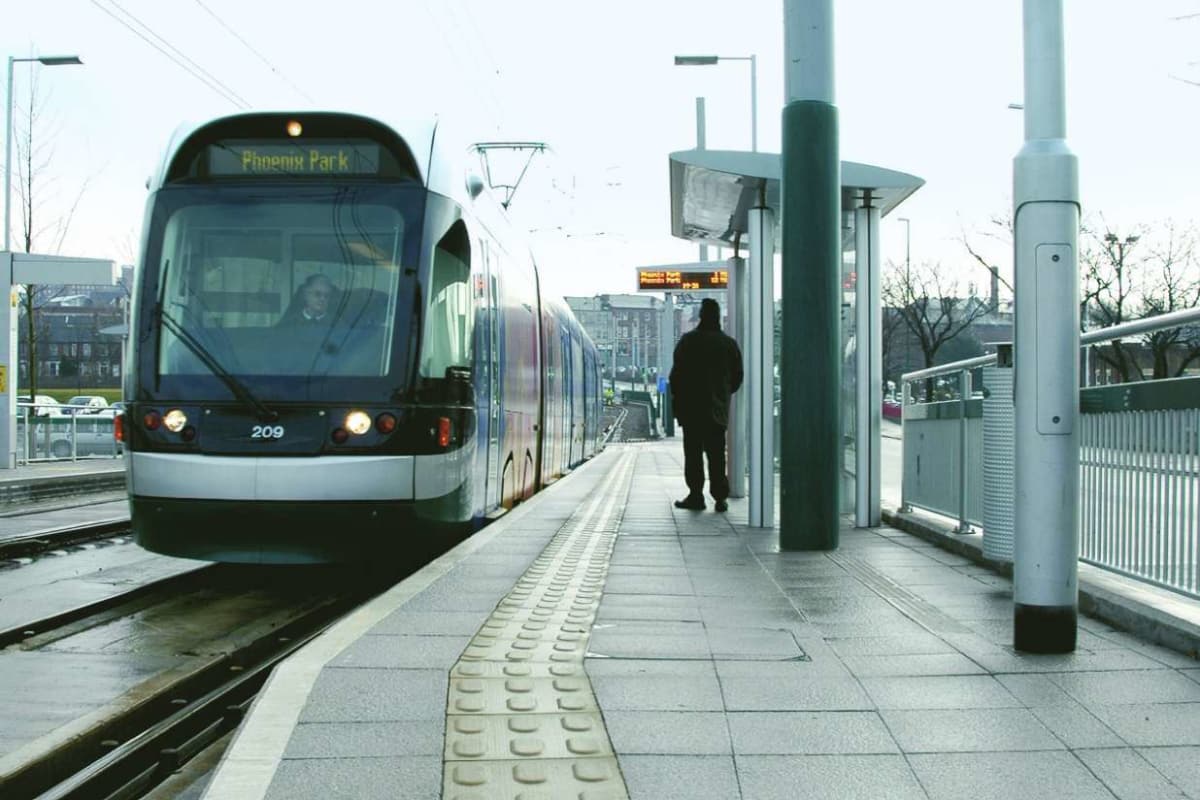

Manufactured in a pale Buff colour, the paving's slightly raised surface contrasts in tone to surrounding surfaces in order to better aid those with visual impairments. It is laid in a single strip of 400mm width with the lozenge pattern running parallel to platform edges.
Marshalls Lozenge Tactile Flag Paving should be positioned no closer than 500mm to the edge of a platform.
- Complies with DDA requirements
- For both sighted and visually impaired
- Manufactured for use on LRT and Supertram
- Laid in a single 400mm wide strip alongside platform edges.
Price Range
- £
- £
- £
Maximum Loading Classification i✕This is the maximum loading for the product.
However this is subject to using the appropriate installation method, bond pattern and the sub-base design.
For tailored support with a pavement design, please contact us:
grouptechnicalservices@marshalls.co.uk
However this is subject to using the appropriate installation method, bond pattern and the sub-base design.
For tailored support with a pavement design, please contact us:
grouptechnicalservices@marshalls.co.uk
Category 5 - 0.05msa Pedestrian areas subjected to occasional overrun of commercial vehicles. Car parks receiving occasional commercial vehicular traffic.
NBSPlus Codes
Q25 320
Carbon Footprint
From 13 kg CO2 per m²
Technical Downloads (2)
- Lozenge 400 x 400 x 50 Datasheet Download Lozenge 400 x 400 x 50 Datasheet
- Paving Lozenge Paving Download Paving Lozenge Paving
Certification Logos and Accreditations
Datasheets
- Lozenge 400 x 400 x 50 Datasheet Download Lozenge 400 x 400 x 50 Datasheet
NBSPlus
- Paving Lozenge Paving Download Paving Lozenge Paving
Product Details
| Product Name | id | Length (mm) | Width (mm) | Thickness (mm) | Approx Unit Weight (kg) | Approx Pack Weight (kg) | Pack Size (m²) | Finish | Made to Stock / Made to Order | Carbon Footprint |
|---|---|---|---|---|---|---|---|---|---|---|
| Tactile Lozenge 400 x 400 x 50 Buff | FL6201000 | 400 | 400 | 50 | 20 | 720 | 5.8 | Smooth | Made To Order | 13 kg CO2 m² |
Made to stock: Item is in stock and available for delivery.
Made to order: Item will be manufactured when the order has been placed, lead times vary dependent on product.
