Tactile Platform Edge Paving
Utilised to mark the end point of a railway platform, Marshalls' Tactile Platform Edge Paving creates a visual and physical alert to the presence of a platform edge. It consists of raised blisters and contrasting colours that indicate the presence of off-street heavy rail systems, across both mainline and underground networks.
Manufactured in accordance with BS EN 1339: 2003 and guidelines set out by the Department for Transport, Marshalls' Tactile Platform Edge Paving provides an indicator to pedestrians that they are approaching the edge of a platform.
Tactile Platform Edge Paving also meets DDA requirements through the range of contrasting textures and colours used. The product has been made to help planners and designers meet DDA guidelines, which state that Tactile Platform Edge Paving should be installed:
- Along the entire length of the platform
- Parallel to the platform edge
- At a position of 600-700mm away from the platform edge.
Marshalls' Tactile Platform Edge Paving is available in 3 colour options: Buff, Natural and Charcoal, allowing for the creation of a suitable colour contrast.
- Manufactured according to BS EN 1339: 2003
- Produced to meet guidelines set out by the Department for Transport
- Meets the requirements of The Disability Discrimination Act 1995
- Suitable for use in surface or underground applications
Price Range
- £
- £
- £
Maximum Loading Classification i✕This is the maximum loading for the product.
However this is subject to using the appropriate installation method, bond pattern and the sub-base design.
For tailored support with a pavement design, please contact us:
grouptechnicalservices@marshalls.co.uk
However this is subject to using the appropriate installation method, bond pattern and the sub-base design.
For tailored support with a pavement design, please contact us:
grouptechnicalservices@marshalls.co.uk
Category 1 - Pedestrian and domestic driveways
NBSPlus Codes
Q25 320
Carbon Footprint
From 13 kg CO2 per m²
Technical Downloads (1)
- Tactile Platform Edge 400 x 400 x 50 Datasheet Download Tactile Platform Edge 400 x 400 x 50 Datasheet Add to Project Tactile Platform Edge 400 x 400 x 50 Datasheet
Certification Logos and Accreditations
Datasheets
Add All to Project- Tactile Platform Edge 400 x 400 x 50 Datasheet Download Tactile Platform Edge 400 x 400 x 50 Datasheet Add to Project Tactile Platform Edge 400 x 400 x 50 Datasheet
Product Details
| Product Name | id | Plan Size (mm) | Length (mm) | Width (mm) | Depth (mm) | Approx Unit Weight (kg) | Approx Pack Weight (kg) | Pack Size (m²) | Finish | Made to Stock / Made to Order | Carbon Footprint |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Tactile Platform Edge 400 x 400 x 50 Buff | FL6231000 | 400 x 400 x 50 | 400 | 400 | 50 | 19 | 646 | 5.4 | Smooth | Made To Order | 13 kg CO2 m² |
Made to stock: Item is in stock and available for delivery.
Made to order: Item will be manufactured when the order has been placed, lead times vary dependent on product.

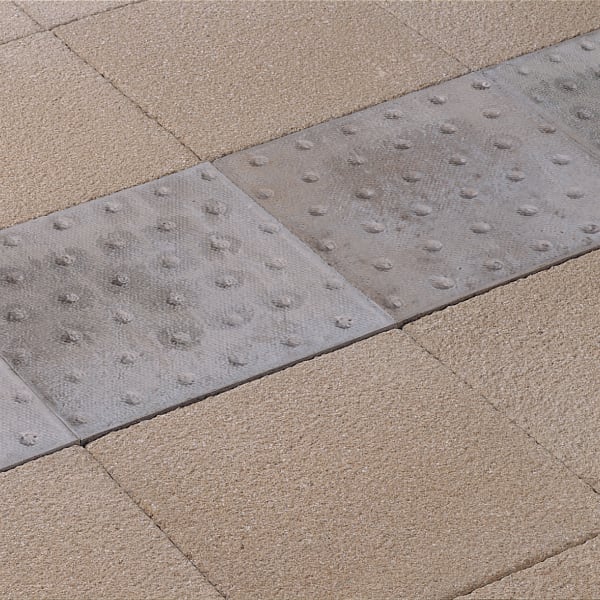

platform edge tactile flag paving - natural

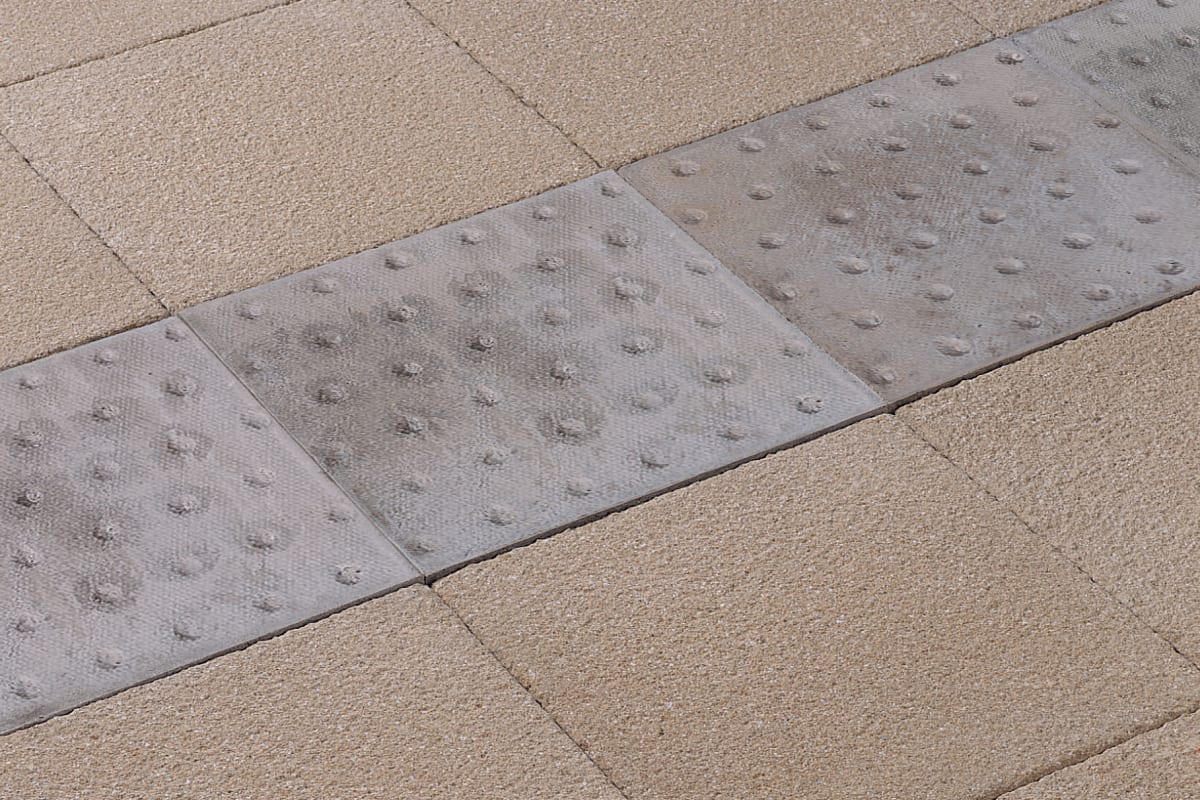

marshalls platform edge tactile paving
