Birco Shallow
Linear Drainage Systems
Colour and finish options
birco 100 cast iron diagonal slotted steel grate 12mm
birco 100 cast iron slotted heelsure grate 6mm
birco 100 galvanised steel mesh grate 20mm x 30mm
birco 100 cast iron solid cover
birco 150 galvanised steel mesh 20mm x 30mm
birco 150 cast iron solid cover
birco 150 cast iron heelsure grate 6mm
Plan your project
Our team of water management experts are ready to support your project
Contact the water management team
Product Details

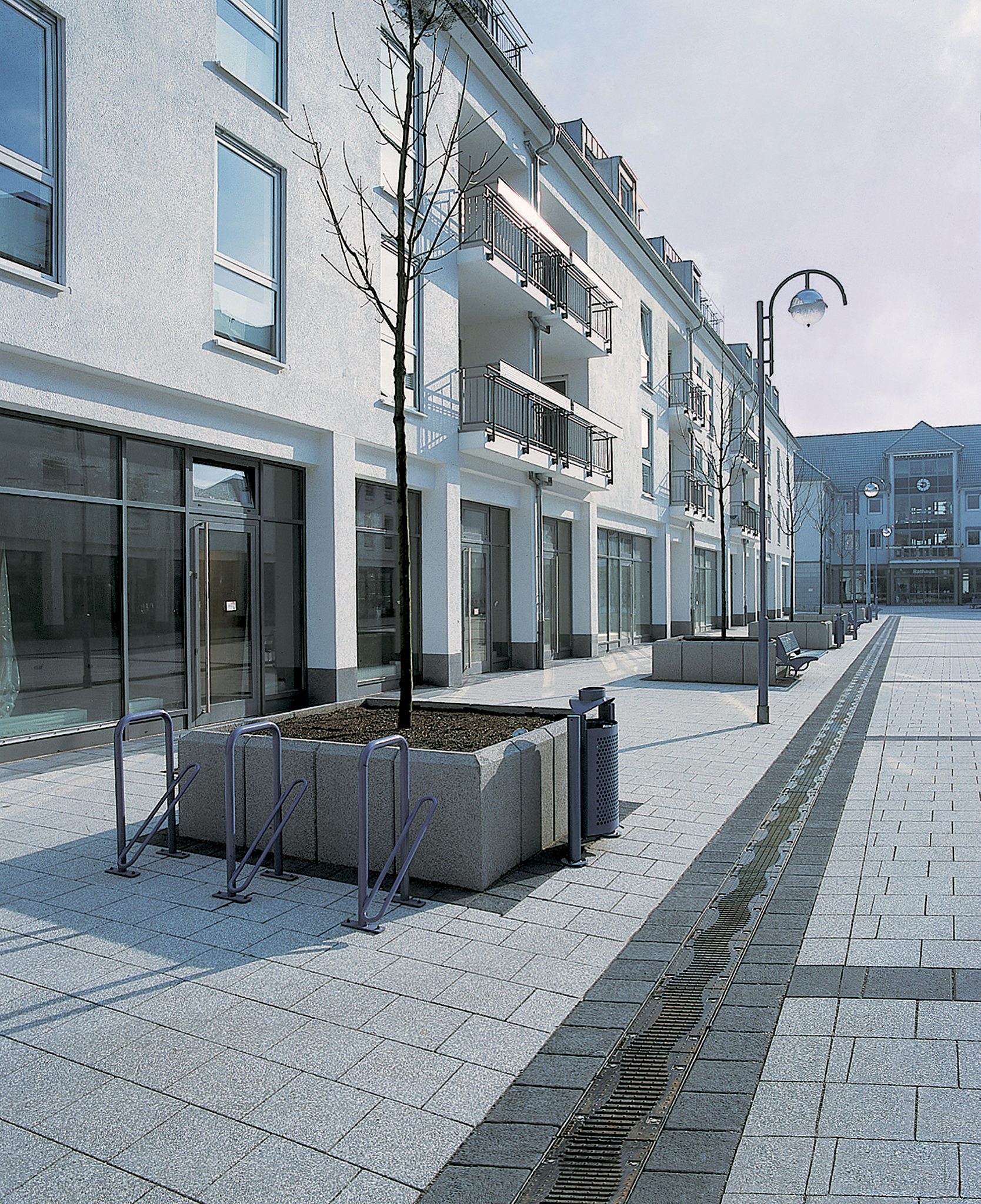

Birco Shallow is an outstanding low to medium-capacity system. A flexible drainage solution, particularly if there are limitations on excavation depths or where sub-soil drainage would be hindered.
Available in different widths for customer choice and benefit from full compatibility with other Birco units and loadings of up to F900 can be achieved when the appropriate grating is used, making Birco Shallow an ideal choice for public, commercial and rail applications.
A choice of cast iron, galvanised and stainless-steel gratings in a variety of patterns mean designers can select the most appropriate style depending on project aesthetics, as well as loading requirements.
- Shallow drainage channel for when excavation is limited
- Available in 1000mm lengths
- Suitable for loadings up to F900 depending on grating
- Grating options available
- Available in widths of 100, 150 and 300mm
- End caps and cap outlets offered
- 6 constant invert depths available
Drainage capacity
Medium
