Priora Permeable Block Paving
Priora is Marshalls original Concrete Block Permeable Paving (CBPP) system, and the best selling system of its type in the UK. Combining the ever popular aesthetics of Keyblok block paving with a source-control SuDS solution, Priora paving not only looks great but also mitigates flood risk, removes surface water and improves water quality - without the need for additional linear drainage systems.
The Priora system has been proven over 10 years of successfully installed projects. The patented nib on the edge of the Priora blocks creates voids through which water falls into a specially prepared sub-base. The nibs also interlock to enhance surface stability.
Priora is available in 7 different colours and colour top marker blocks are available. A variety of laying patterns can be acheived using the 200x100 blocks.
As long as the sub-base is installed to Marshalls specification, Priora is suitable for all loading requirements.
- Part of UK’s best-selling permeable block paving range
- 40% more interlock than standard blocks
- Ideal for pedestrianised areas and occasional heavy traffic
Maximum Loading Classification i✕This is the maximum loading for the product.
However this is subject to using the appropriate installation method, bond pattern and the sub-base design.
For tailored support with a pavement design, please contact us:
grouptechnicalservices@marshalls.co.uk
However this is subject to using the appropriate installation method, bond pattern and the sub-base design.
For tailored support with a pavement design, please contact us:
grouptechnicalservices@marshalls.co.uk
Category 7 - 100 large goods vehicles per week
Carbon Footprint
From 15 kg CO2 per m²
Technical Downloads (4)
- dop Download dop Add to Project dop
- Priora 200 x 100 x 60 Datasheet Download Priora 200 x 100 x 60 Datasheet Add to Project Priora 200 x 100 x 60 Datasheet
Certification Logos and Accreditations
Datasheets
Add All to Project- Priora 200 x 100 x 60 Datasheet Download Priora 200 x 100 x 60 Datasheet Add to Project Priora 200 x 100 x 60 Datasheet
- Priora 200 x 100 x 80 Datasheet Download Priora 200 x 100 x 80 Datasheet Add to Project Priora 200 x 100 x 80 Datasheet
NBSPlus
Add All to Project- Block Paving Priora Download Block Paving Priora Add to Project Block Paving Priora
CE Mark
Add All to ProjectProduct Details - Priora
| Product Name | id | Plan Size (mm) | Length (mm) | Width (mm) | Depth (mm) | Approx Unit Weight (kg) | Approx Pack Weight (kg) | Pack Size (m²) | Finish | Permeability L/S/H | Made to Stock / Made to Order | Carbon Footprint |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Priora Colourtop 200 x 100 x 80 White | PV6514200 | 200 x 100 | 200 | 100 | 80 | 3.5 | 1040 | 6.2 | Standard | 18750 | Made To Stock | 24 kg CO2 m² |
| Priora 200 x 100 x 80 Charcoal | PV6500500 | 200 x 100 | 200 | 100 | 80 | 3.5 | 1040 | 6.2 | Standard | 18750 | Made To Stock | 20 kg CO2 m² |
| Priora 200 x 100 x 80 Buff | PV6500750 | 200 x 100 | 200 | 100 | 80 | 3.5 | 1040 | 6.2 | Standard | 18750 | Made To Stock | 20 kg CO2 m² |
| Priora 200 x 100 x 80 Red | PV6501500 | 200 x 100 | 200 | 100 | 80 | 3.5 | 1040 | 6.2 | Standard | 18750 | Made To Order | 20 kg CO2 m² |
| Priora 200 x 100 x 80 Brindle | PV6501750 | 200 x 100 | 200 | 100 | 80 | 3.5 | 1040 | 6.2 | Standard | 18750 | Made To Stock | 20 kg CO2 m² |
| Priora 200 x 100 x 80 Burnt Ochre | PV6502000 | 200 x 100 | 200 | 100 | 80 | 3.5 | 1040 | 6.2 | Standard | 18750 | Made To Stock | 20 kg CO2 m² |
| Priora 200 x 100 x 80 Bracken | PV6502250 | 200 x 100 | 200 | 100 | 80 | 3.5 | 1040 | 6.2 | Standard | 18750 | Made To Stock | 20 kg CO2 m² |
| Priora Colourtop 200 x 100 x 80 Yellow | PV6514300 | 200 x 100 | 200 | 100 | 80 | 3.5 | 1040 | 6.2 | Standard | 18750 | Made To Order | 24 kg CO2 m² |
| Priora 200 x 100 x 80 Natural | PV6500250 | 200 x 100 | 200 | 100 | 80 | 3.5 | 1040 | 6.2 | Standard | 18750 | Made To Stock | |
| Priora® 200 x 100 x 60 Charcoal | PV3800500 | 200 x 100 | 200 | 100 | 60 | 3.5 | 1080 | 8.1 | Textured | 18750 | Made To Stock | 15 kg CO2 m² |
| Priora® 200 x 100 x 60 Buff | PV3800750 | 200 x 100 | 200 | 100 | 60 | 3.5 | 1080 | 8.1 | Textured | 18750 | Made To Stock | 15 kg CO2 m² |
| Priora® 200 x 100 x 60 Red | PV3801500 | 200 x 100 | 200 | 100 | 60 | 3.5 | 1080 | 8.1 | Textured | 18750 | Made To Order | 15 kg CO2 m² |
| Priora® 200 x 100 x 60 Brindle | PV3801750 | 200 x 100 | 200 | 100 | 60 | 3.5 | 1080 | 8.1 | Textured | 18750 | Made To Stock | 15 kg CO2 m² |
| Priora® 200 x 100 x 60 Burnt Ochre | PV3802000 | 200 x 100 | 200 | 100 | 60 | 3.5 | 1080 | 8.1 | Textured | 18750 | Made To Stock | 15 kg CO2 m² |
| Priora® 200 x 100 x 60 Bracken | PV3802250 | 200 x 100 | 200 | 100 | 60 | 3.5 | 1080 | 8.1 | Textured | 18750 | Made To Stock | 15 kg CO2 m² |
| Priora 200 x 100 x 60 Colour Top White | PV3814200 | 200 x 100 | 200 | 100 | 60 | 3.5 | 1080 | 8.1 | Textured | 18750 | Made To Order |
Made to stock: Item is in stock and available for delivery.
Made to order: Item will be manufactured when the order has been placed, lead times vary dependent on product.

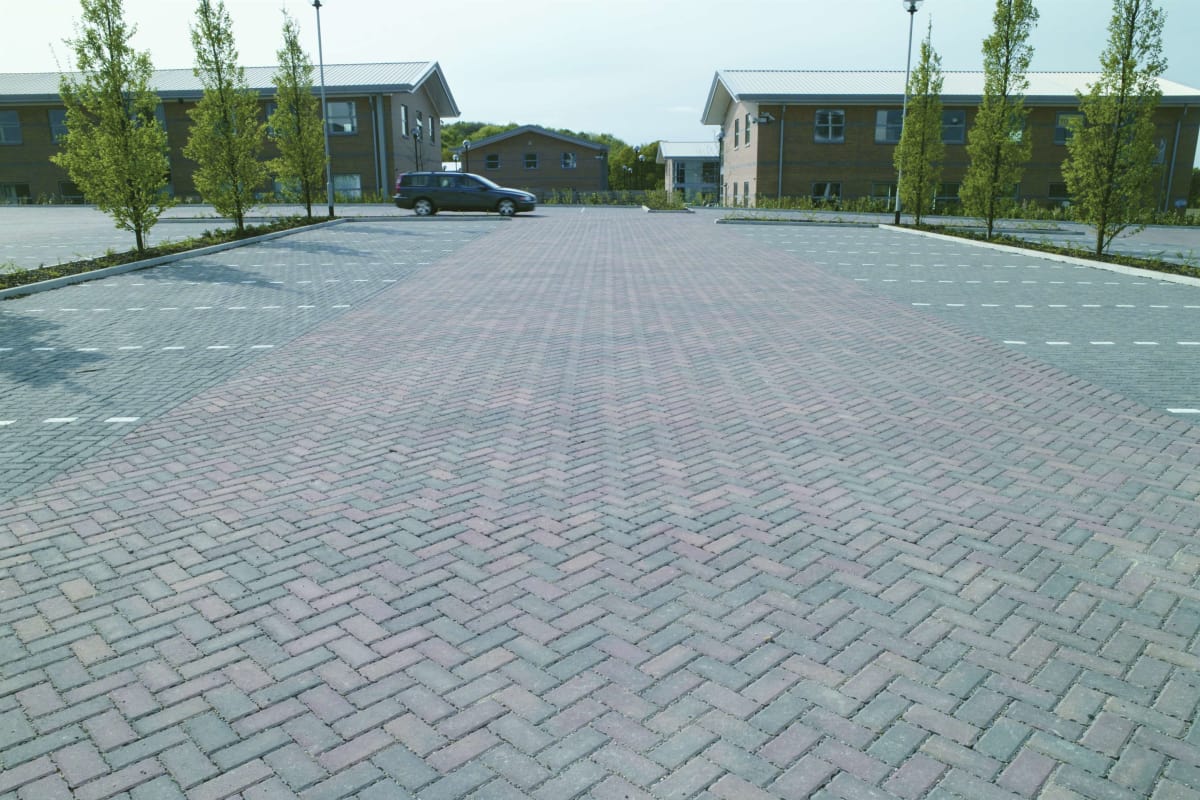

burnt ochre priora block paving - leeds

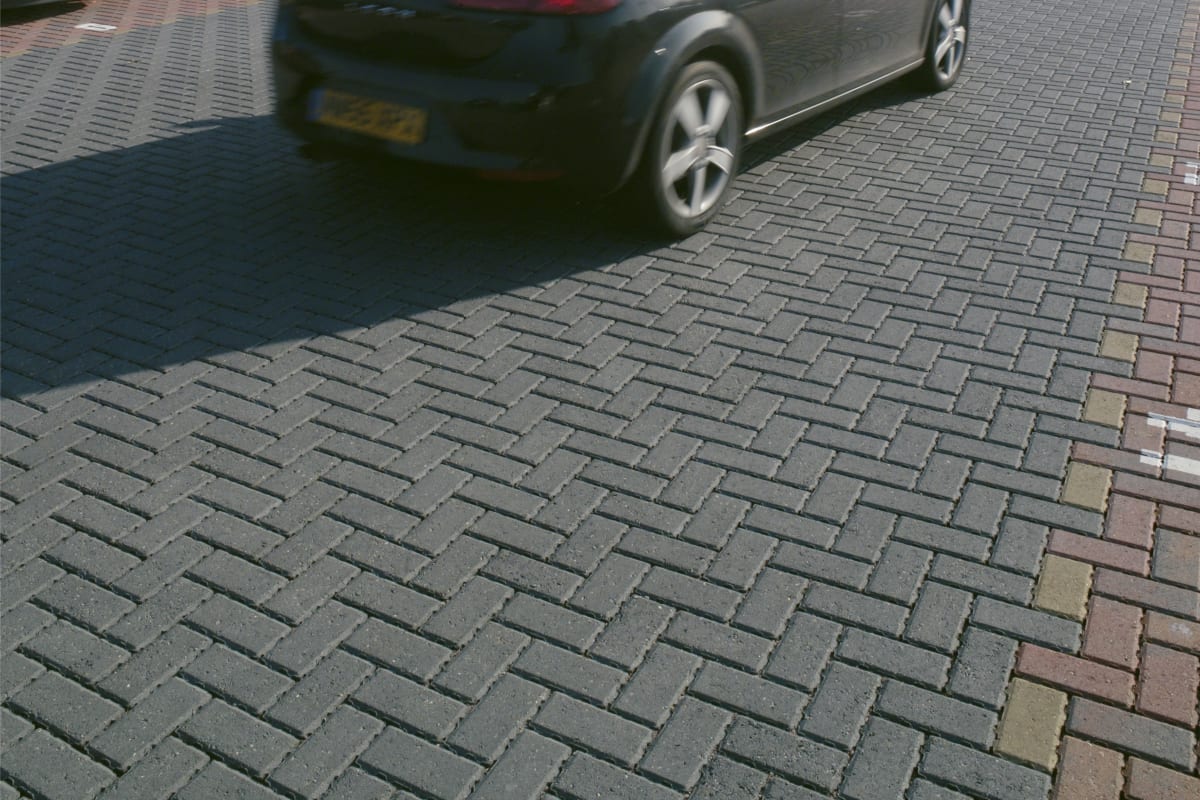

priora block paving - charcoal - exeter

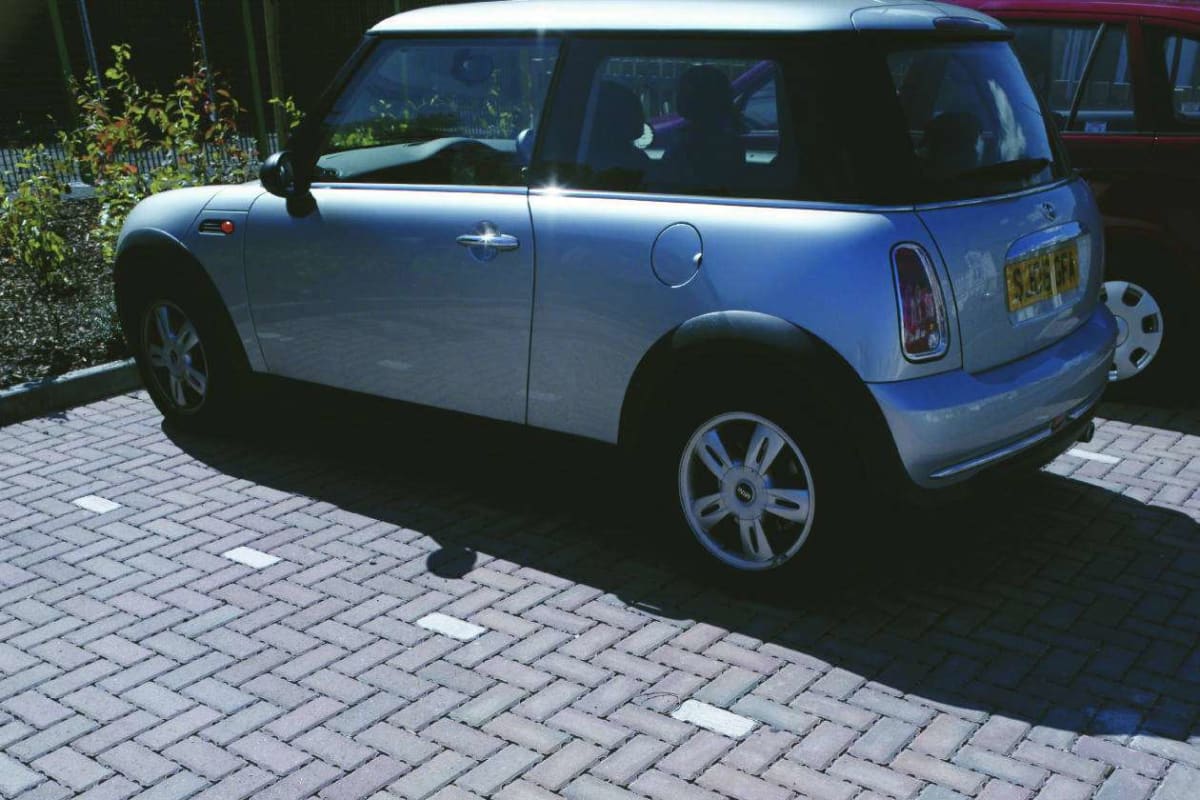

natural priora block paving - east kilbride

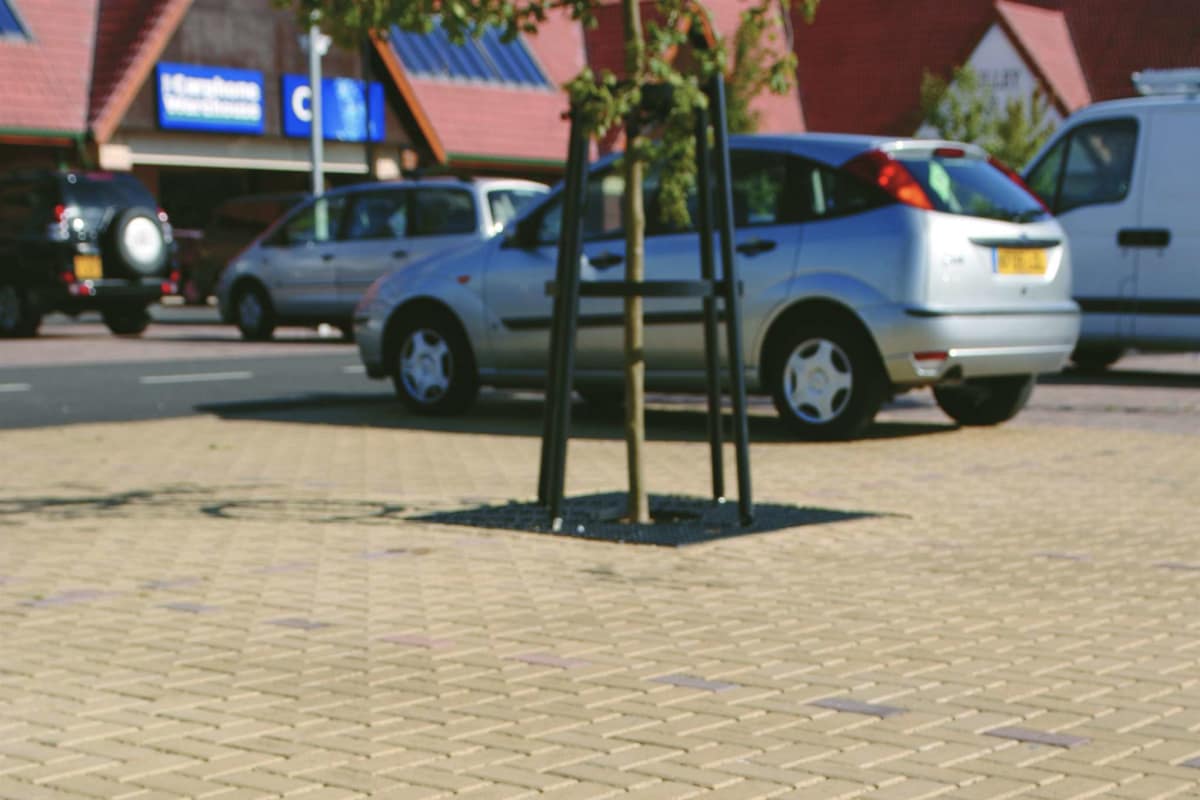

priora buff and brindle block paving - leicester

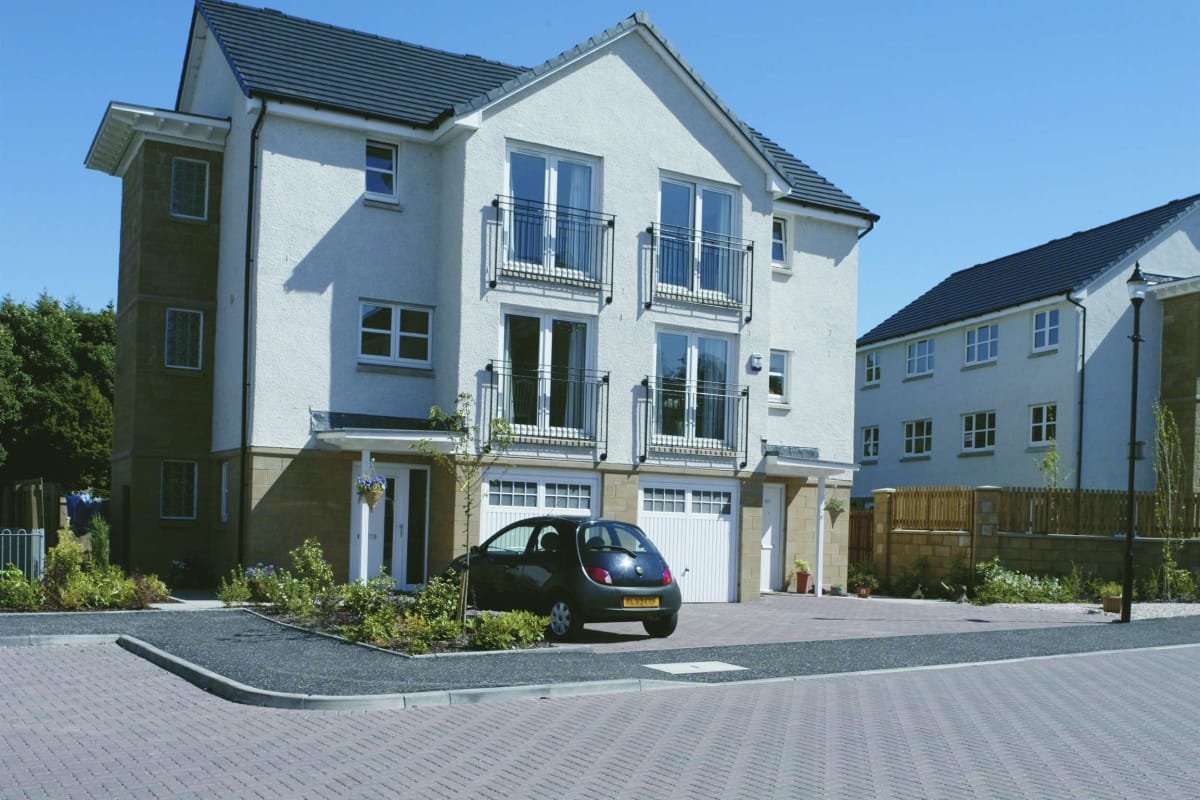

priora block paving - east kilbride

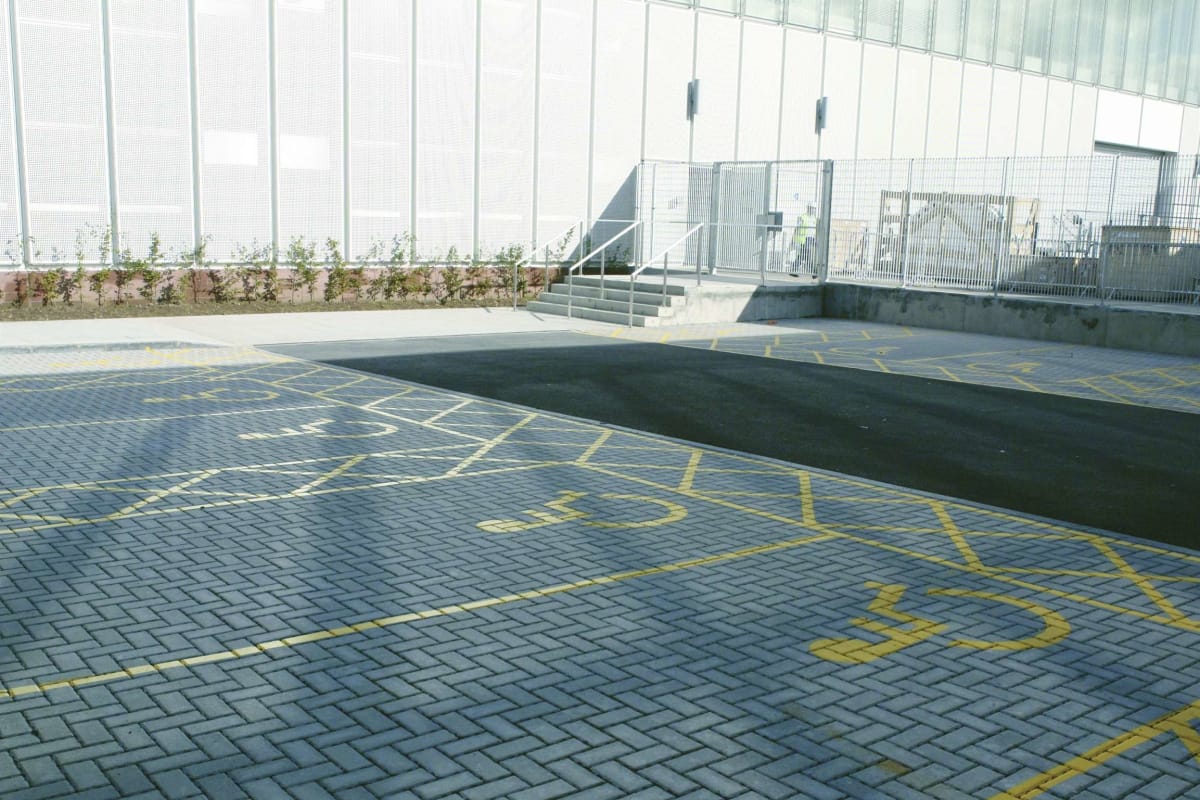

natural priora block paving - glasgow
Priora Permeable Block Paving BIM Model
At Marshalls we work alongside appropriate guidelines in which we are able to provide high quality 3D objects of our products that contain rich data to satisfy that information required by our clients.
We strive to improve the relationship with stakeholders and the BIM process enables us to share the relevant information.
- Our BIM models are available to download directly from our BIM library.
- We have a range of models available in AutoDesk Revit format including CoBie, IFC and NBS data.
