Keyblok Paving
A highly popular and attractive option for a wide variety of urban landscapes and residential spaces, Marshalls Keyblok is the UK's best-selling concrete block paving.
Manufactured in Mainland Britain, this durable, long-lasting 200 x 100mm rectangular block is available in 60mm and 80mm thicknesses, and is designed to withstand anything up to the heaviest loading applications including airports, service yards and adopted highways.
There are several different surface profiles available, each with its own properties to suit your requirements, these include Standard, Pencil Edge, Vintage and Colourtop. Standard Keyblok has chamfered edges to minimise spalling and create a classical aesthetic. Pencil Edge Keyblok minimises the chamfer to provide a smoother, flatter surface, which is ideal for reducing noise and resistance in trafficked areas. Vintage Keyblok is a pre-weathered, lightly distressed block that is ideal for complementing rural, rustic projects. Colourtop Keyblok is perfect for delineation between parking bays and road lanes, as well as for permanent floor signage.
Price Range
- £
- £
- £
Maximum Loading Classification i✕This is the maximum loading for the product.
However this is subject to using the appropriate installation method, bond pattern and the sub-base design.
For tailored support with a pavement design, please contact us:
grouptechnicalservices@marshalls.co.uk
However this is subject to using the appropriate installation method, bond pattern and the sub-base design.
For tailored support with a pavement design, please contact us:
grouptechnicalservices@marshalls.co.uk
Category 11 - Heavy duty pavements for ports and similar industries
NBSPlus Codes
Q24 10
Q24 110
Q24 112
Q24 113
Carbon Footprint
From 15 kg CO2 per m²
Technical Downloads (12)
- declarations Download declarations Add to Project declarations
- keyblok 200x100x60 datasheet Download keyblok 200x100x60 datasheet Add to Project keyblok 200x100x60 datasheet
Certification Logos and Accreditations
Datasheets
Add All to Project- keyblok 200x100x60 datasheet Download keyblok 200x100x60 datasheet Add to Project keyblok 200x100x60 datasheet
- keyblok 200x100x80 datasheet Download keyblok 200x100x80 datasheet Add to Project keyblok 200x100x80 datasheet
- keyblok vintage 200x100x60 datasheet Download keyblok vintage 200x100x60 datasheet Add to Project keyblok vintage 200x100x60 datasheet
- keyblok vintage 200x100x80 datasheet Download keyblok vintage 200x100x80 datasheet Add to Project keyblok vintage 200x100x80 datasheet
- keyblok pencil edge 200x100x60 datasheet Download keyblok pencil edge 200x100x60 datasheet Add to Project keyblok pencil edge 200x100x60 datasheet
- keyblok pencil edge 200x100x80 datasheet Download keyblok pencil edge 200x100x80 datasheet Add to Project keyblok pencil edge 200x100x80 datasheet
- keyblok colourtop 80 datasheet Download keyblok colourtop 80 datasheet Add to Project keyblok colourtop 80 datasheet
NBSPlus
Add All to Project- Block Paving Keyblok Download Block Paving Keyblok Add to Project Block Paving Keyblok
- Block Paving Keyblok V Groove Download Block Paving Keyblok V Groove Add to Project Block Paving Keyblok V Groove
- Block Paving Keyblok Vintage Download Block Paving Keyblok Vintage Add to Project Block Paving Keyblok Vintage
- Block Paving Keyblok Pencil Edge Download Block Paving Keyblok Pencil Edge Add to Project Block Paving Keyblok Pencil Edge
CE Mark
Add All to Project- declarations Download declarations Add to Project declarations
Product Details - Keyblok 60mm
| Product Name | id | Plan Size (mm) | Length (mm) | Width (mm) | Depth (mm) | Approx Unit Weight (kg) | Approx Pack Weight (kg) | Pack Size (m²) | Finish | Made to Stock / Made to Order | Carbon Footprint |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Keyblok® 200 x 100 x 60 Natural | PV2050250 | 200 x 100 | 200 | 100 | 60 | 3 | 1040 | 8.08 | Standard | Made To Stock | 15 kg CO2 m² |
| Keyblok® 200 x 100 x 60 Charcoal | PV2050500 | 200 x 100 | 200 | 100 | 60 | 3 | 1040 | 8.08 | Standard | Made To Stock | 15 kg CO2 m² |
| Keyblok® 200 x 100 x 60 Buff | PV2050750 | 200 x 100 | 200 | 100 | 60 | 3 | 1040 | 8.08 | Standard | Made To Stock | 15 kg CO2 m² |
| Keyblok® 200 x 100 x 60 Brindle | PV2051750 | 200 x 100 | 200 | 100 | 60 | 3 | 1040 | 8.08 | Standard | Made To Stock | 15 kg CO2 m² |
| Keyblok® 200 x 100 x 60 Burnt Ochre | PV2052000 | 200 x 100 | 200 | 100 | 60 | 3 | 1040 | 8.08 | Standard | Made To Stock | 15 kg CO2 m² |
| Keyblok® 200 x 100 x 60 Bracken | PV2052250 | 200 x 100 | 200 | 100 | 60 | 3 | 1040 | 8.08 | Standard | Made To Stock | 15 kg CO2 m² |
Made to stock: Item is in stock and available for delivery.
Made to order: Item will be manufactured when the order has been placed, lead times vary dependent on product.
Product Details - Keyblok 80mm
| Product Name | id | Plan Size (mm) | Length (mm) | Width (mm) | Depth (mm) | Approx Unit Weight (kg) | Approx Pack Weight (kg) | Pack Size (m²) | Finish | Made to Stock / Made to Order | Carbon Footprint |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Keyblok 200 x 100 x 80 Natural | PV5050250 | 200 x 100 | 200 | 100 | 80 | 3 | 1135 | 6.16 | Standard | Made To Stock | 20 kg CO2 m² |
| Keyblok 200 x 100 x 80 Charcoal | PV5050500 | 200 x 100 | 200 | 100 | 80 | 3 | 1135 | 6.16 | Standard | Made To Stock | 20 kg CO2 m² |
| Keyblok 200 x 100 x 80 Buff | PV5050750 | 200 x 100 | 200 | 100 | 80 | 3 | 1135 | 6.16 | Standard | Made To Stock | 20 kg CO2 m² |
| Keyblok 200 x 100 x 80 Brindle | PV5051750 | 200 x 100 | 200 | 100 | 80 | 3 | 1135 | 6.16 | Standard | Made To Stock | 20 kg CO2 m² |
| Keyblok 200 x 100 x 80 Burnt Ochre | PV5052000 | 200 x 100 | 200 | 100 | 80 | 3 | 1135 | 6.16 | Standard | Made To Stock | 20 kg CO2 m² |
| Keyblok 200 x 100 x 80 Bracken | PV5052250 | 200 x 100 | 200 | 100 | 80 | 3 | 1135 | 6.16 | Standard | Made To Stock | 20 kg CO2 m² |
Made to stock: Item is in stock and available for delivery.
Made to order: Item will be manufactured when the order has been placed, lead times vary dependent on product.
Product Details - Keyblok Colourtop
| Product Name | id | Plan Size (mm) | Length (mm) | Width (mm) | Depth (mm) | Approx Unit Weight (kg) | Approx Pack Weight (kg) | Finish | Made to Stock / Made to Order | Carbon Footprint |
|---|---|---|---|---|---|---|---|---|---|---|
| Keyblok Colourtop 200 x 100 x 80 Yellow | PV5604320 | 200 x 100 | 200 | 100 | 80 | 3 | 1134 | Standard | Made To Order | 23 kg CO2 m² |
| Keyblok Colourtop 200 x 100 x 80 White | PV5604220 | 200 x 100 | 200 | 100 | 80 | 3 | 1134 | Standard | Made To Order | 23 kg CO2 m² |
| Keyblok Colourtop 200 x 100 x 80 Black | PV5604020 | 200 x 100 | 200 | 100 | 80 | 3 | 1134 | Standard | Made To Order | 23 kg CO2 m² |
Made to stock: Item is in stock and available for delivery.
Made to order: Item will be manufactured when the order has been placed, lead times vary dependent on product.
Product Details - Keyblok Pencil Edge
| Product Name | id | Plan Size (mm) | Length (mm) | Width (mm) | Depth (mm) | Approx Unit Weight (kg) | Approx Pack Weight (kg) | Pack Size (m²) | Finish | Made to Stock / Made to Order | Carbon Footprint |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Keyblok Pencil Edge 200 x 100 x 60 Natural | PV2200250 | 200 x 100 | 200 | 100 | 60 | 2.8 | 1120 | 8.08 | Standard | Made To Stock | 15 kg CO2 m² |
| Keyblok Pencil Edge 200 x 100 x 60 Charcoal | PV2200500 | 200 x 100 | 200 | 100 | 60 | 2.8 | 1120 | 8.08 | Standard | Made To Order | 15 kg CO2 m² |
| Keyblok Pencil Edge 200 x 100 x 60 Brindle | PV2201750 | 200 x 100 | 200 | 100 | 60 | 2.8 | 1120 | 8.08 | Standard | Made To Order | 15 kg CO2 m² |
| Keyblok Pencil Edge 200 x 100 x 80 Natural | PV5200250 | 200 x 100 | 200 | 100 | 80 | 3.7 | 1134 | 6.16 | Standard | Made To Order | 20 kg CO2 m² |
| Keyblok Pencil Edge 200 x 100 x 80 Brindle | PV5201750 | 200 x 100 | 200 | 100 | 80 | 3.7 | 1134 | 6.16 | Standard | Made To Order | 20 kg CO2 m² |
| Keyblok Pencil Edge 200 x 100 x 80 Charcoal | PV5200500 | 200 x 100 | 200 | 100 | 80 | 3.7 | 1134 | 6.16 | Standard | Made To Stock | 20 kg CO2 m² |
| Keyblok Pencil Edge 80 Bracken | PV5202250 | 200 x 100 | 200 | 100 | 80 | 3.7 | 1134 | 6.16 | Standard | Made To Order | 20 kg CO2 m² |
Made to stock: Item is in stock and available for delivery.
Made to order: Item will be manufactured when the order has been placed, lead times vary dependent on product.
Product Details - Keyblok Vintage
| Product Name | id | Plan Size (mm) | Length (mm) | Width (mm) | Depth (mm) | Approx Unit Weight (kg) | Approx Pack Weight (kg) | Pack Size (m²) | Finish | Made to Stock / Made to Order | Carbon Footprint |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Keyblok Vintage 200 x 100 x 60 Charcoal | PV2059100 | 200 x 100 | 200 | 100 | 60 | 2.6 | 1080 | 8.08 | Aged | Made To Order | 15 kg CO2 m² |
| Keyblok Vintage 200 x 100 x 60 Brindle | PV2059600 | 200 x 100 | 200 | 100 | 60 | 2.6 | 1080 | 8.08 | Aged | Made To Stock | 15 kg CO2 m² |
| Keyblok Vintage 200 x 100 x 60 Burnt Ochre | PV2059700 | 200 x 100 | 200 | 100 | 60 | 2.6 | 1080 | 8.08 | Aged | Made To Order | 15 kg CO2 m² |
| Keyblok Vintage 200 x 100 x 80 Charcoal | PV5059100 | 200 x 100 | 200 | 100 | 80 | 3.5 | 1080 | 6.16 | Aged | Made To Order | 20 kg CO2 m² |
| Keyblok Vintage 200 x 100 x 80 Brindle | PV5059600 | 200 x 100 | 200 | 100 | 80 | 3.5 | 1080 | 6.16 | Aged | Made To Order | 20 kg CO2 m² |
| Keyblok Vintage 200 x 100 x 80 Burnt Ochre | PV5059700 | 200 x 100 | 200 | 100 | 80 | 3.5 | 1080 | 6.16 | Aged | Made To Order | 20 kg CO2 m² |
| Keyblok Vintage 200 x 100 x 80 Bracken | PV5059800 | 200 x 100 | 200 | 100 | 80 | 3.5 | 1080 | 6.16 | Aged | Made To Order | 20 kg CO2 m² |
Made to stock: Item is in stock and available for delivery.
Made to order: Item will be manufactured when the order has been placed, lead times vary dependent on product.

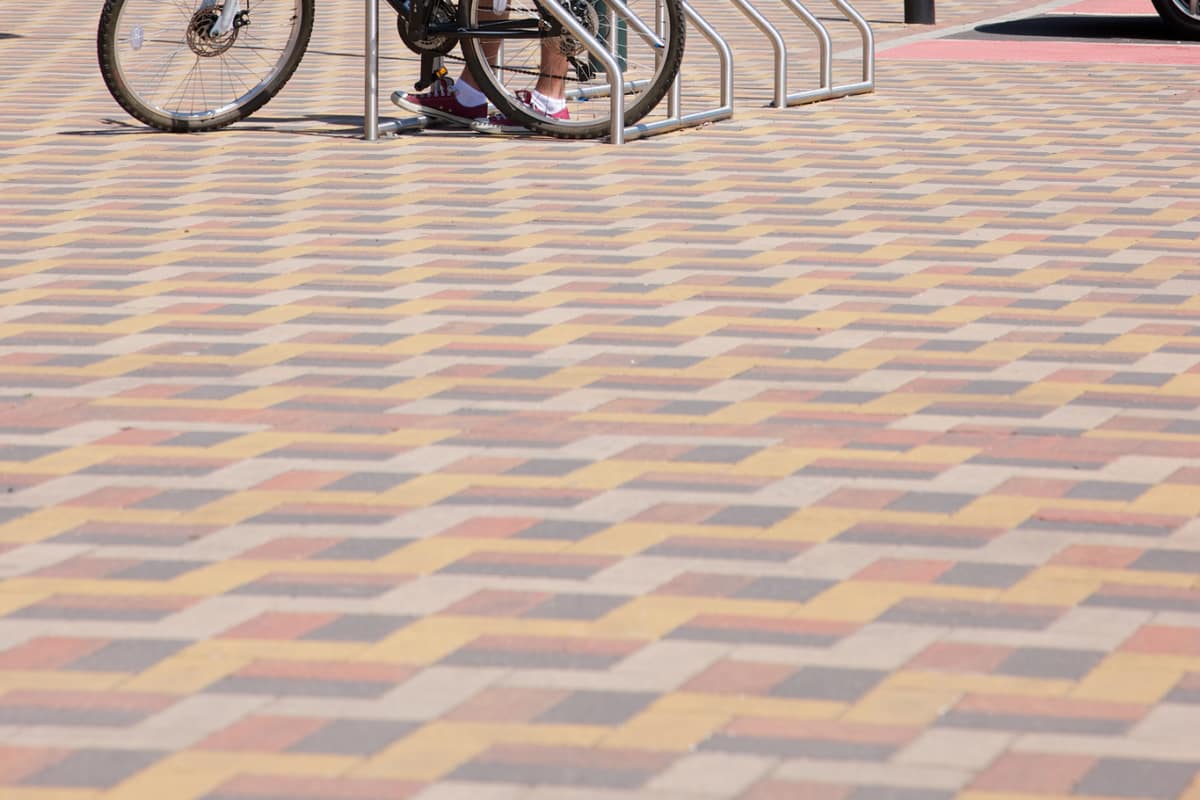

keyblok - brindle buff charcoal and natural cleveland

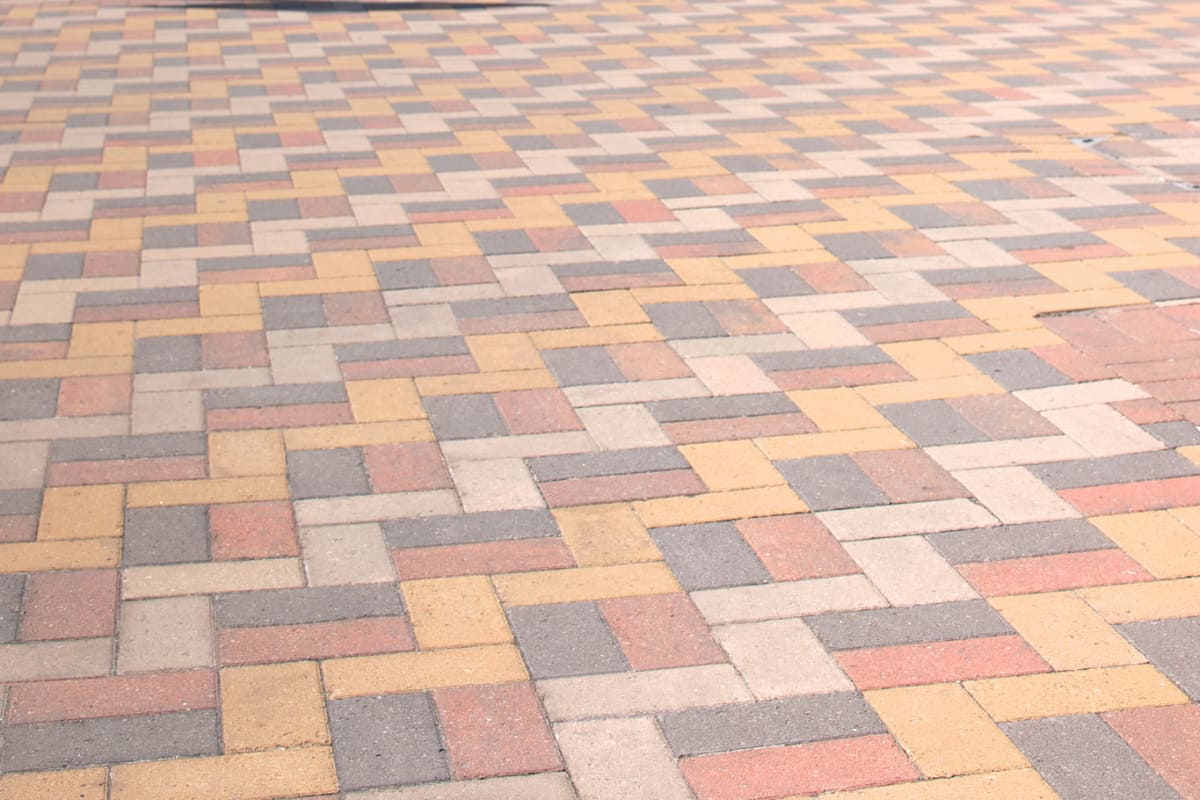

keyblok - brindle buff charcoal and natural cleveland
keyblok colourtop black and white crossing
keyblok colourtop white and yellow
Keyblok Paving BIM Model
At Marshalls we work alongside appropriate guidelines in which we are able to provide high quality 3D objects of our products that contain rich data to satisfy that information required by our clients.
We strive to improve the relationship with stakeholders and the BIM process enables us to share the relevant information.
- Our BIM models are available to download directly from our BIM library.
- We have a range of models available in AutoDesk Revit format including CoBie, IFC and NBS data.
