Metrolinia Corner Block

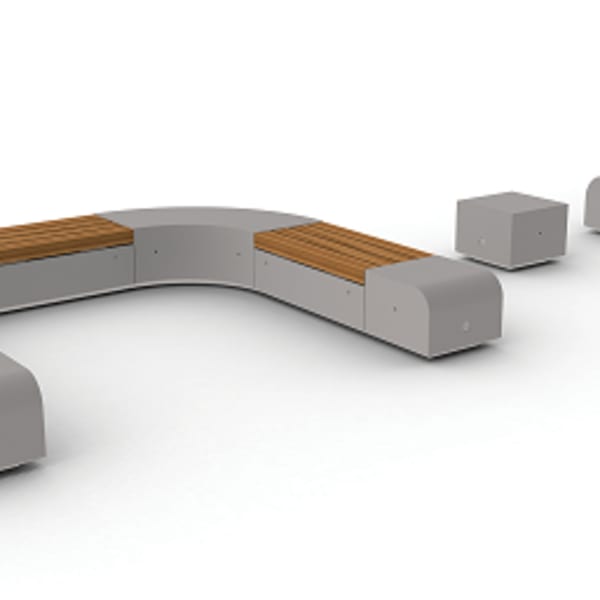

Available in precast concrete manufactured in the UK, or natural stone, the Metrolinia Corner Block forms part of a range of building blocks which allow designers to create a variety of seating configurations, supporting the desire to create sociable spaces, where people want to relax and spend time.

The transition module can be combined to navigate corners, changing the directional flow in a configuration whilst offering the capability of achieving a range of designs in order to suit the individual environment.

The Metrolinia range is available in a variety of colour options in either concrete, sandstone or granite.

The modules can also be tailored around specific bespoke requirements. Get in touch for more information.

  • Contemporary yet timeless design
  • Limitless configurations achievable
  • Available in natural stone or concrete to suit a range of projects
  • Offered in a choice of colour variations
  • Surface mounted, anchored design, limiting the disruption during installation
  • Intermediate modules can be used as standalone pieces

Price Range

  • £
  • £
  • £

NBSPlus Codes

Q50 Site/street furniture/equipment

Division

Contact

01422 312993

landscapeprotection@marshalls.co.uk

Certifications, Accreditations & Credentials

  • Accreditation Made in Britain Logo
  • Accreditation Marshalls certified ISO 9001 quality management systems FM 00004 Logo
  • Accreditation Marshalls certified ISO 14001 environmental management EMS 56194 Logo
  • Accreditation Marshalls certified ISO 45001 occupational health and safety management OHS 69609 Logo
  • Accreditation GlobalCompact Logo
  • Accreditation 2019 superbrands logo Logo
  • Accreditation Living wage Logo
  • Accreditation Fair Tax logo Logo
  • Accreditation Business in the community logo Logo
Product Name Material Body/Frame Colour Length (mm) Width (mm) Overall Height (mm) Seat Height (mm) Weight (kg) Fixing Method
Metrolinia Corner Block Concrete Concrete Anthracite, city grey, city silver grey 600 600 456 456 382 Surface mounted and secured with M12 stud bar pins
Metrolinia Corner Block Callisto Granite Natural stone, Granite Callisto 600 600 456 456 450 Surface mounted and secured with M12 stud bar pins
Metrolinia Corner Block Umbriel Granite Natural stone, Granite Umbriel 600 600 456 456 420 Surface mounted and secured with M12 stud bar pins
Metrolinia Corner Block Brackendale Sandstone Natural stone, Sandstone Brackendale 600 600 456 456 410 Surface mounted and secured with M12 stud bar pins
Metrolinia Corner Block Brownridge Sandstone Natural stone, Sandstone Brownridge 600 600 456 456 415 Surface mounted and secured with M12 stud bar pins
Metrolinia Corner Block Laurel Bank Sandstone Natural stone, Sandstone Laurel Bank 600 600 456 456 410 Surface mounted and secured with M12 stud bar pins
Metrolinia Corner Block Sander Red Sandstone Natural stone, Sandstone Sander Red 600 600 456 456 420 Surface mounted and secured with M12 stud bar pins
Metrolinia Corner Block Thornlake Sandstone Natural stone, Sandstone Thornlake 600 600 456 456 415 Surface mounted and secured with M12 stud bar pins
Metrolinia Corner Block BIM Model

Metrolinia Corner Block BIM Model

At Marshalls we work alongside appropriate guidelines in which we are able to provide high quality 3D objects of our products that contain rich data to satisfy that information required by our clients.

We strive to improve the relationship with stakeholders and the BIM process enables us to share the relevant information.

  • Our BIM models are available to download directly from our BIM library.
  • We have a range of models available in AutoDesk Revit format including CoBie, IFC and NBS data.
