Tactile Hazard Warning Paving
Designed to warn users of potential hazards in the immediate vicinity and to proceed with caution, Hazard Warning Tactile Flag Paving features a raised striped pattern which runs across its surface.
Also referred to as Corduroy paving, this product should be used in accordance with The Disabled Persons Act 1981 and DDA 2004. Hazard Warning Tactile Flag Paving is for use at the top and bottom of steps, level crossings and intersections of shared cycle/pedestrian routes. It should be installed at 90 degrees and 400mm from any potential hazards.
This product is available in a range of colour options - Red, Buff, Natural and Charcoal. Buff and Natural are also available as textured paving. Two different plan sizes feature in the range, 400 x 400mm and 450 x 450mm.
- Fully DDA compliant
- Alerts the visually impaired to nearby hazards
- Available in 4 colours
- Two size options
Price Range
- £
- £
- £
Maximum Loading Classification i✕This is the maximum loading for the product.
However this is subject to using the appropriate installation method, bond pattern and the sub-base design.
For tailored support with a pavement design, please contact us:
grouptechnicalservices@marshalls.co.uk
However this is subject to using the appropriate installation method, bond pattern and the sub-base design.
For tailored support with a pavement design, please contact us:
grouptechnicalservices@marshalls.co.uk
Category 5 - 0.05msa Pedestrian areas subjected to occasional overrun of commercial vehicles. Car parks receiving occasional commercial vehicular traffic.
NBSPlus Codes
Q25 320
Carbon Footprint
From 13 kg CO2 per m²
Technical Downloads (3)
- tactile hazard warning 400 x 400 x 50 datasheet Download tactile hazard warning 400 x 400 x 50 datasheet
- tactile hazard warning 450 x 450 x 50 datasheet Download tactile hazard warning 450 x 450 x 50 datasheet
Certifications, Accreditations & Credentials
Datasheets
- tactile hazard warning 400 x 400 x 50 datasheet Download tactile hazard warning 400 x 400 x 50 datasheet
- tactile hazard warning 450 x 450 x 50 datasheet Download tactile hazard warning 450 x 450 x 50 datasheet
- tactile hazard warning textured 400 x 400 x 50 datasheet Download tactile hazard warning textured 400 x 400 x 50 datasheet
Product Details
| Product Name | id | Length (mm) | Width (mm) | Thickness (mm) | Approx Unit Weight (kg) | Approx Pack Weight (kg) | Pack Size (m²) | Finish | Made to Stock / Made to Order | Carbon Footprint |
|---|---|---|---|---|---|---|---|---|---|---|
| Tactile Hazard Warning 400 x 400 x 50 Natural | FL6180550 | 400 | 400 | 50 | 19 | 684 | 5.8 | Standard Concrete | Made To Order | 13 kg CO2 m² |
| Tactile Hazard Warning 400 x 400 x 50 Buff | FL6181050 | 400 | 400 | 50 | 19 | 684 | 5.8 | Standard Concrete | Made To Stock | 13 kg CO2 m² |
| Tactile Hazard Warning 400 x 400 x 50 Red | FL6181550 | 400 | 400 | 50 | 19 | 684 | 5.8 | Standard Concrete | Made To Order | 13 kg CO2 m² |
| Tactile Hazard Warning 400 x 400 x 50 Charcoal | FL6182550 | 400 | 400 | 50 | 19 | 684 | 5.8 | Standard Concrete | Made To Stock | 13 kg CO2 m² |
| Tactile Hazard Warning 450 x 450 x 50 Natural | FL6180500 | 450 | 450 | 50 | 23 | 920 | 8.1 | Standard Concrete | Made To Order | 13 kg CO2 m² |
| Tactile Hazard Warning Textured 400 x 400 x 50 Natural | FL6184550 | 400 | 400 | 50 | 19 | 684 | 5.8 | Standard Concrete | Made To Order | 13 kg CO2 m² |
| Tactile Hazard Warning Textured 400 x 400 x 50 Charcoal | FL6186550 | 400 | 400 | 50 | 19 | 684 | 5.8 | Standard Concrete | Made To Order | 13 kg CO2 m² |
Made to stock: Item is in stock and available for delivery.
Made to order: Item will be manufactured when the order has been placed, lead times vary dependent on product.

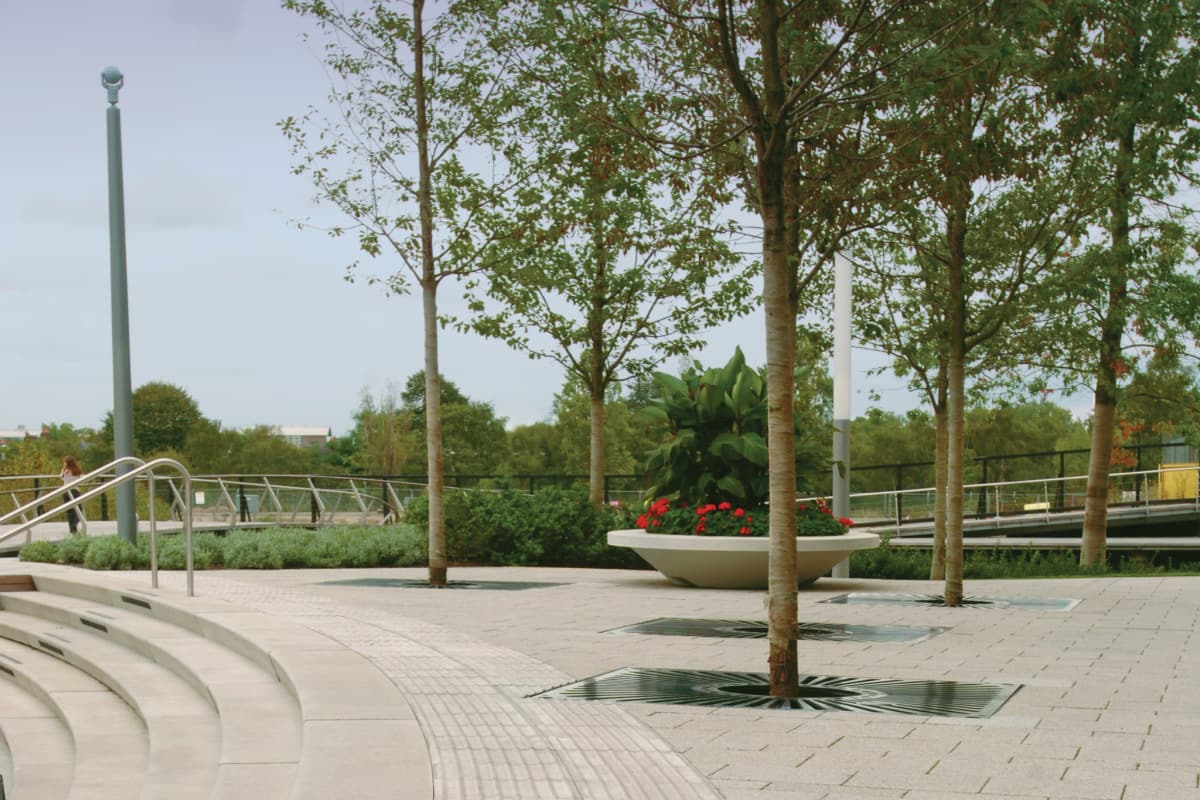

hazard warning natural chiswick park london
Tactile Hazard Warning Paving BIM Model
At Marshalls we work alongside appropriate guidelines in which we are able to provide high quality 3D objects of our products that contain rich data to satisfy that information required by our clients.
We strive to improve the relationship with stakeholders and the BIM process enables us to share the relevant information.
- Our BIM models are available to download directly from our BIM library.
- We have a range of models available in AutoDesk Revit format including CoBie, IFC and NBS data.
