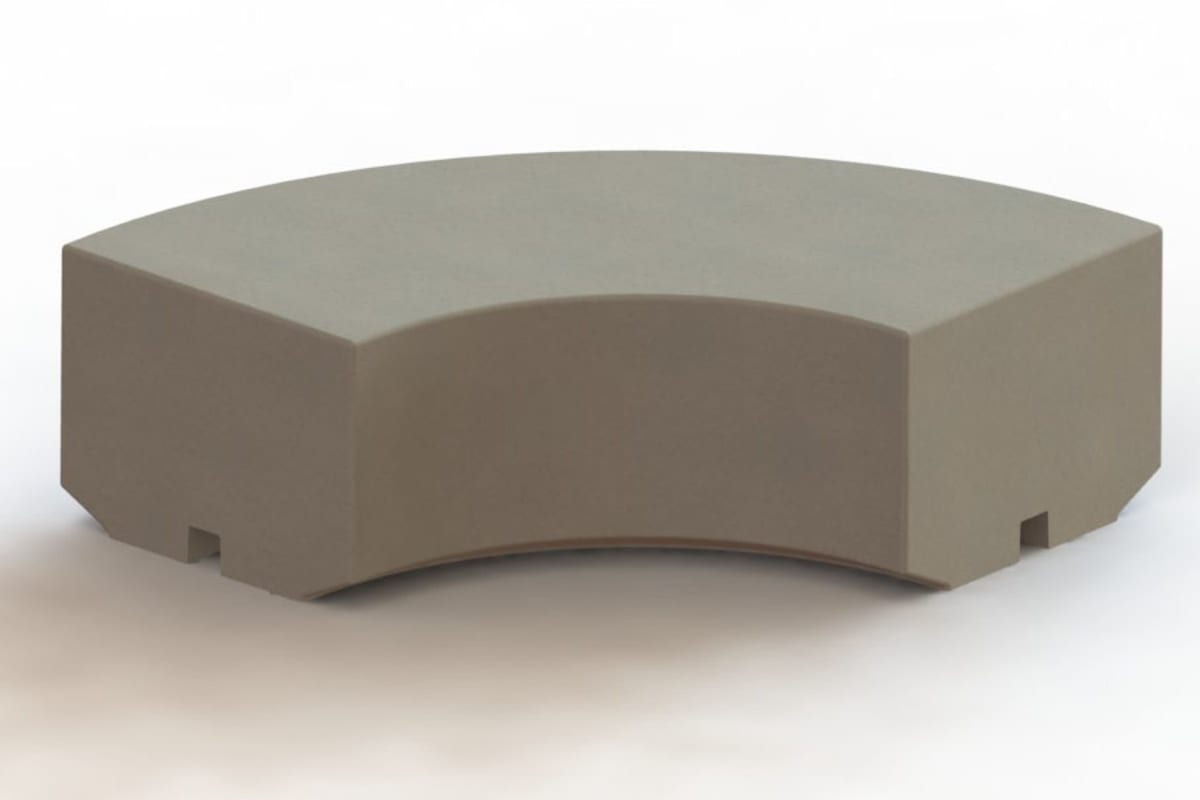

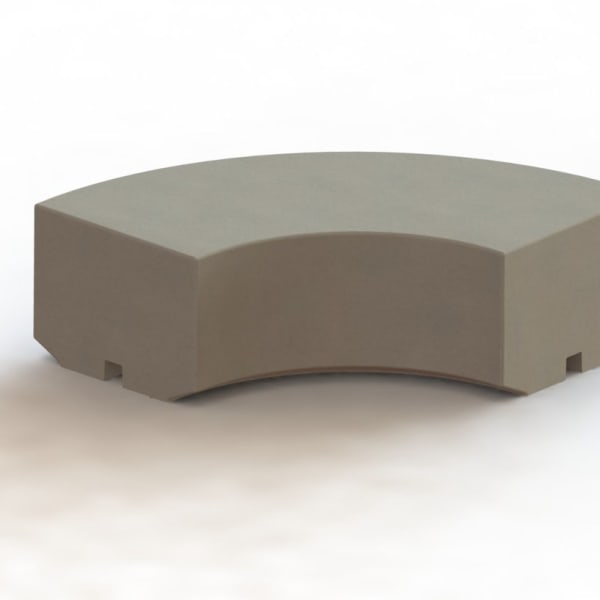

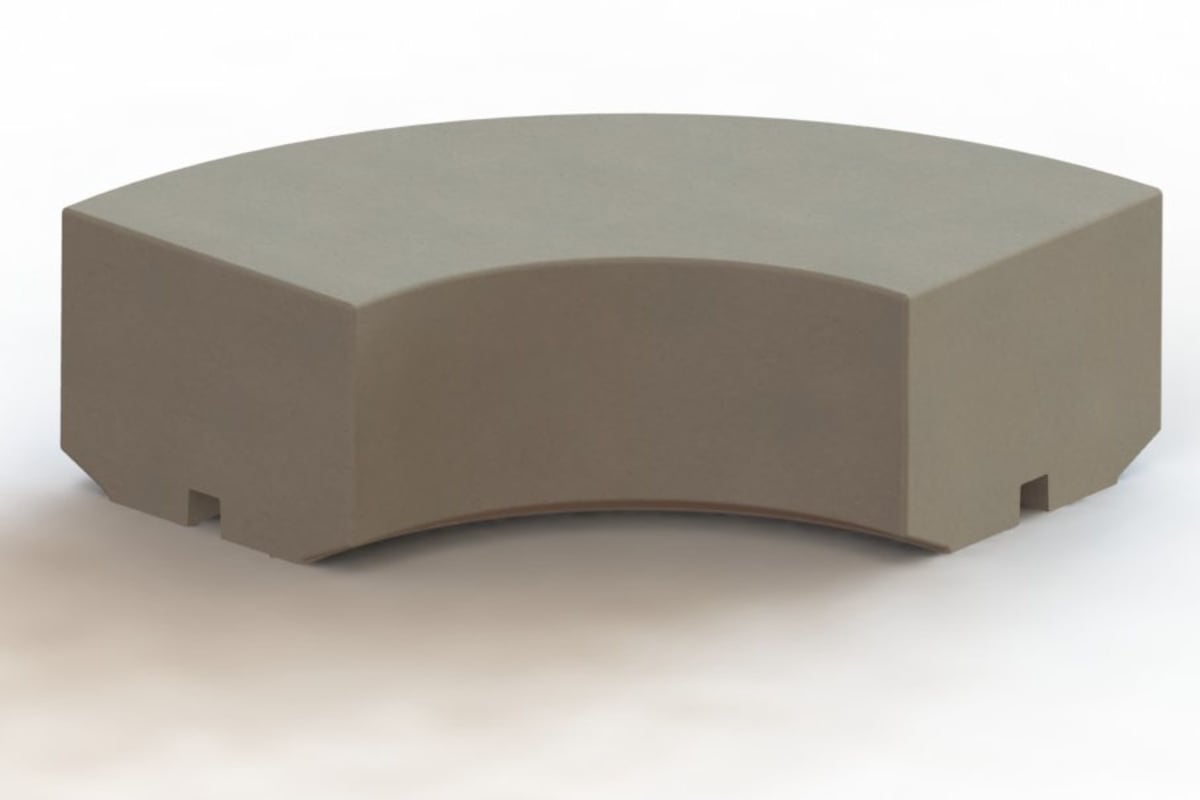

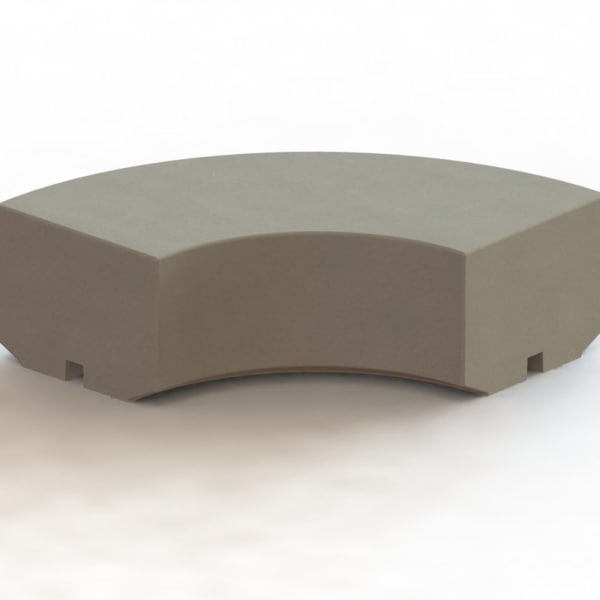

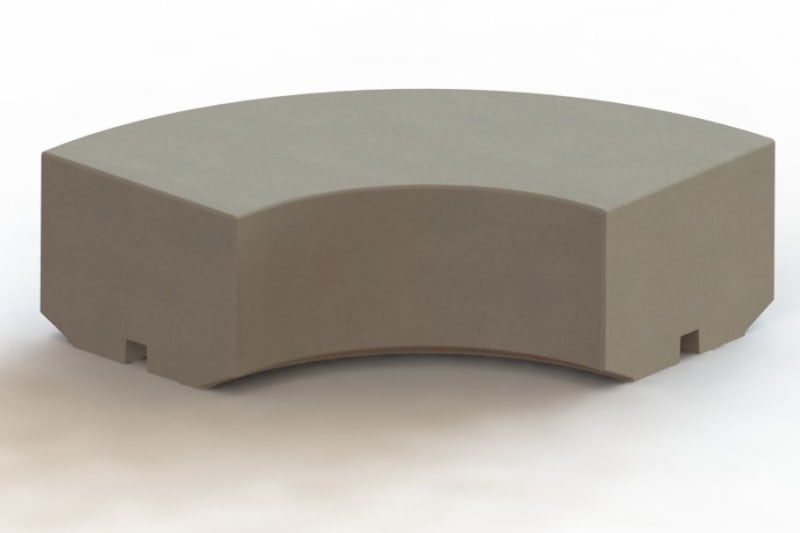

Metrolinia Radius Corner Block
Available in precast concrete manufactured in the UK, or natural stone, the Metrolinia Radius Corner Block forms part of a range of building blocks which allow designers to create a variety of seating configurations, supporting the desire to create sociable spaces, where people want to relax and spend time.
The Radius Corner Block can be combined to navigate corners, changing the directional flow in a configuration whilst offering the capability of achieving a range of designs in order to suit the individual environment.
The Metrolinia range is available in a variety of colour options in either concrete, sandstone or granite.
The modules can also be tailored around specific bespoke requirements. Get in touch for more information.
- Contemporary yet timeless design
- Limitless configurations achievable
- Available in natural stone or concrete to suit a range of projects
- Offered in a choice of colour variations
- Surface mounted, anchored design, limiting the disruption during installation
- Intermediate modules can be used as standalone pieces
Price Range
- £
- £
- £
NBSPlus Codes
Q50 Site/street furniture/equipment
Division
Contact
01422 312993
Technical Downloads (1)
- Marshalls Metrolina Modular Concrete Seating Download Marshalls Metrolina Modular Concrete Seating
Certifications, Accreditations & Credentials
Sketch Up Files
- Marshalls Metrolina Modular Concrete Seating Download Marshalls Metrolina Modular Concrete Seating
Product Details
| Product Name | Material | Body/Frame Colour | Length (mm) | Width (mm) | Overall Height (mm) | Seat Height (mm) | Weight (kg) | Fixing Method |
|---|---|---|---|---|---|---|---|---|
| Metrolinia Radius Corner Block Concrete | Concrete | Anthracite, city grey, city silver grey | 1200 | 1200 | 456 | 456 | 904 | Surface mounted and secured with M12 stud bar pins |
| Metrolinia Radius Corner Block Callisto Granite | Natural stone, Granite | Callisto | 1200 | 1200 | 456 | 456 | 1070 | Surface mounted and secured with M12 stud bar pins |
| Metrolinia Radius Corner Block Umbriel Granite | Natural stone, Granite | Umbriel | 1200 | 1200 | 456 | 456 | 1000 | Surface mounted and secured with M12 stud bar pins |
| Metrolinia Radius Corner Block Brackendale Sandstone | Natural stone, Sandstone | Brackendale | 1200 | 1200 | 456 | 456 | 970 | Surface mounted and secured with M12 stud bar pins |
| Metrolinia Radius Corner Block Brownridge Sandstone | Natural stone, Sandstone | Brownridge | 1200 | 1200 | 456 | 456 | 985 | Surface mounted and secured with M12 stud bar pins |
| Metrolinia Radius Corner Block Laurel Bank Sandstone | Natural stone, Sandstone | Laurel Bank | 1200 | 1200 | 456 | 456 | 970 | Surface mounted and secured with M12 stud bar pins |
| Metrolinia Radius Corner Block Sander Red Sandstone | Natural stone, Sandstone | Sander Red | 1200 | 1200 | 456 | 456 | 1000 | Surface mounted and secured with M12 stud bar pins |
| Metrolinia Radius Corner Block Thornlake Sandstone | Natural stone, Sandstone | Thornlake | 1200 | 1200 | 456 | 456 | 980 | Surface mounted and secured with M12 stud bar pins |
Metrolinia Radius Corner Block BIM Model
At Marshalls we work alongside appropriate guidelines in which we are able to provide high quality 3D objects of our products that contain rich data to satisfy that information required by our clients.
We strive to improve the relationship with stakeholders and the BIM process enables us to share the relevant information.
- Our BIM models are available to download directly from our BIM library.
- We have a range of models available in AutoDesk Revit format including CoBie, IFC and NBS data.
