Pre-Cast Reinforced Concrete Ramp System

For a speed reduction and traffic calming solution, the Pre-Cast Reinforced Concrete Ramp System from Marshalls offers a simple and hard-wearing design for improving road safety.

Planar and Sinusoidal profiles are both available, created in accordance with UK Highway Regulations and Traffic Advisory Leaflets.

The former has a single plane and is an ideal application where a larger speed reduction is required, as it’s more comfortable for drivers at slower speeds. With a length of 1200mm and a range of widths from 900 to 1500mm, the weight of the units vary from 610 to 1120kg – all substantial enough to stand up to fast moving and heavy traffic.

By contrast, the Sinusoidal System is perfect for roads with plentiful bus traffic, as the profile and textured finish provide a smoother ride for heavy vehicles and their passengers.

  • Easy to install
  • Suitable for heavy traffic
  • Range of widths available from 900mm to 1500mm
  • Create in accordance with relevant road hump legislation

Price Range

  • £
  • £
  • £

Carbon Footprint

Available on Request

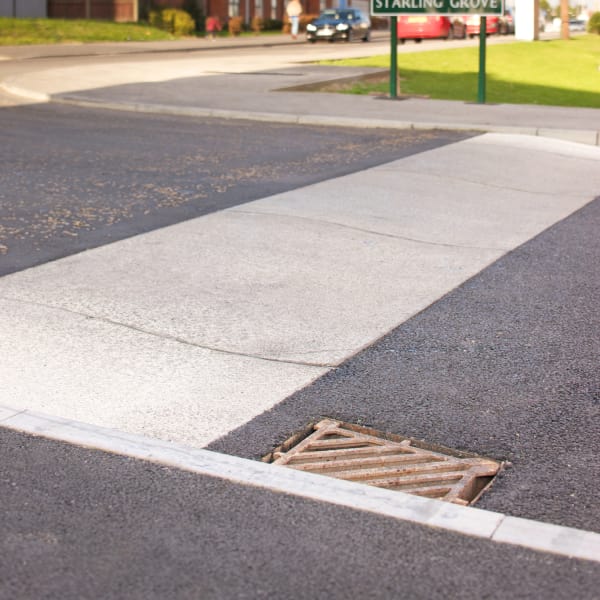

sinusoidal traffic ramp

Certification Logos and Accreditations

  • Accreditation Made in Britain Logo
  • Accreditation BSB Blue Stamp 2018 Logo
  • Accreditation BSI Assurance Mark ISO 9001 KEYB Logo
  • Accreditation BSI Assurance Mark ISO 14001 KEYB Logo
  • Accreditation BSI Assurance Mark OHS 18001 KEYB Logo
  • Accreditation BES 6001 Logo
  • Accreditation Living wage Logo
  • Accreditation Fair Tax logo Logo
  • Accreditation Business in the community logo Logo
  • Accreditation eti logo Logo
  • Accreditation UNGC Endorser Logo Logo
Product Name
TRAFFIC RAMP SINUSOIDAL 09 NAT
TRAFFIC RAMP SINUSOIDAL 10 NAT
TRAFFIC RAMP SINUSOIDAL 13 NAT
TRAFFIC RAMP SINUSOIDAL 14 NAT
